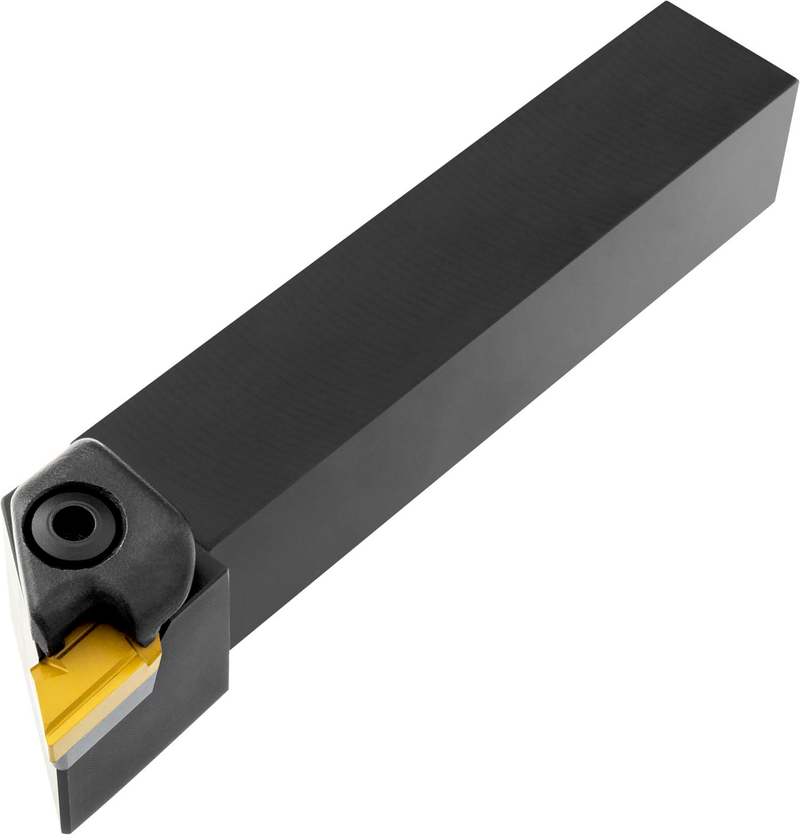

CKJNR 3225 P 16
CKJNR 3225 P 16

CKJNR 3225 P 16

UGC DOR6757224
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$262.00 CAD - $262.00 CAD
$262.00 CAD
$262.00 CAD - $262.00 CAD
$262.00 CAD

Vendu en lots de : 1

Outil de chariotage à brise-copeaux supérieur pour plaquette négative en parallélogramme 55° de diamètre de cercle inscrit 9.525mm, 4.76mm d'épaisseur (désignation ISO KN.X 1604…R), coupe à droite 93° avec un corps déporté, hauteur 32mm x largeur 25mm x longueur 170mm pour chanfreinage, tournage conique, chariotage de reproduction unidirectionnel et multidirectionnel et chariotage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CKJNR 3225 P 16
Product Number6757224
Product FamilyCKJN(RL) EXT

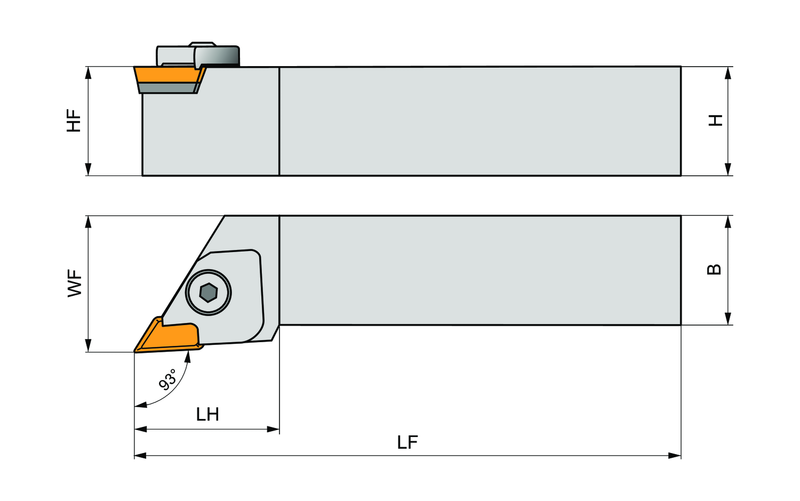

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757224
EAN3603602925800
File Type Download
CKJNR 3225 P 16 — Line Drawing PDF Download
