S16M-STFCL 11
S16M-STFCL 11
S16M-STFCL 11

S16M-STFCL 11

UGC DOR6757227
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

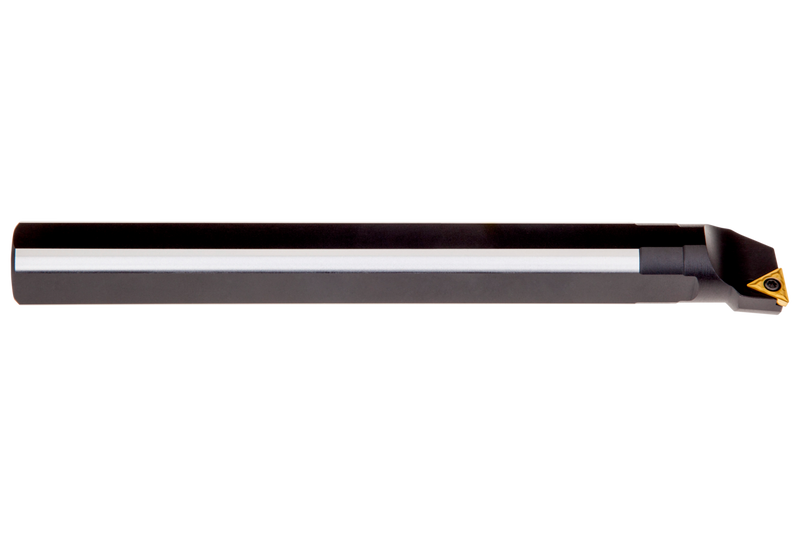

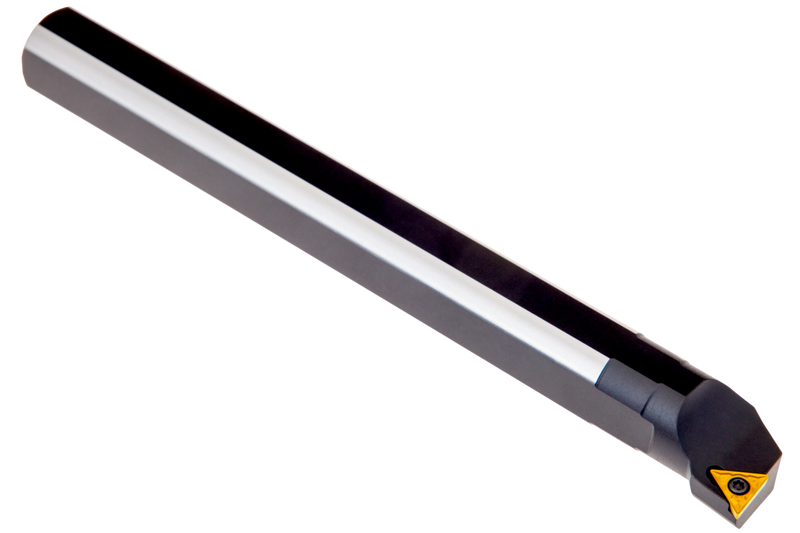

Barre d'alésage à bridage par vis pour plaquette triangulaire positive d'un diamètre de cercle inscrit de 6,35 mm, 2,38 mm d'épaisseur (désignation ISO TC... 1102...), coupe à gauche à 90° avec queue déportée, acier sans trou de liquide de refroidissement, 16 mm de diamètre x 150 mm de long pour l'alésage conique et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S16M-STFCL 11
Product Number6757227
Product FamilySTFC(RL) INT

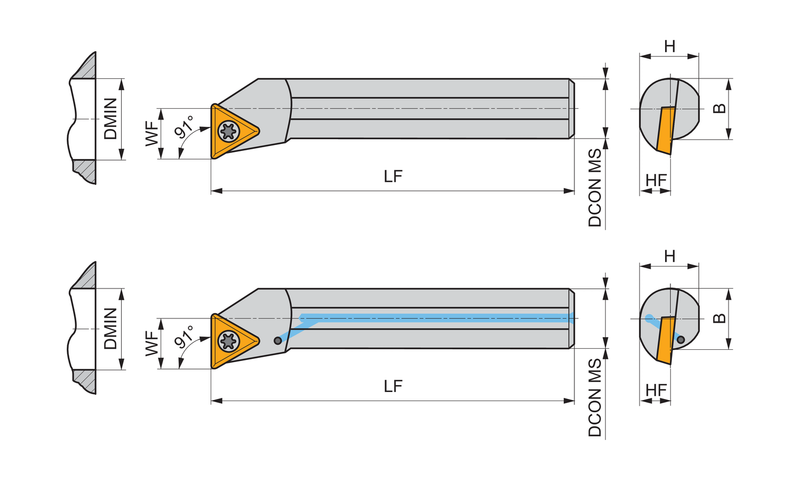

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.571 mm
Min. Bore Dia. — in (DMIN)0.787"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757227
EAN3603602925831
File Type Download
S16M-STFCL 11 — 3D Model STP Download
S16M-STFCL 11 — Line Drawing PDF Download
