A50U-PCLNR 19
A50U-PCLNR 19
A50U-PCLNR 19

A50U-PCLNR 19

UGC DOR6757228
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$608.00 CAD - $608.00 CAD
$608.00 CAD
$608.00 CAD - $608.00 CAD
$608.00 CAD

Vendu en lots de : 1

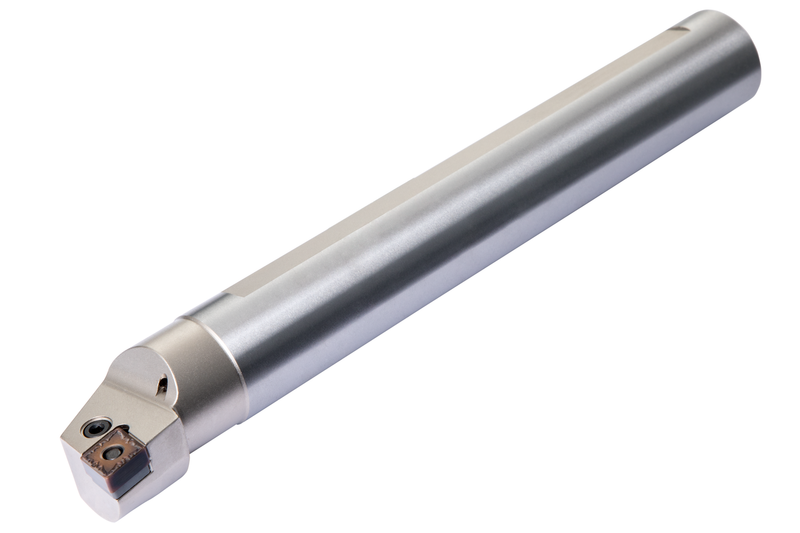

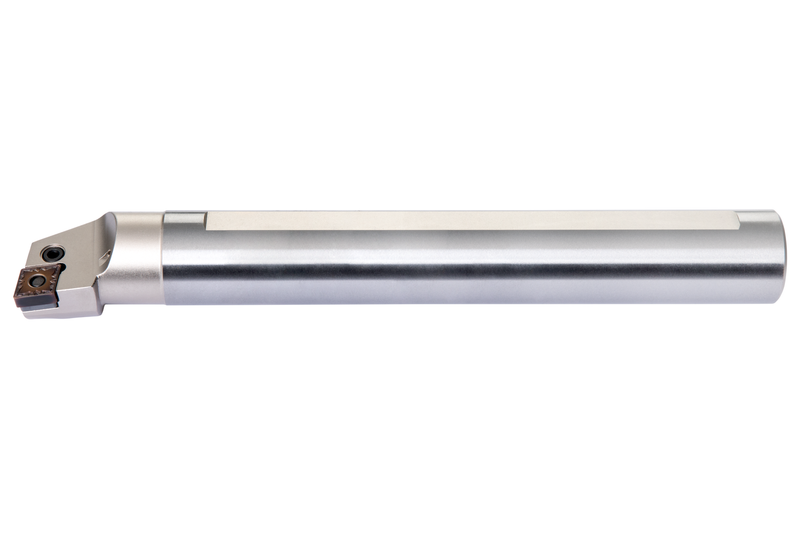

Alésoir à levier pour plaquette négative en forme de losange à 80° avec un cercle inscrit de 19,05 mm de diamètre et de 6,35 mm d'épaisseur (désignation ISO CN.. 1906..), coupe latérale et frontale à 95° à droite avec queue déportée, en acier avec trou d'arrosage, diamètre 50 mm x 350 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A50U-PCLNR 19
Product Number6757228
Product FamilyPCLN(RL) INT

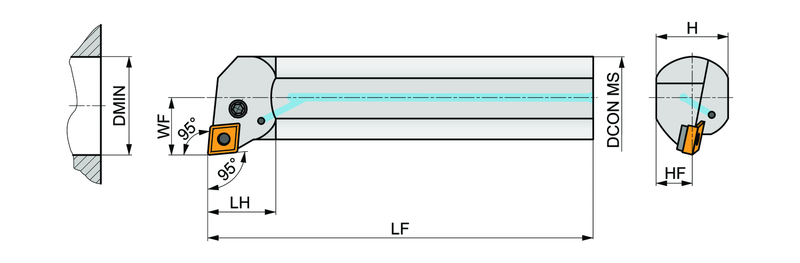

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Shank Height — mm (H)1.85 mm
Min. Bore Dia. — in (DMIN)2.48"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6757228
EAN3603602925848
File Type Download
A50U-PCLNR 19 — 3D Model STP Download
A50U-PCLNR 19 — 2D Model DXF Download
A50U-PCLNR 19 — Line Drawing PDF Download
