PTTNR 2525 M 16
PTTNR 2525 M 16
PTTNR 2525 M 16

PTTNR 2525 M 16

UGC DOR6757251
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

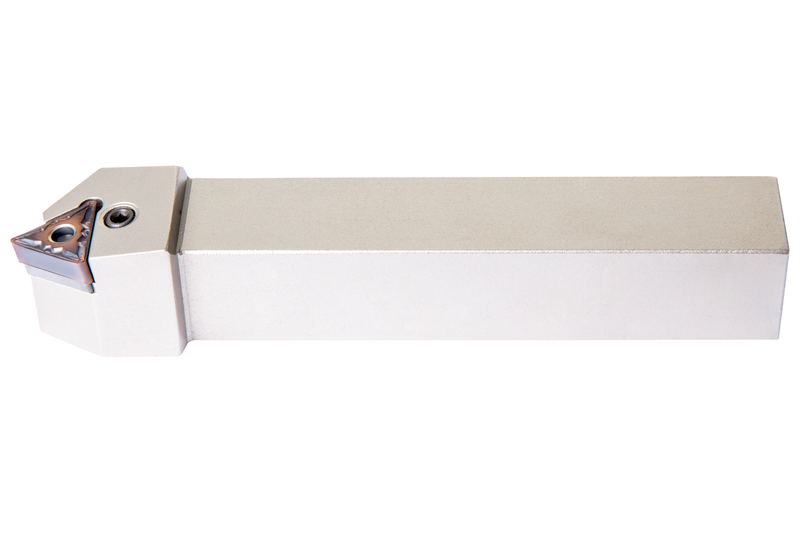

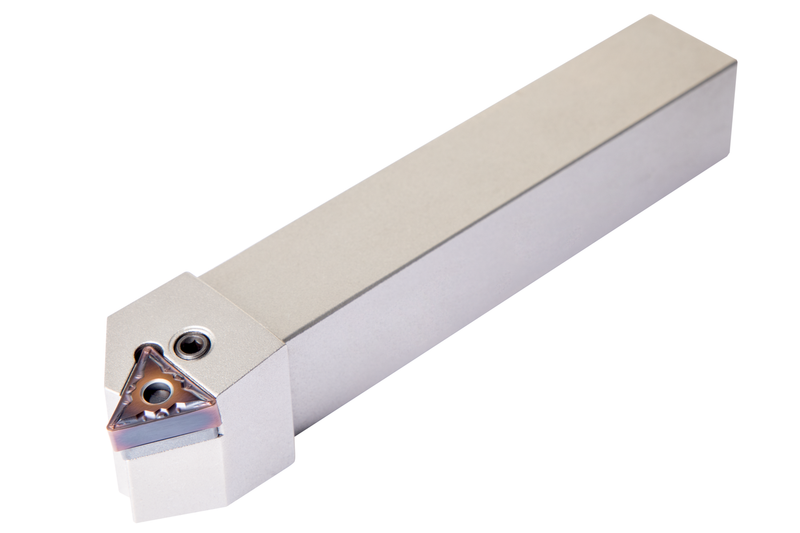

Outil de tournage à levier pour plaquette triangulaire négative avec diamètre de cercle inscrit de 9,525 mm, 4,76 mm d'épaisseur (désignation ISO TN... 1604...), coupe latérale droite à 60° avec queue déportée, hauteur d'outil de 25 mm x largeur de 25 mm x longueur de 150 mm pour le tournage conique et le tournage de reproduction unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PTTNR 2525 M 16
Product Number6757251
Product FamilyPTTN(RL) EXT

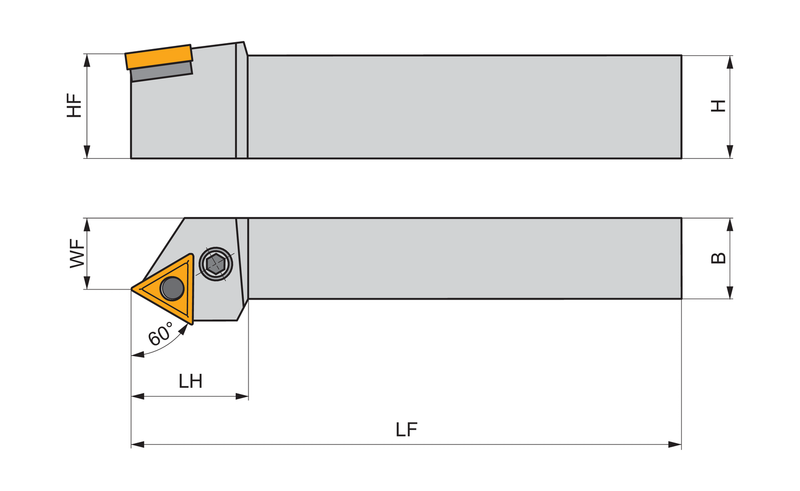

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757251
EAN3603602926074
File Type Download
PTTNR 2525 M 16 — 3D Model STP Download
PTTNR 2525 M 16 — 2D Model DXF Download
PTTNR 2525 M 16 — Line Drawing PDF Download
