A40T-PSKNR 15
A40T-PSKNR 15
A40T-PSKNR 15

A40T-PSKNR 15

UGC DOR6757309
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

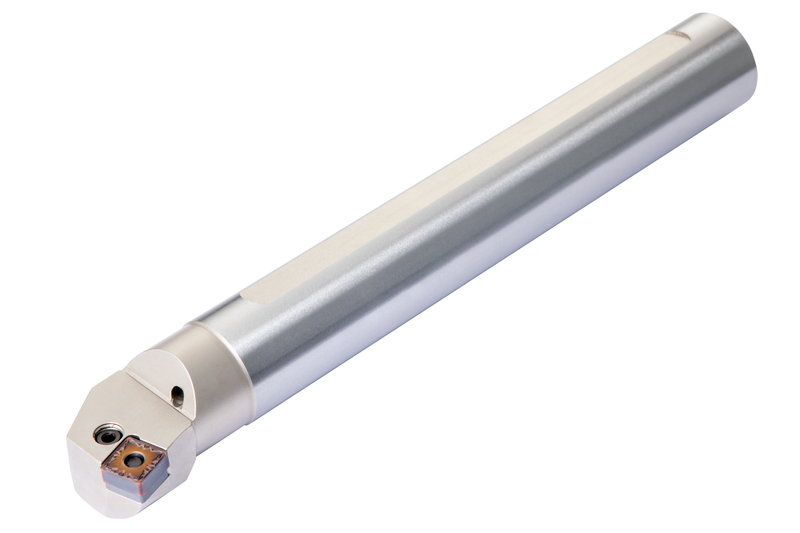

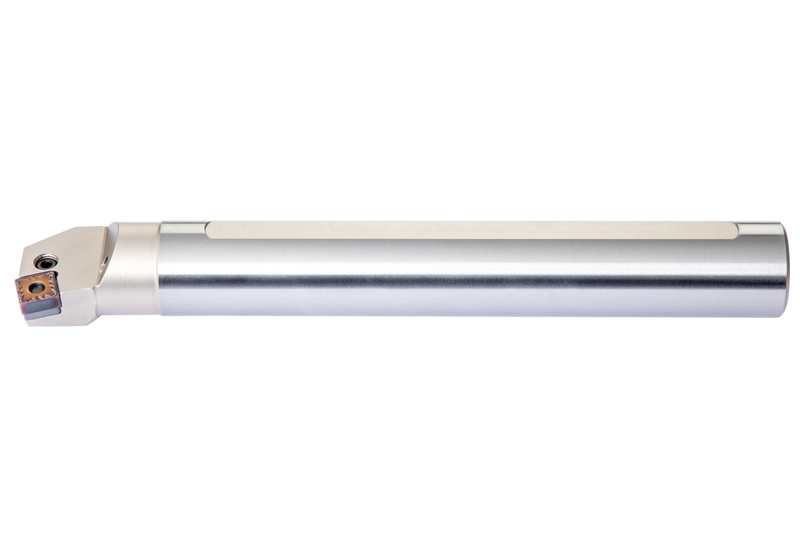

Alésoir à levier pour plaquette carrée négative avec un diamètre de cercle inscrit de 15,875mm, 6,35mm d'épaisseur (désignation ISO SN.. 1506..), coupe à droite 75° avec queue déportée, en acier avec trou d'arrosage, 40mm de diamètre x 300mm de long pour alésage conique et alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A40T-PSKNR 15
Product Number6757309
Product FamilyPSKN(RL) INT

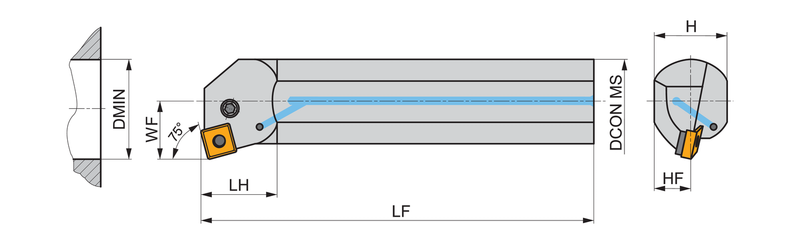

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Shank Height — mm (H)1.457 mm
Min. Bore Dia. — in (DMIN)1.89"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6757309
EAN3603602926654
File Type Download
A40T-PSKNR 15 — 3D Model STP Download
A40T-PSKNR 15 — Line Drawing PDF Download
