A50U-PSKNR 15
A50U-PSKNR 15
A50U-PSKNR 15

A50U-PSKNR 15

UGC DOR6757310
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$608.00 CAD - $608.00 CAD
$608.00 CAD
$608.00 CAD - $608.00 CAD
$608.00 CAD

Vendu en lots de : 1

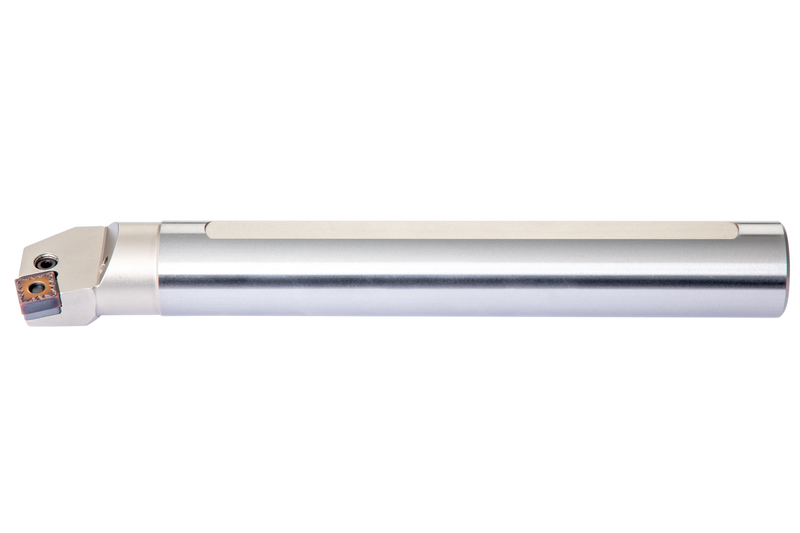

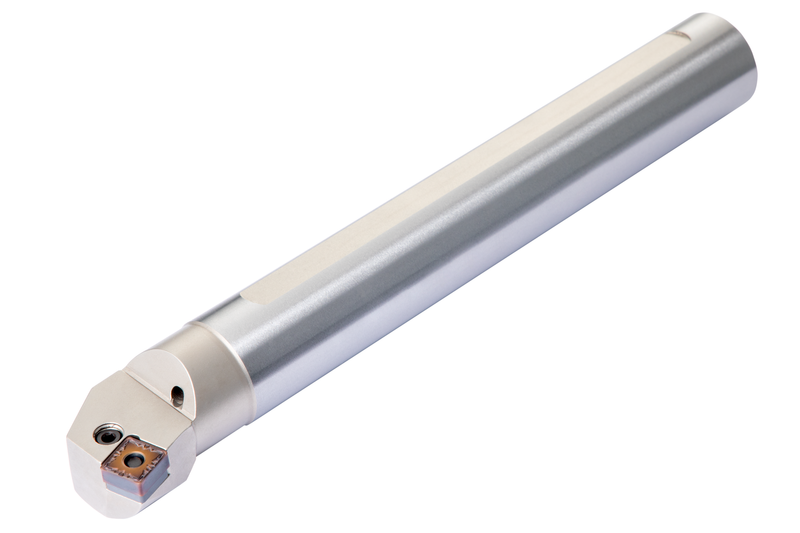

Barre d'alésage à levier pour insert carré négatif avec un diamètre de cercle inscrit de 15,875mm, 6,35mm d'épaisseur (désignation ISO SN.. 1506..), coupe d'extrémité droite à 75° avec queue déportée, en acier avec trou d'arrosage, 50mm de diamètre x 350mm de long pour l'alésage conique et l'alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A50U-PSKNR 15
Product Number6757310
Product FamilyPSKN(RL) INT

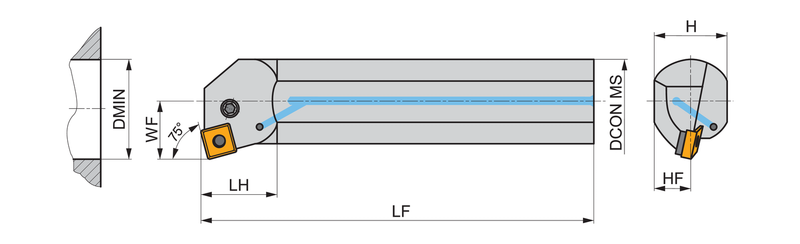

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Shank Height — mm (H)1.85 mm
Min. Bore Dia. — in (DMIN)2.402"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6757310
EAN3603602926661
File Type Download
A50U-PSKNR 15 — 3D Model STP Download
A50U-PSKNR 15 — 2D Model DXF Download
A50U-PSKNR 15 — Line Drawing PDF Download
