A50U-PSKNL 15

A50U-PSKNL 15

UGC DOR6757313
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$608.00 CAD - $608.00 CAD
$608.00 CAD
$608.00 CAD - $608.00 CAD
$608.00 CAD

Vendu en lots de : 1

Alésoir à levier pour plaquette carrée négative avec cercle inscrit de 15,875mm de diamètre, 6,35mm d'épaisseur (désignation ISO SN.. 1506..), coupe à gauche à 75° avec tige déportée, acier avec trou d'arrosage, 50mm de diamètre x 350mm de long pour alésage conique et longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A50U-PSKNL 15
Product Number6757313
Product FamilyPSCN(RL) INT

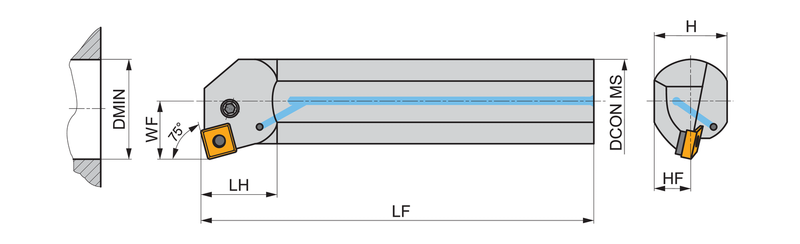

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Shank Height — mm (H)1.85 mm
Min. Bore Dia. — in (DMIN)2.402"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6757313
EAN3603602926692
File Type Download
A50U-PSKNL 15 — 3D Model STP Download
A50U-PSKNL 15 — 2D Model DXF Download
A50U-PSKNL 15 — Line Drawing PDF Download
