PCBNL 2020 K 12
PCBNL 2020 K 12
PCBNL 2020 K 12

PCBNL 2020 K 12

UGC DOR6757322
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.00 CAD - $156.00 CAD
$156.00 CAD
$156.00 CAD - $156.00 CAD
$156.00 CAD

Vendu en lots de : 1

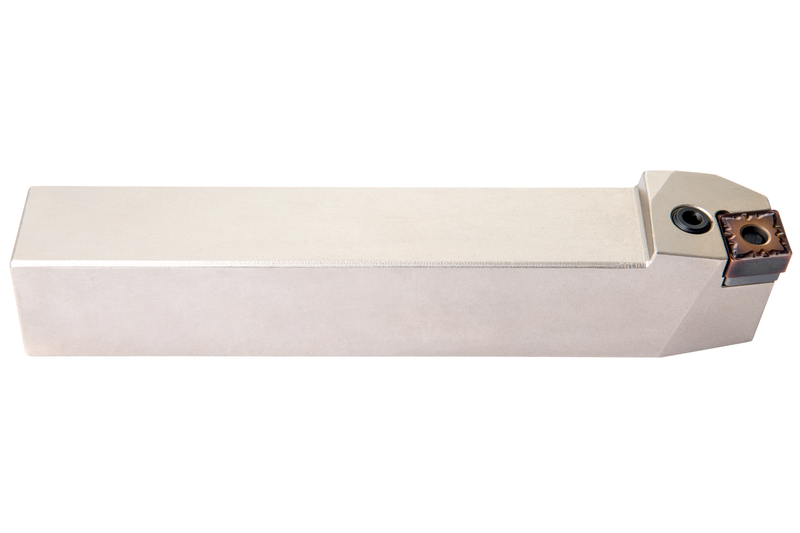

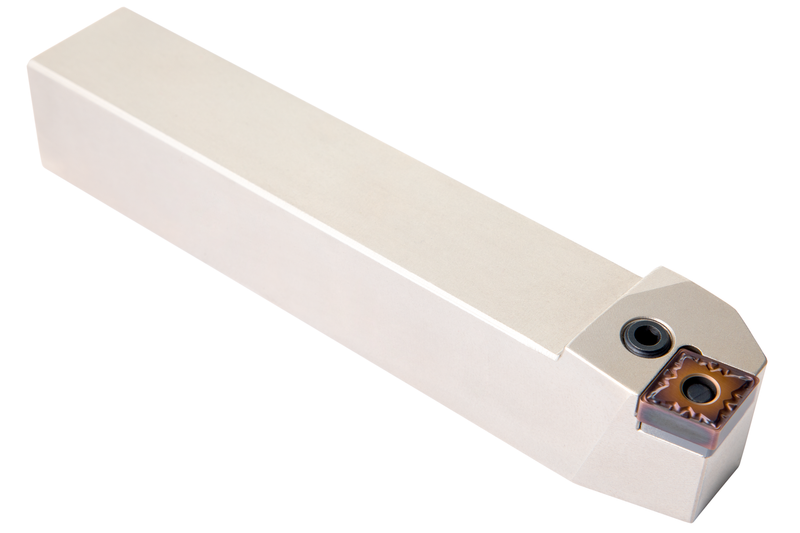

Outil à levier pour le serrage d'un insert négatif rhomboïde de 80° avec un diamètre de cercle inscrit de 12,7 mm, 4,76 mm d'épaisseur (désignation ISO CN.. 1204.. ), coupe latérale de 75° à gauche avec queue droite, hauteur d'outil 20 mm x largeur 20 mm x longueur 125 mm pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PCBNL 2020 K 12
Product Number6757322
Product FamilyPCBN(RL) EXT

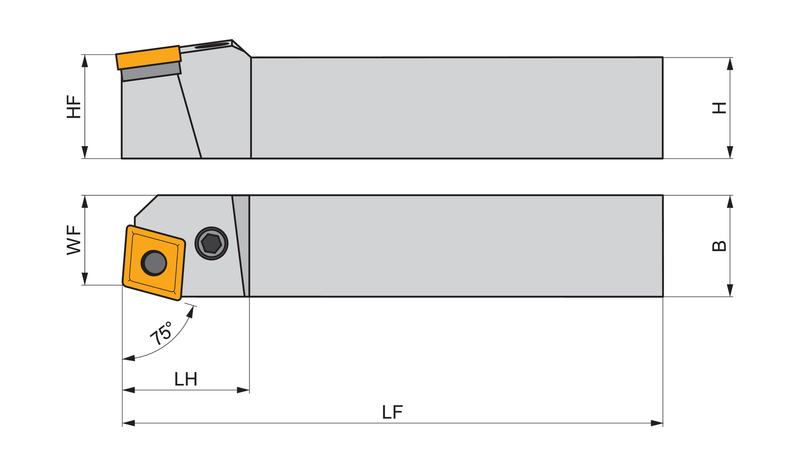

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757322
EAN3603602926784
File Type Download
PCBNL 2020 K 12 — 3D Model STP Download
PCBNL 2020 K 12 — 2D Model DXF Download
PCBNL 2020 K 12 — Line Drawing PDF Download
