A60V-PCLNR 16
A60V-PCLNR 16
A60V-PCLNR 16

A60V-PCLNR 16

UGC DOR6757324
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$721.00 CAD - $721.00 CAD
$721.00 CAD
$721.00 CAD - $721.00 CAD
$721.00 CAD

Vendu en lots de : 1

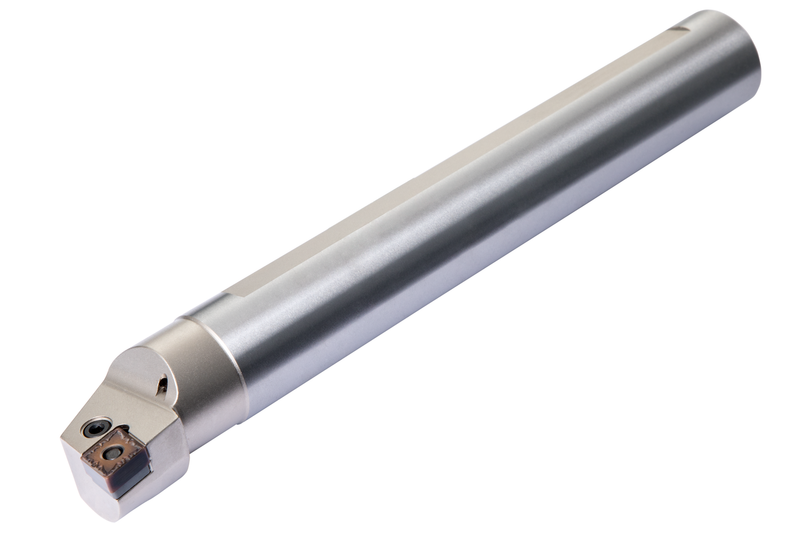

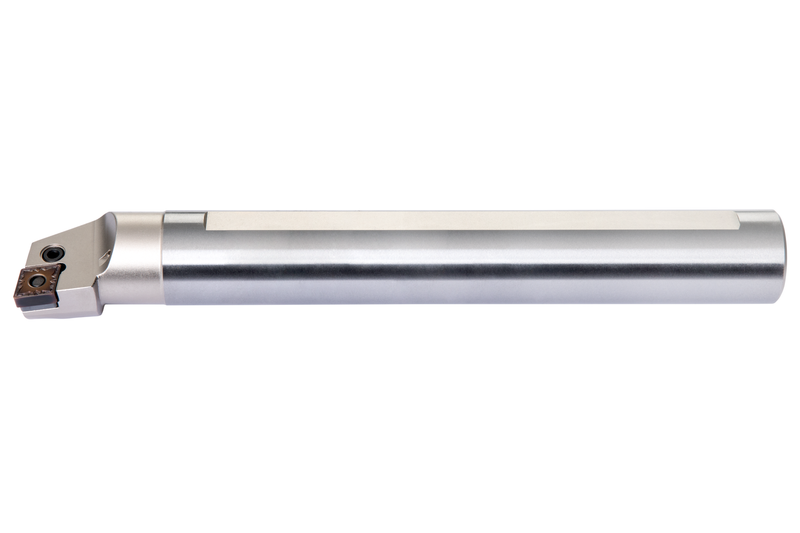

Barre d'alésage à blocage par levier pour insert négatif en losange à 80° avec un diamètre de cercle inscrit de 15,575mm, épaisseur de 6,35mm (désignation ISO CN.. 1606.. ), coupe latérale et frontale à 95° à droite avec queue déportée, acier avec trou d'arrosage, 60mm de diamètre x 400mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A60V-PCLNR 16
Product Number6757324
Product FamilyPCLN(RL) INT

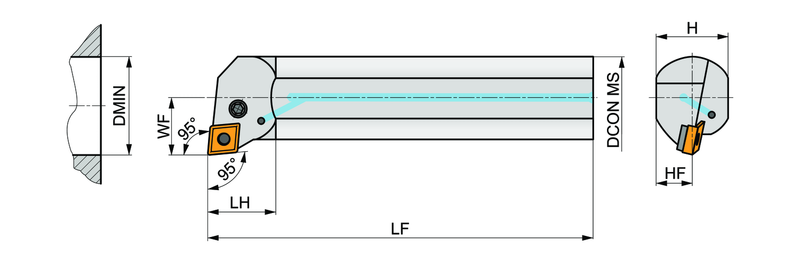

Dimensions
Functional Length — in (LF)15.748"
Functional Length — mm (LF)400.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Shank Height — mm (H)2.244 mm
Min. Bore Dia. — in (DMIN)3.15"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6757324
EAN3603602926807
File Type Download
A60V-PCLNR 16 — 3D Model STP Download
A60V-PCLNR 16 — 2D Model DXF Download
A60V-PCLNR 16 — Line Drawing PDF Download
