A50U-PCLNL 16
A50U-PCLNL 16
A50U-PCLNL 16

A50U-PCLNL 16

UGC DOR6757326
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$608.00 CAD - $608.00 CAD
$608.00 CAD
$608.00 CAD - $608.00 CAD
$608.00 CAD

Vendu en lots de : 1

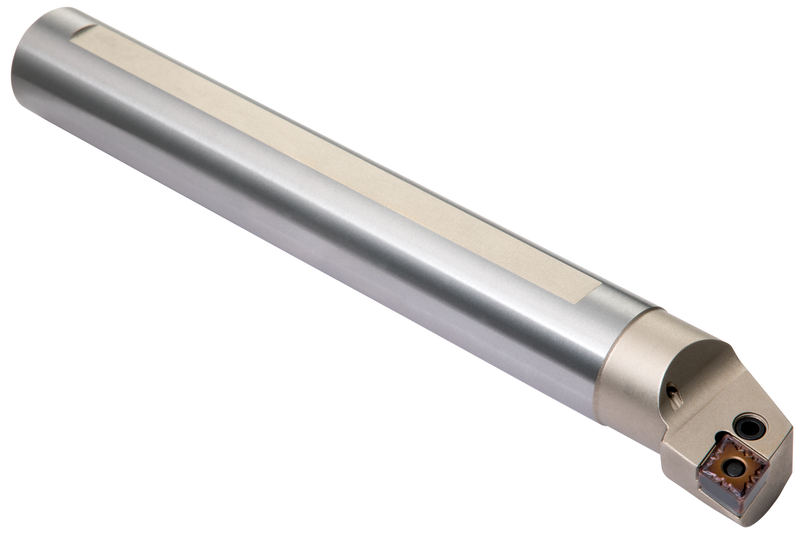

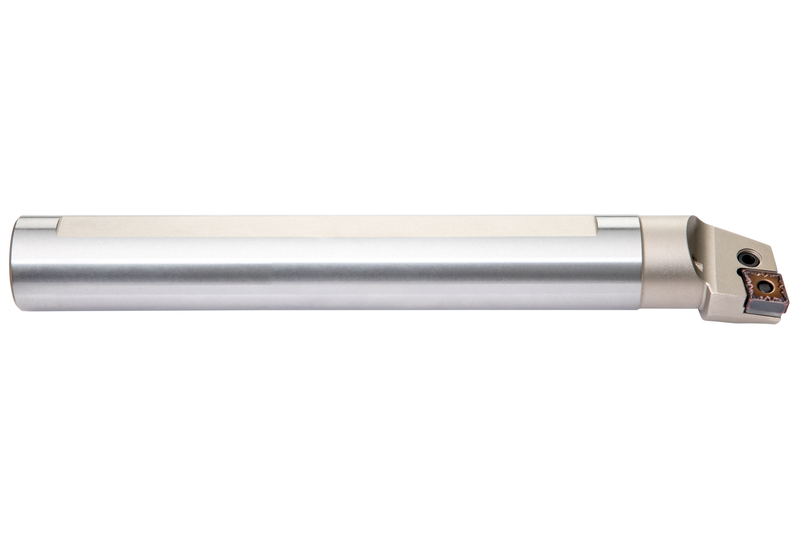

Barre d'alésage à levier pour loger un insert négatif en losange à 80° avec un diamètre de cercle inscrit de 15,575mm, épaisseur de 6,35mm (désignation ISO CN.. 1606..), coupe latérale et frontale de 95° à gauche avec queue déportée, en acier avec trou d'arrosage, diamètre 50mm x 350mm de long pour l'alésage conique et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A50U-PCLNL 16
Product Number6757326
Product FamilyPCLN(RL) INT

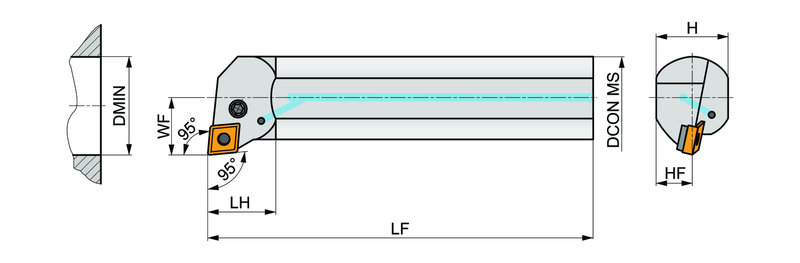

Dimensions
Functional Length — in (LF)13.78"
Functional Length — mm (LF)350.0 mm
Connection Dia. — in (DCON)1.969"
Connection Dia. — mm (DCON)50.0 mm
Shank Height — mm (H)1.85 mm
Min. Bore Dia. — in (DMIN)2.402"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6757326
EAN3603602926821
File Type Download
A50U-PCLNL 16 — 3D Model STP Download
A50U-PCLNL 16 — 2D Model DXF Download
A50U-PCLNL 16 — Line Drawing PDF Download
