A60V-PDUNR 15
A60V-PDUNR 15
A60V-PDUNR 15

A60V-PDUNR 15

UGC DOR6757363
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$721.00 CAD - $721.00 CAD
$721.00 CAD
$721.00 CAD - $721.00 CAD
$721.00 CAD

Vendu en lots de : 1

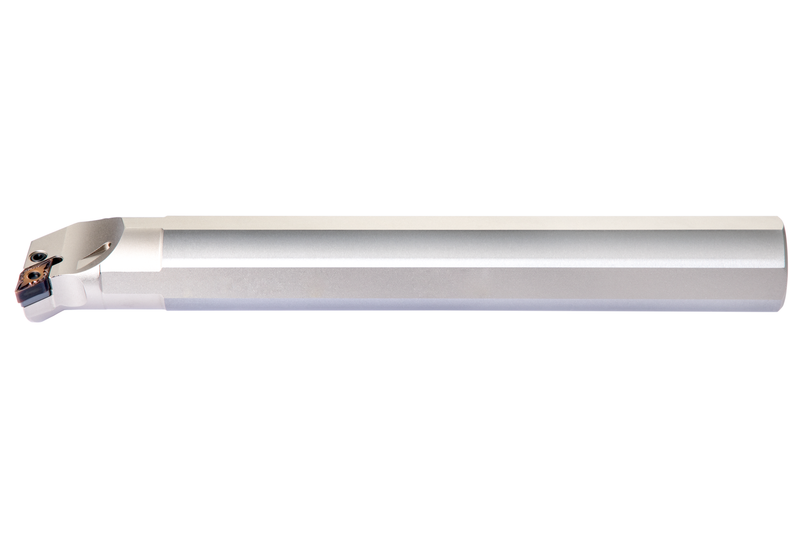

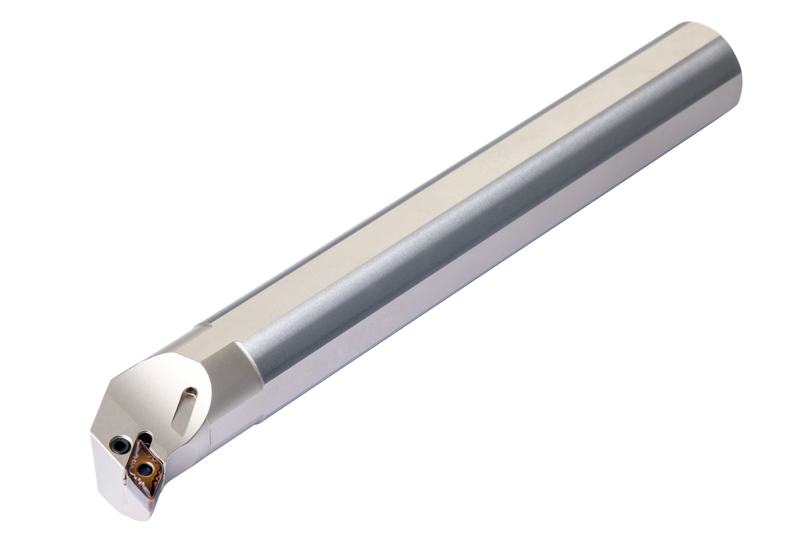

Barre d'alésage à levier pour loger un insert négatif en losange à 55° avec un cercle inscrit de 15,875 mm de diamètre, 6,35 mm d'épaisseur (désignation ISO DN... 1506...), coupe à droite à 93° avec queue déportée, en acier avec trou de lubrification, diamètre 60 mm x 400 mm de long pour l'alésage conique, l'alésage de copiage unidirectionnel et multidirectionnel et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A60V-PDUNR 15
Product Number6757363
Product FamilyPDUN(RL) INT

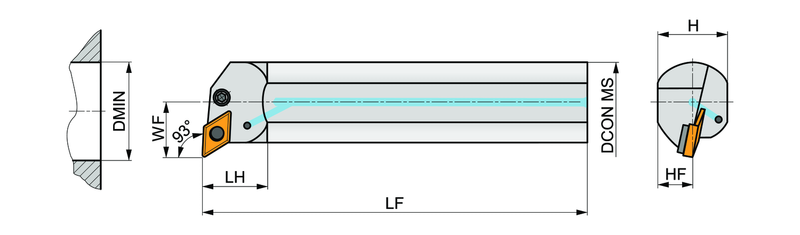

Dimensions
Functional Length — in (LF)15.748"
Functional Length — mm (LF)400.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Shank Height — mm (H)2.244 mm
Min. Bore Dia. — in (DMIN)3.15"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6757363
EAN3603602927194
File Type Download
A60V-PDUNR 15 — 3D Model STP Download
A60V-PDUNR 15 — 2D Model DXF Download
A60V-PDUNR 15 — Line Drawing PDF Download
