A60V-PDUNL 15
A60V-PDUNL 15
A60V-PDUNL 15

A60V-PDUNL 15

UGC DOR6757366
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$721.00 CAD - $721.00 CAD
$721.00 CAD
$721.00 CAD - $721.00 CAD
$721.00 CAD

Vendu en lots de : 1

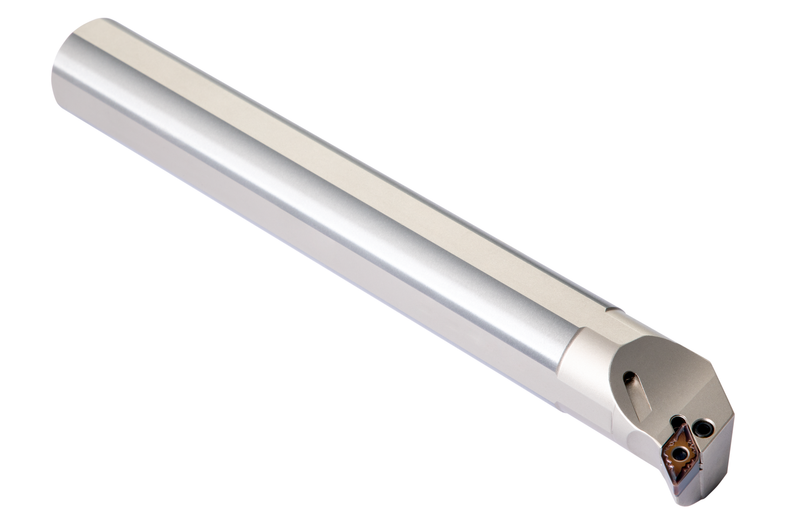

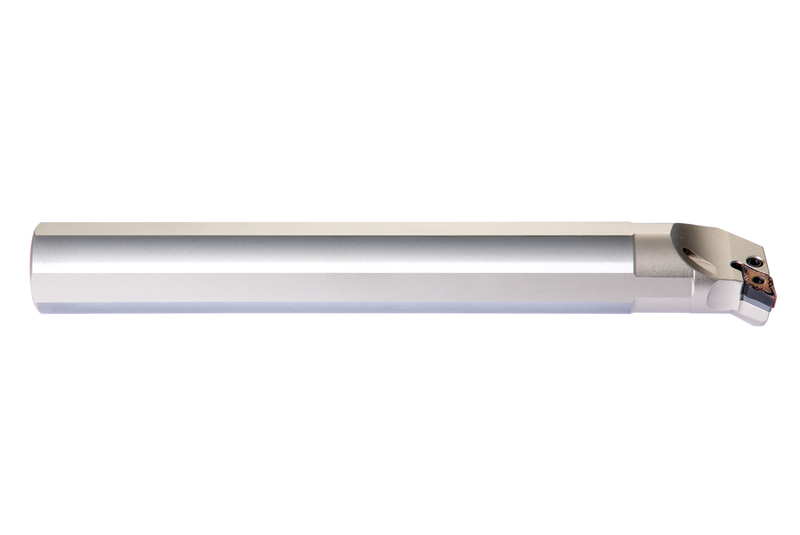

Alésoir à levier pour plaquette négative en forme de losange 55° de diamètre de cercle inscrit 15,875 mm et d'épaisseur 6,35 mm (désignation ISO DN.. 1506..), coupe à gauche 93° avec queue déportée, en acier avec trou de lubrification, diamètre 60 mm x longueur 400 mm pour alésage conique, alésage de copiage unidirectionnel et multidirectionnel et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A60V-PDUNL 15
Product Number6757366
Product FamilyPDUN(AR) INT

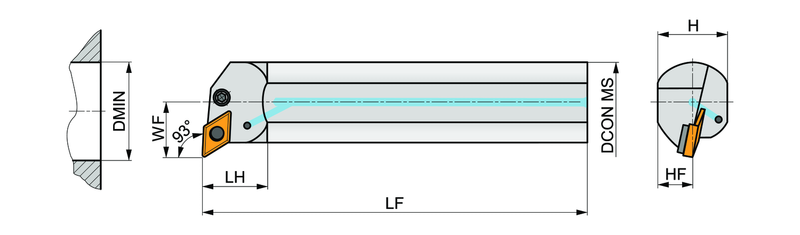

Dimensions
Functional Length — in (LF)15.748"
Functional Length — mm (LF)400.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Shank Height — mm (H)2.244 mm
Min. Bore Dia. — in (DMIN)3.15"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6757366
EAN3603602927224
File Type Download
A60V-PDUNL 15 — 3D Model STP Download
A60V-PDUNL 15 — 2D Model DXF Download
A60V-PDUNL 15 — Line Drawing PDF Download
