A60V-PWLNR 08
A60V-PWLNR 08
A60V-PWLNR 08

A60V-PWLNR 08

UGC DOR6757367
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$721.00 CAD - $721.00 CAD
$721.00 CAD
$721.00 CAD - $721.00 CAD
$721.00 CAD

Vendu en lots de : 1

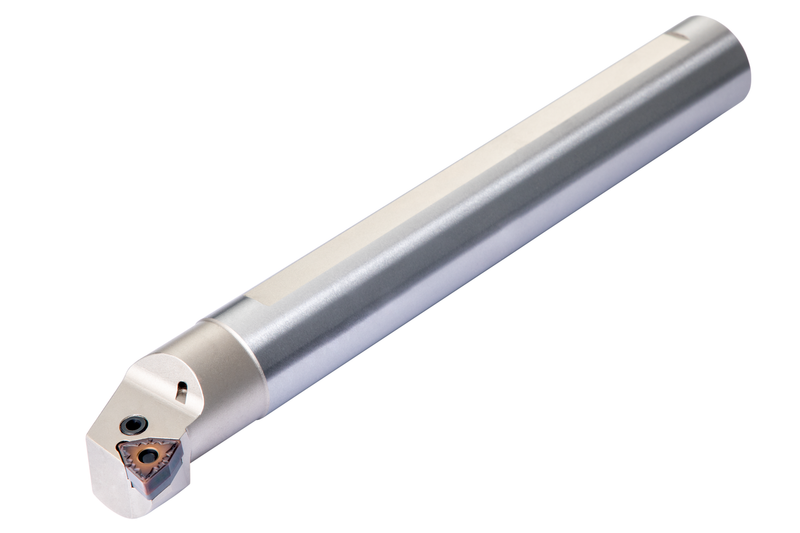

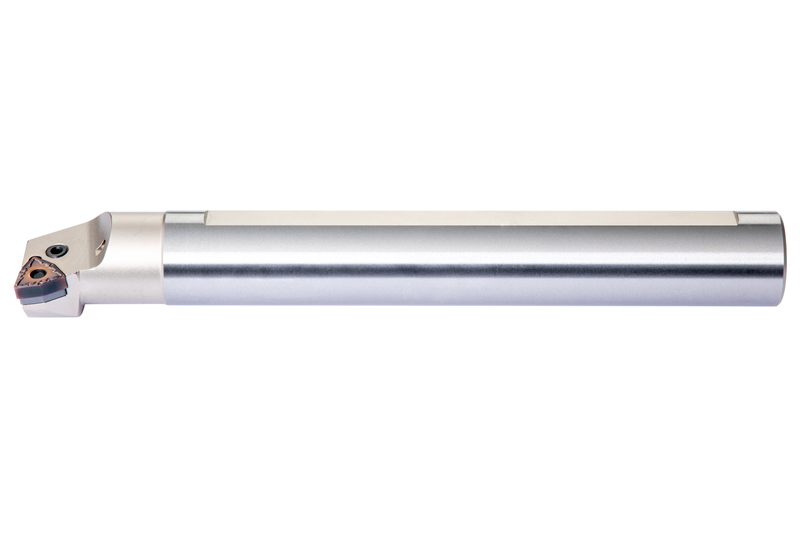

Barre d'alésage à levier pour insert négatif trigonal à 80° avec un cercle inscrit de 12,7 mm de diamètre, 4,76 mm d'épaisseur (désignation ISO WN.. 0804..), coupe à droite 95° latérale et frontale avec queue déportée, en acier avec trou de lubrification, 60 mm de diamètre x 400 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A60V-PWLNR 08
Product Number6757367
Product FamilyRMAL(RL) INT

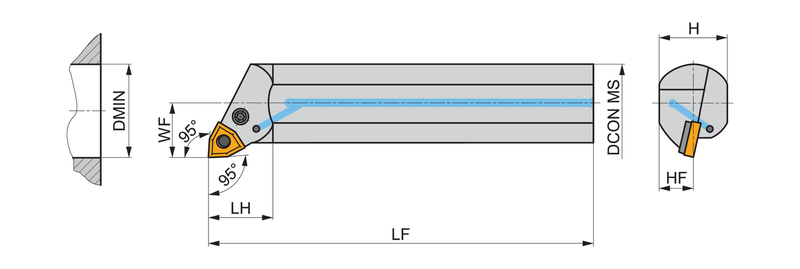

Dimensions
Functional Length — in (LF)15.748"
Functional Length — mm (LF)400.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Shank Height — mm (H)2.244 mm
Min. Bore Dia. — in (DMIN)3.15"
Tool Information
Direction of ToolGauche
Through Coolant No
Reference Numbers
EDP Number6757367
EAN3603602927231
File Type Download
A60V-PWLNR 08 — 3D Model STP Download
A60V-PWLNR 08 — 2D Model DXF Download
A60V-PWLNR 08 — Line Drawing PDF Download
