A32S-PDUNL 15
A32S-PDUNL 15
A32S-PDUNL 15

A32S-PDUNL 15

UGC DOR6757370
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$446.00 CAD - $446.00 CAD
$446.00 CAD
$446.00 CAD - $446.00 CAD
$446.00 CAD

Vendu en lots de : 1

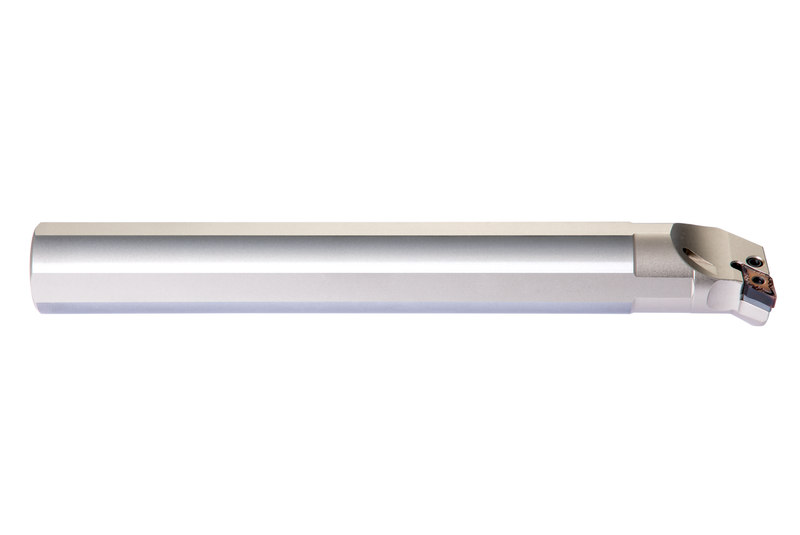

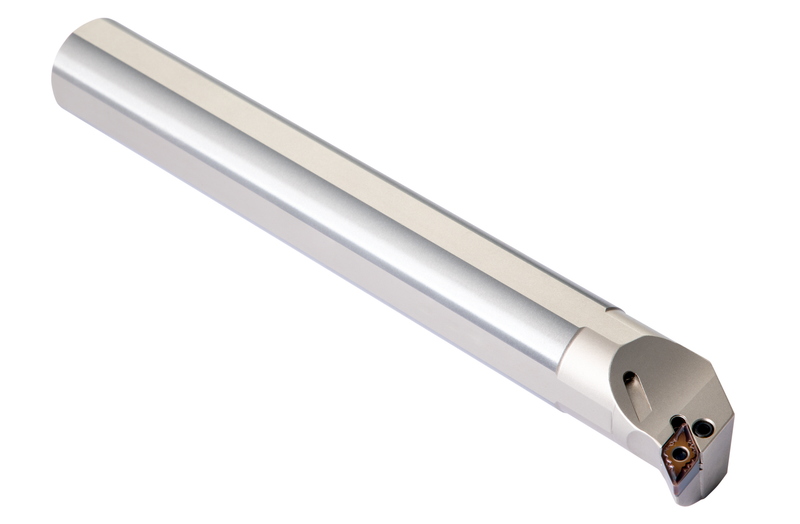

Barre d'alésage à levier pour loger un insert négatif en losange à 55° avec un diamètre de cercle inscrit de 15,875mm, 6,35mm d'épaisseur (désignation ISO DN.. 1506.. ), coupe à gauche à 93° avec tige déportée, acier avec trou d'arrosage, 32mm de diamètre x 250mm de long pour l'alésage conique, l'alésage de copiage simple et multidirectionnel et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32S-PDUNL 15
Product Number6757370
Product FamilyPDUN(RL) INT

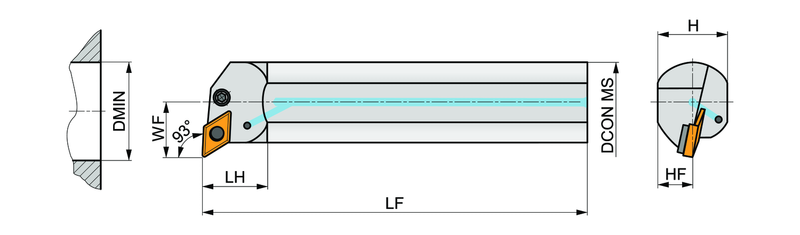

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.535"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6757370
EAN3603602927262
File Type Download
A32S-PDUNL 15 — 3D Model STP Download
A32S-PDUNL 15 — 2D Model DXF Download
A32S-PDUNL 15 — Line Drawing PDF Download
