SSSCR 10 CA-09
SSSCR 10 CA-09
SSSCR 10 CA-09

SSSCR 10 CA-09

UGC DOR6757371
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$169.00 CAD - $169.00 CAD
$169.00 CAD
$169.00 CAD - $169.00 CAD
$169.00 CAD

Vendu en lots de : 1

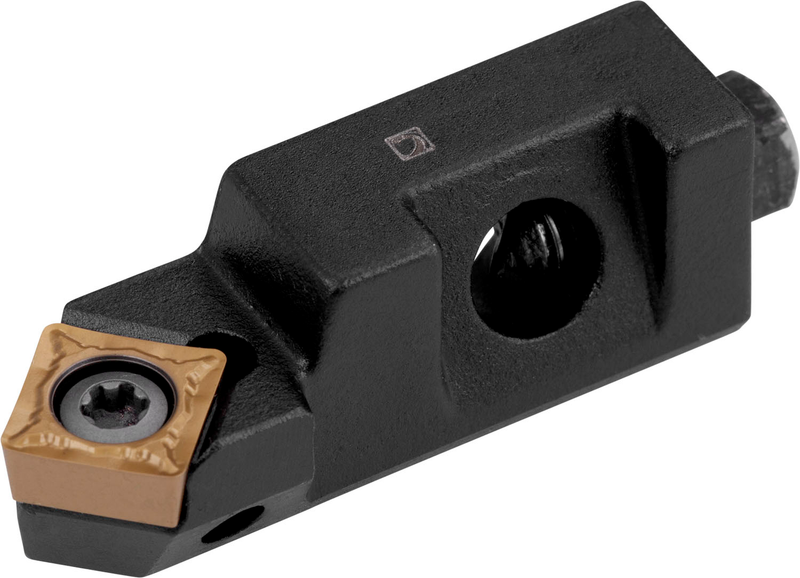

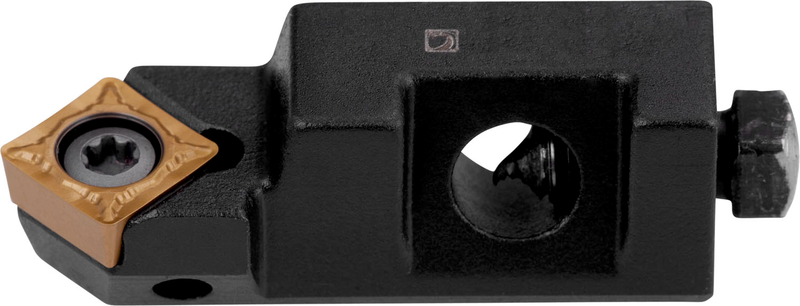

Cartouche de tournage ISO à fixation par vis pour plaquette carrée positive avec un diamètre de cercle inscrit de 9,525 mm et 3,97 mm d'épaisseur (désignation ISO SC... 09T3...), selon DIN 4985, à droite, angle d'attaque de 45°, corps déporté pour le chanfreinage extérieur et intérieur

For more information about this product, click here

Identification
Ordering Code (ANSI)RDCRC 10 CA-09
Product Name (ISO)SSSCR 10 CA-09
Product Number6757371
Product FamilySSSC(RL) 10 CA

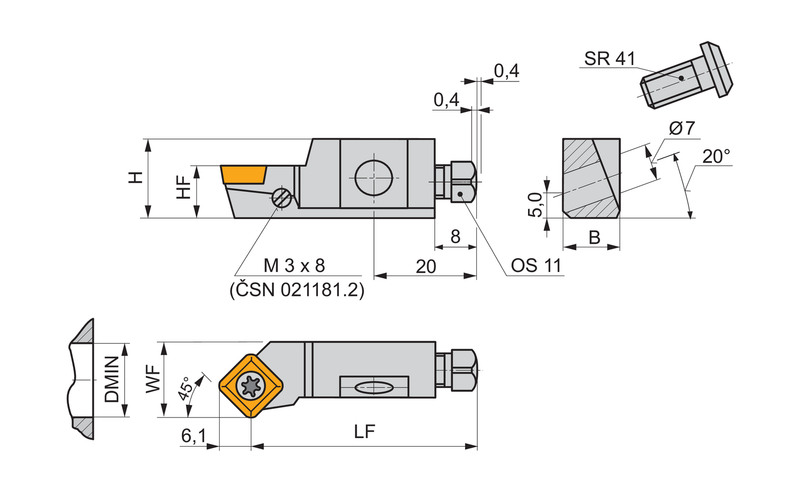

Dimensions
Functional Length — in (LF)1.732"
Functional Length — mm (LF)44.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757371
EAN3603602927279
File Type Download
SSSCR 10 CA-09 — 3D Model STP Download
SSSCR 10 CA-09 — Line Drawing PDF Download
