STGCR 10 CA-11

STGCR 10 CA-11

UGC DOR6757372
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$169.00 CAD - $169.00 CAD
$169.00 CAD
$169.00 CAD - $169.00 CAD
$169.00 CAD

Vendu en lots de : 1

Cartouche de tournage ISO à vis pour plaquette triangulaire positive avec un diamètre de cercle inscrit de 6,35mm, de 2,38mm d'épaisseur (désignation ISO TC.. 1102.. ), conforme à la norme DIN 4985, coupe latérale droite à 90° avec queue déportée pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)STGCR 10 CA-11
Product Number6757372
Product FamilySTGC(RL) 10 CA

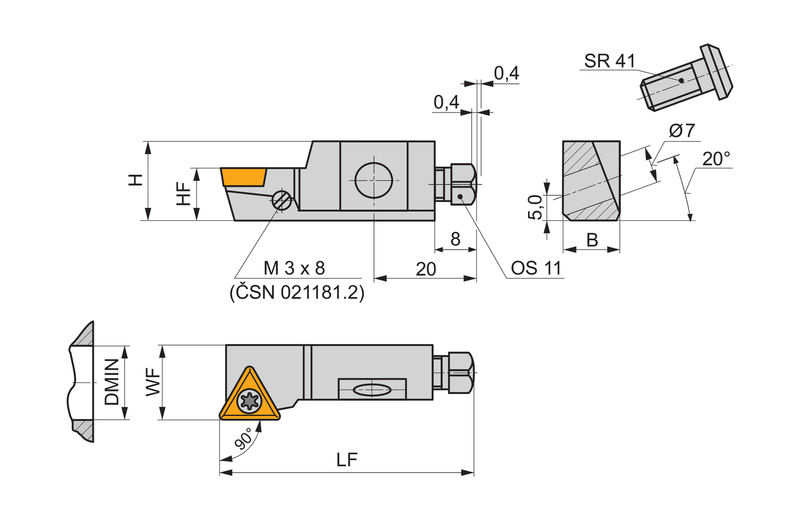

Dimensions
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757372
EAN3603602927286
File Type Download
STGCR 10 CA-11 — 3D Model STP Download
STGCR 10 CA-11 — Line Drawing PDF Download
