STFCL 10 CA-11

STFCL 10 CA-11

UGC DOR6757374
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$169.00 CAD - $169.00 CAD
$169.00 CAD
$169.00 CAD - $169.00 CAD
$169.00 CAD

Vendu en lots de : 1

Cartouche de tournage ISO avec serrage par vis pour plaquette triangulaire positive d'un diamètre de cercle inscrit de 6,35 mm et d'une épaisseur de 2,38 mm (désignation ISO TC.. 1102.. ), conformément à la norme DIN 4985, coudée à gauche à 90°, à corps déporté pour chariotage et alésage conique et longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)STFCL 10 CA-11
Product Number6757374
Product FamilySTFC(RL) 10 CA
Dimensions
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757374
EAN3603602927309
File Type Download
STFCL 10 CA-11 — 3D Model STP Download

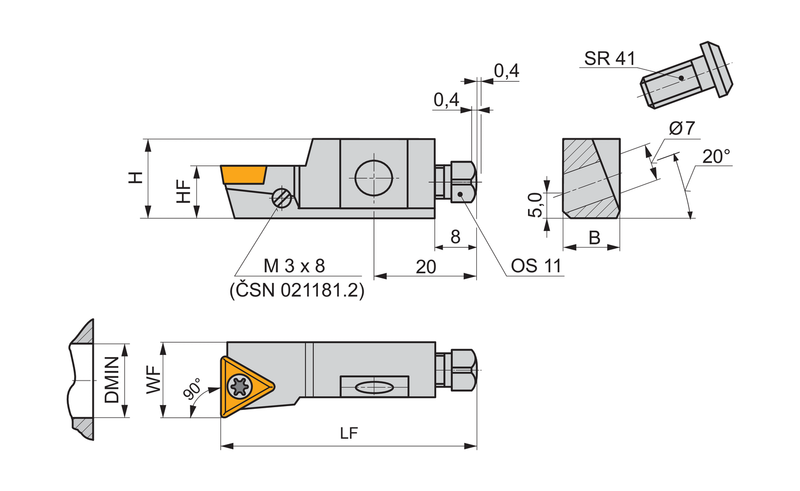

STFCL 10 CA-11 — Line Drawing PDF Download
