DKHL 4050 V
DKHL 4050 V
DKHL 4050 V
DKHL 4050 V

DKHL 4050 V

UGC DOR6757385
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$613.00 CAD - $613.00 CAD
$613.00 CAD
$613.00 CAD - $613.00 CAD
$613.00 CAD

Vendu en lots de : 1

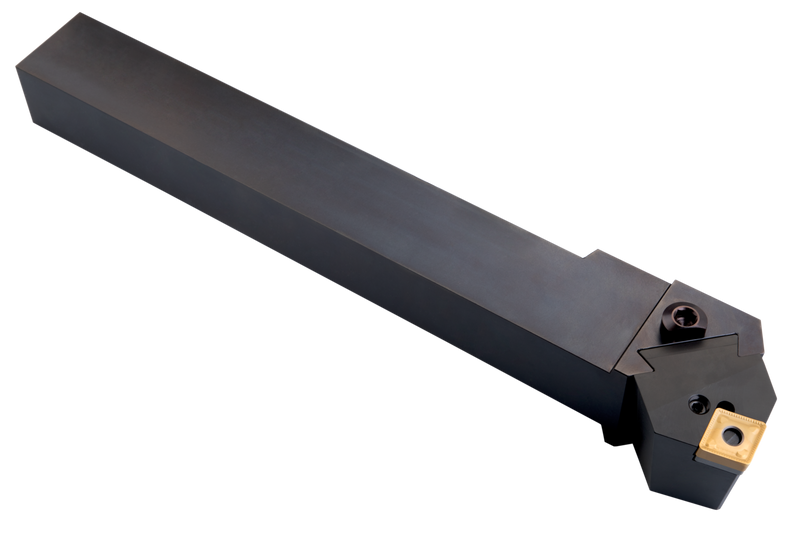

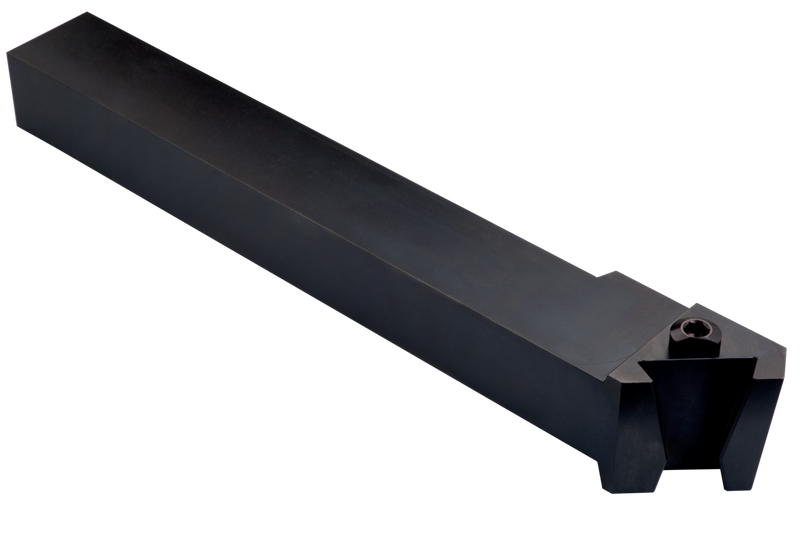

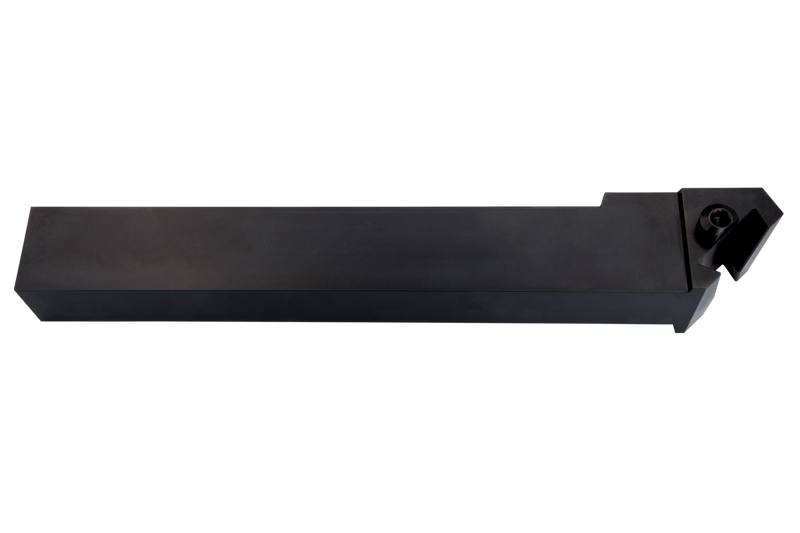

Porte-outil de système modulaire pour cartouche d'outil de tournage KHP/KHS à gauche, taille de la tige 40mm x 50mm, 400mm de long pour l'usinage intensif

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DKHL 4050 V
Product Number6757385
Product FamilyDKH(RL)

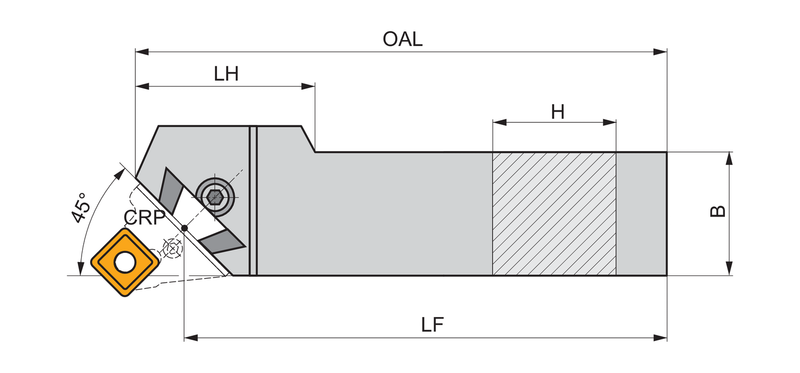

Dimensions
Overall Length — in (OAL)16.732"
Overall Length — mm (OAL)425.0 mm
Functional Length — in (LF)15.748"
Functional Length — mm (LF)400.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757385
EAN3603602927415
File Type Download
DKHL 4050 V — 3D Model STP Download
DKHL 4050 V — Line Drawing PDF Download
