PCBNL 4040 S 25
PCBNL 4040 S 25
PCBNL 4040 S 25

PCBNL 4040 S 25

UGC DOR6757405
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

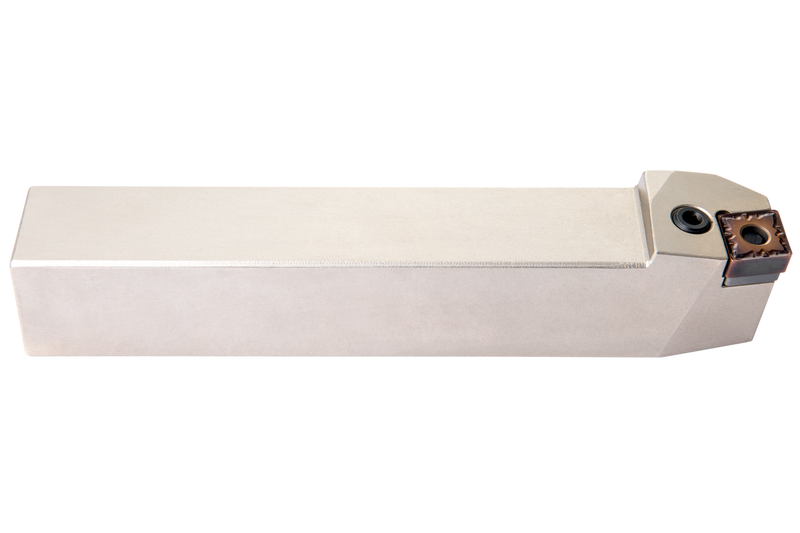

Outil de tournage à levier pour plaquette négative rhomboïde à 80° avec un diamètre de cercle inscrit de 25,4 mm, épaisseur de 9,52 mm (désignation ISO CN.. 2509.. ), coupe latérale à gauche à 75° avec queue cylindrique, hauteur d'outil de 40 mm x largeur de 40 mm x longueur de 250 mm pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PCBNL 4040 S 25
Product Number6757405
Product FamilyPCBN(AR) EXT

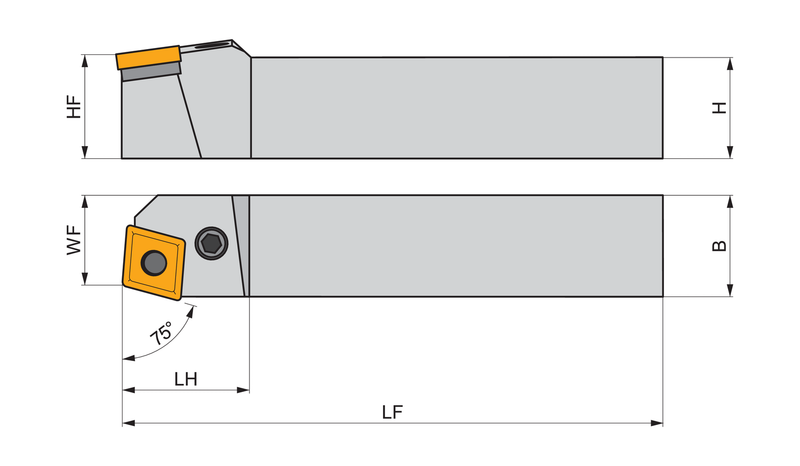

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757405
EAN3603602927613
File Type Download
PCBNL 4040 S 25 — 3D Model STP Download
PCBNL 4040 S 25 — 2D Model DXF Download
PCBNL 4040 S 25 — Line Drawing PDF Download
