PCBNR 5050 T 25
PCBNR 5050 T 25
PCBNR 5050 T 25

PCBNR 5050 T 25

UGC DOR6757406
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$445.00 CAD - $445.00 CAD
$445.00 CAD
$445.00 CAD - $445.00 CAD
$445.00 CAD

Vendu en lots de : 1

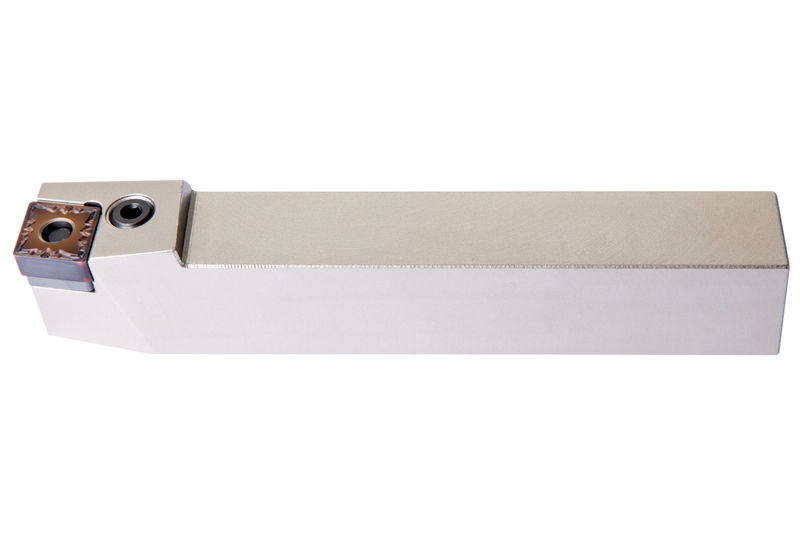

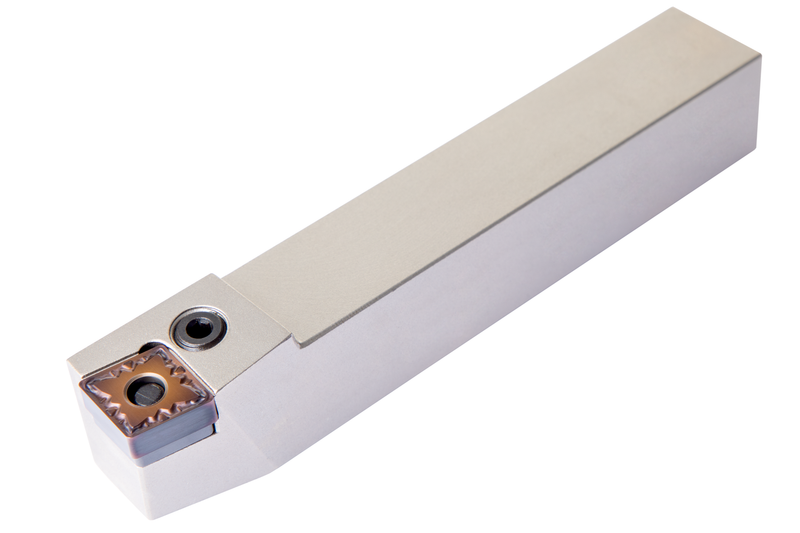

Outil de chariotage à levier pour plaquette négative rhomboïde à 80° avec un diamètre de cercle inscrit de 25,4 mm, 9,52 mm d'épaisseur (désignation ISO CN.. 2509..), coupe latérale à droite à 75° avec queue droite, hauteur d'outil de 50 mm x 50 mm de largeur x 300 mm de long pour tournage conique et tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PCBNR 5050 T 25
Product Number6757406
Product FamilyPCBN(RL) EXT

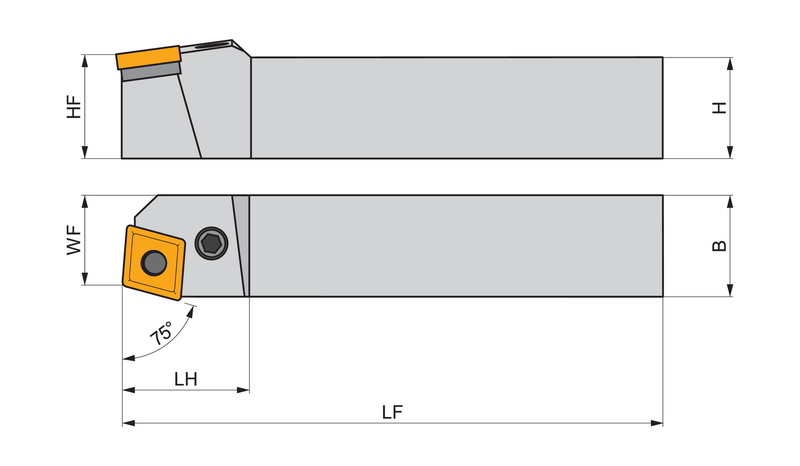

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Shank Height — mm (H)1.969 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757406
EAN3603602927620
File Type Download
PCBNR 5050 T 25 — 3D Model STP Download
PCBNR 5050 T 25 — 2D Model DXF Download
PCBNR 5050 T 25 — Line Drawing PDF Download
