PCBNL 5050 T 25
PCBNL 5050 T 25
PCBNL 5050 T 25

PCBNL 5050 T 25

UGC DOR6757407
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$445.00 CAD - $445.00 CAD
$445.00 CAD
$445.00 CAD - $445.00 CAD
$445.00 CAD

Vendu en lots de : 1

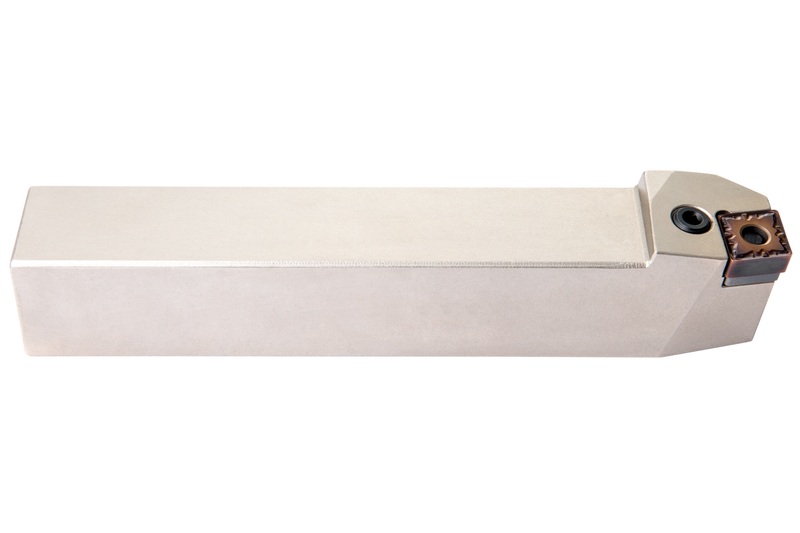

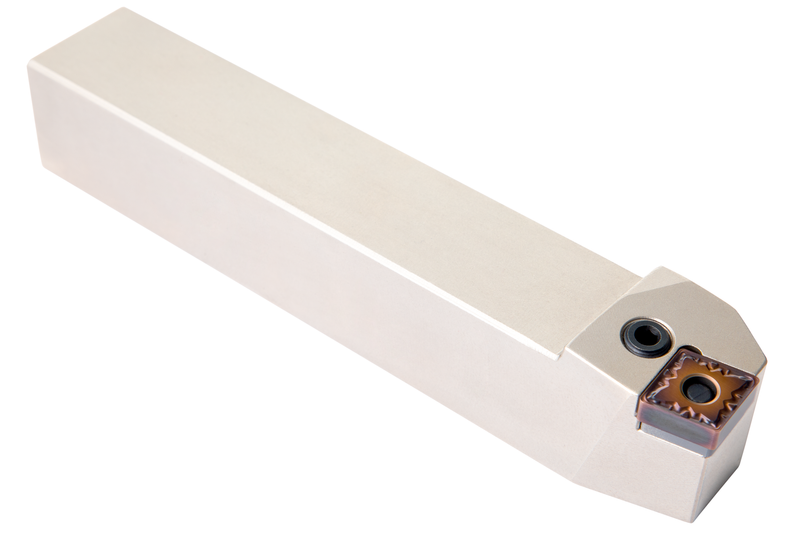

Outil de tournage à levier pour plaquette négative rhomboïde de 80° avec un diamètre de cercle inscrit de 25,4 mm, épaisseur de 9,52 mm (désignation ISO CN.. 2509..), coupe latérale à gauche de 75° avec queue droite, hauteur d'outil 50 mm x largeur 50 mm x longueur 300 mm pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PCBNL 5050 T 25
Product Number6757407
Product FamilyPCBN(RL) EXT

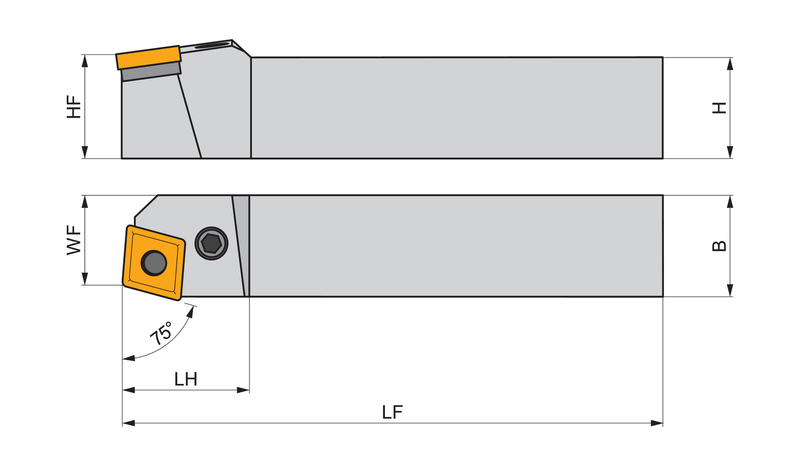

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Shank Height — mm (H)1.969 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757407
EAN3603602927637
File Type Download
PCBNL 5050 T 25 — 3D Model STP Download
PCBNL 5050 T 25 — 2D Model DXF Download
PCBNL 5050 T 25 — Line Drawing PDF Download
