SSRCR 10 CA-09

SSRCR 10 CA-09

UGC DOR6757428
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$169.00 CAD - $169.00 CAD
$169.00 CAD
$169.00 CAD - $169.00 CAD
$169.00 CAD

Vendu en lots de : 1

Cartouche de tournage ISO avec fixation par vis pour plaquette carrée positive d'un diamètre de cercle inscrit de 9,525 mm, de 3,97 mm d'épaisseur (désignation ISO SC.. 09T3.. ), conforme à la norme DIN 4985, coupe latérale à droite de 75° avec tige déportée pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SSRCR 10 CA-09
Product Number6757428
Product FamilyCRSS(RL) 10 CA

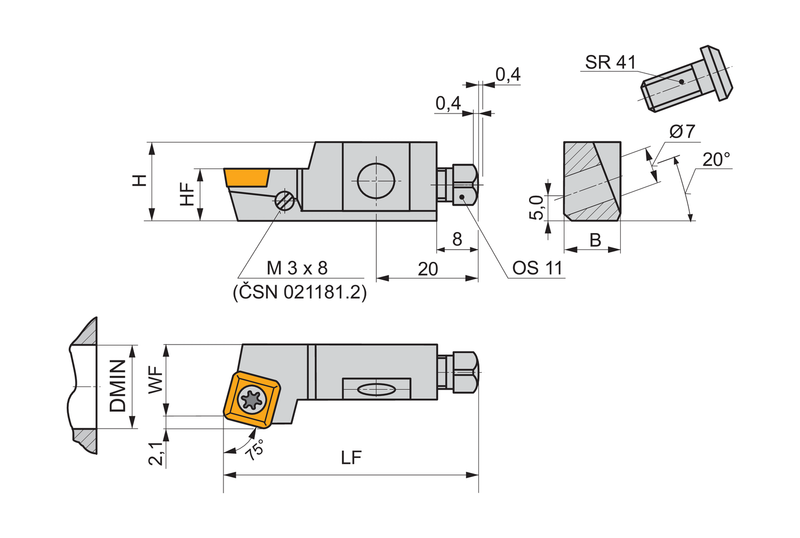

Dimensions
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757428
EAN3603602927842
File Type Download
SSRCR 10 CA-09 — 3D Model STP Download
SSRCR 10 CA-09 — Line Drawing PDF Download
