SRSCL 10 CA-10

SRSCL 10 CA-10

UGC DOR6757442
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$169.00 CAD - $169.00 CAD
$169.00 CAD
$169.00 CAD - $169.00 CAD
$169.00 CAD

Vendu en lots de : 1

Cartouche de tournage ISO avec serrage par vis pour une plaquette ronde positive de 10 mm de diamètre et 3,97 mm d'épaisseur (désignation ISO RC.. 10T3MO), conforme à la norme DIN 4985, coupe à gauche avec corps décalé pour le chariotage sans épaulement et le tournage longitudinal sans épaulement ainsi que l'alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SRSCL 10 CA-10
Product Number6757442
Product FamilySRSC(RL) 10 CA
Dimensions
Functional Length — in (LF)1.969"
Functional Length — mm (LF)50.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)1.575"
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6757442
EAN3603602927989
File Type Download
SRSCL 10 CA-10 — 3D Model STP Download

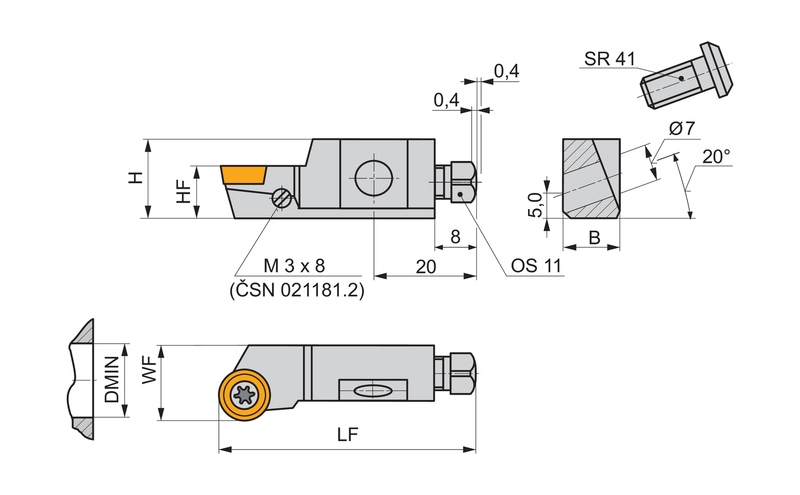

SRSCL 10 CA-10 — Line Drawing PDF Download
