UGC DOR6757750
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,623.00 CAD - $1,623.00 CAD
$1,623.00 CAD
$1,623.00 CAD - $1,623.00 CAD
$1,623.00 CAD

Vendu en lots de : 1

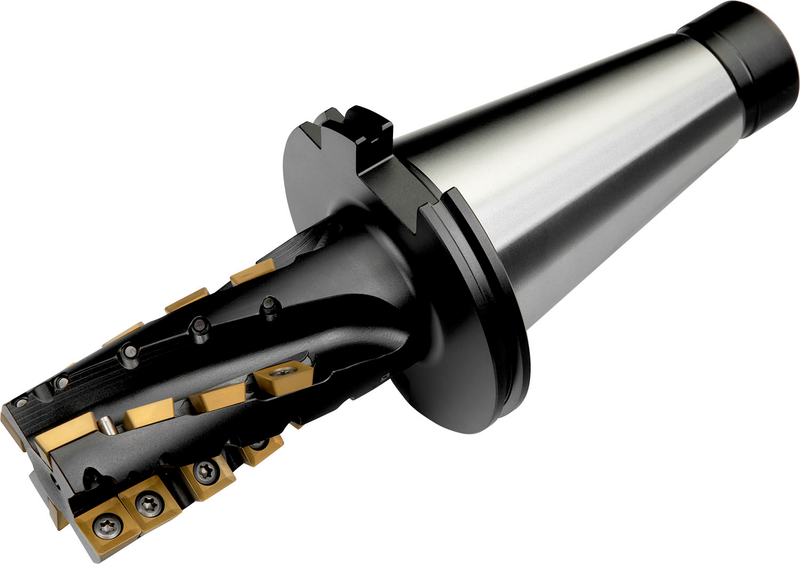

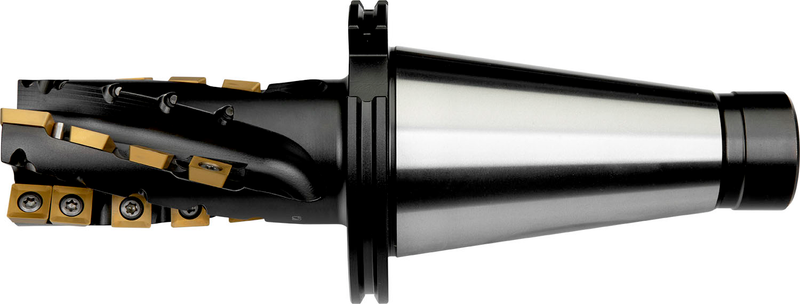

Fraise à épaule à queue longue à géométrie positive/négative qui utilise 2 plaquettes APE. 1504.. et 16 SPE. 1204.. simple face, diamètre de coupe 50 mm avec angle d'attaque de 90° et cône BT 50 selon JIS B 6339, 76 mm de longueur utile et 251 mm de longueur totale pour le surfaçage et l'usinage de rainures profondes avec une profondeur de coupe maximale de 76 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50J4R124X50-SSAP76-A
Product Number6757750
Product FamilyJ(T)-SSAP
Insert Geometry
Depth of Cut Max — mm (APMX)76.0 mm

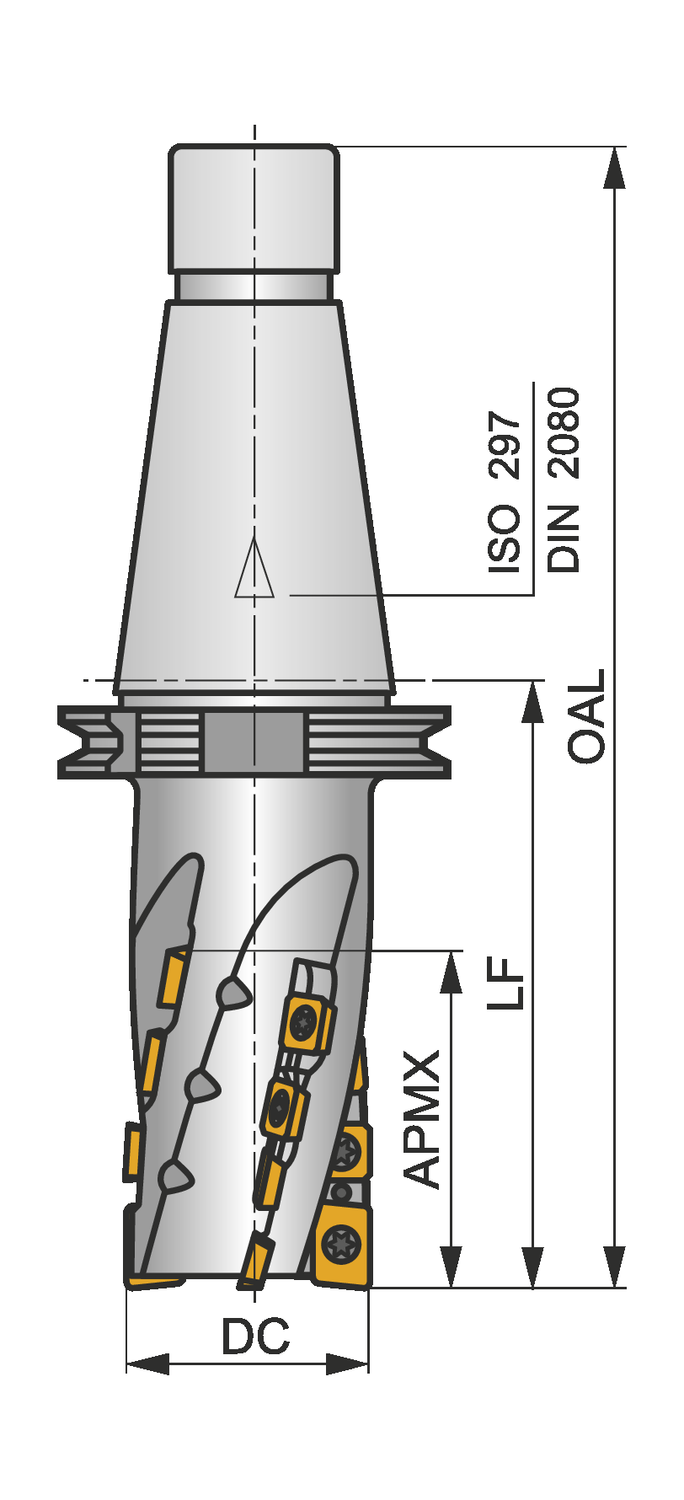

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Overall Length — in (OAL)9.882"
Overall Length — mm (OAL)251.0 mm
Functional Length — mm (LF)124.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SSAP
ShankArbre DIN 2080-1
Direction of ToolGauche
Reference Numbers
EDP Number6757750
EAN3603602931061
File Type Download
50J4R124X50-SSAP76-A — 3D Model STP Download
50J4R124X50-SSAP76-A — Line Drawing PDF Download
