80J6R151X50-SSAP95-A
80J6R151X50-SSAP95-A
80J6R151X50-SSAP95-A

80J6R151X50-SSAP95-A

UGC DOR6757751
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,587.00 CAD - $2,587.00 CAD
$2,587.00 CAD
$2,587.00 CAD - $2,587.00 CAD
$2,587.00 CAD

Vendu en lots de : 1

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 3 plaquettes APE. 1504.. et 30 plaquettes SPE. 1204.. simple face, diamètre de coupe 80 mm avec angle d'attaque de 90° et queue conique BT 50 selon JIS B 6339, longueur utile de 95 mm et longueur totale de 275 mm pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 95 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80J6R151X50-SSAP95-A
Product Number6757751
Product FamilyJ(T)-SSAP
Insert Geometry
Depth of Cut Max — mm (APMX)95.0 mm

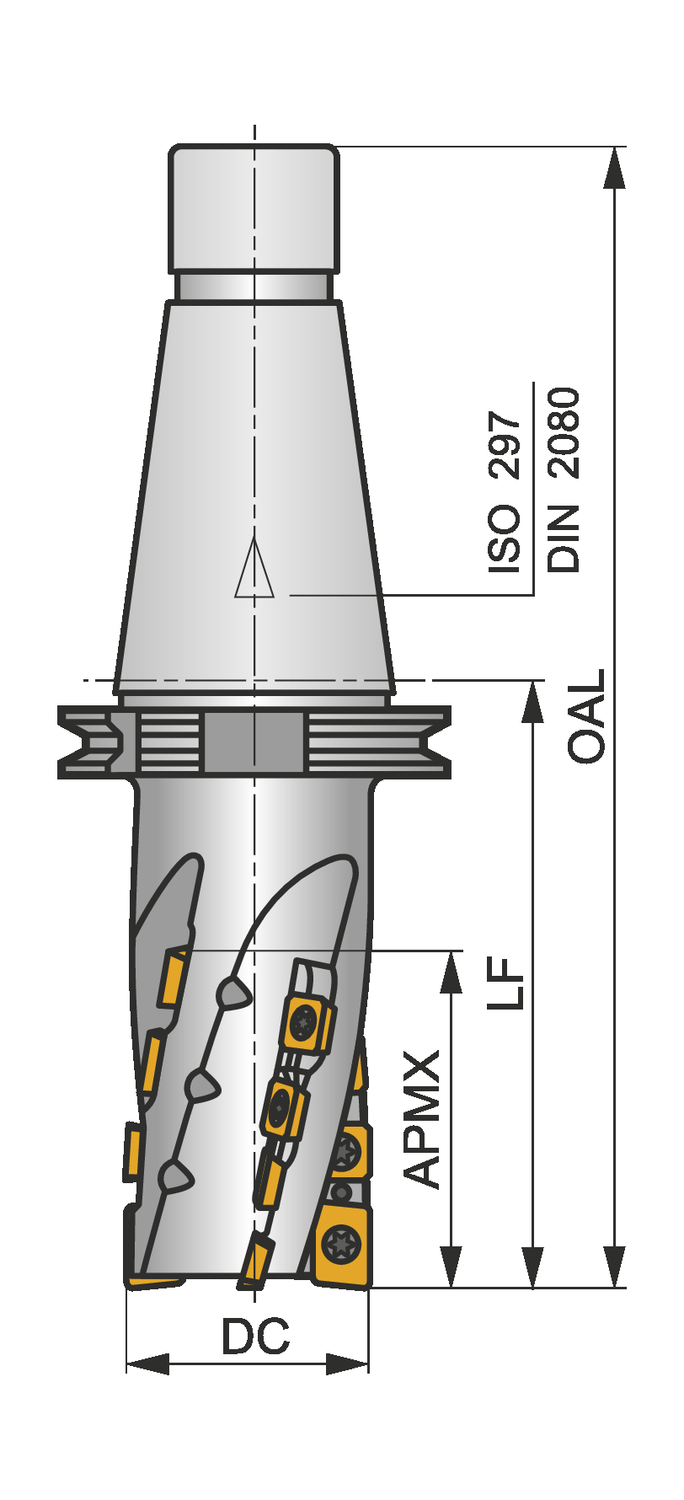

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Overall Length — in (OAL)10.827"
Overall Length — mm (OAL)275.0 mm
Functional Length — mm (LF)151.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignJ(T)-SSAP
ShankArbor DIN 2080-1
Direction of ToolD'accord
Reference Numbers
EDP Number6757751
EAN3603602931078
File Type Download
80J6R151X50-SSAP95-A — 3D Model STP Download
80J6R151X50-SSAP95-A — Line Drawing PDF Download
