80J6R155H50-SSAP95-A

80J6R155H50-SSAP95-A

UGC DOR6757753
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,587.00 CAD - $2,587.00 CAD
$2,587.00 CAD
$2,587.00 CAD - $2,587.00 CAD
$2,587.00 CAD

Vendu en lots de : 1

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 3 plaquettes APE. 1504... et 3 plaquettes SPE. 1204... simple face, diamètre de coupe de 80mm avec un angle d'attaque de 90° et un cône SK 50 selon ISO/DIS 7388-1, longueur fonctionnelle de 95mm et longueur totale de 257mm pour le fraisage d'épaulements profonds et le fraisage de gorges profondes avec une profondeur de coupe maximale de 95mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80J6R155H50-SSAP95-A
Product Number6757753
Product FamilyJ(T)-SSAP
Insert Geometry
Depth of Cut Max — mm (APMX)95.0 mm

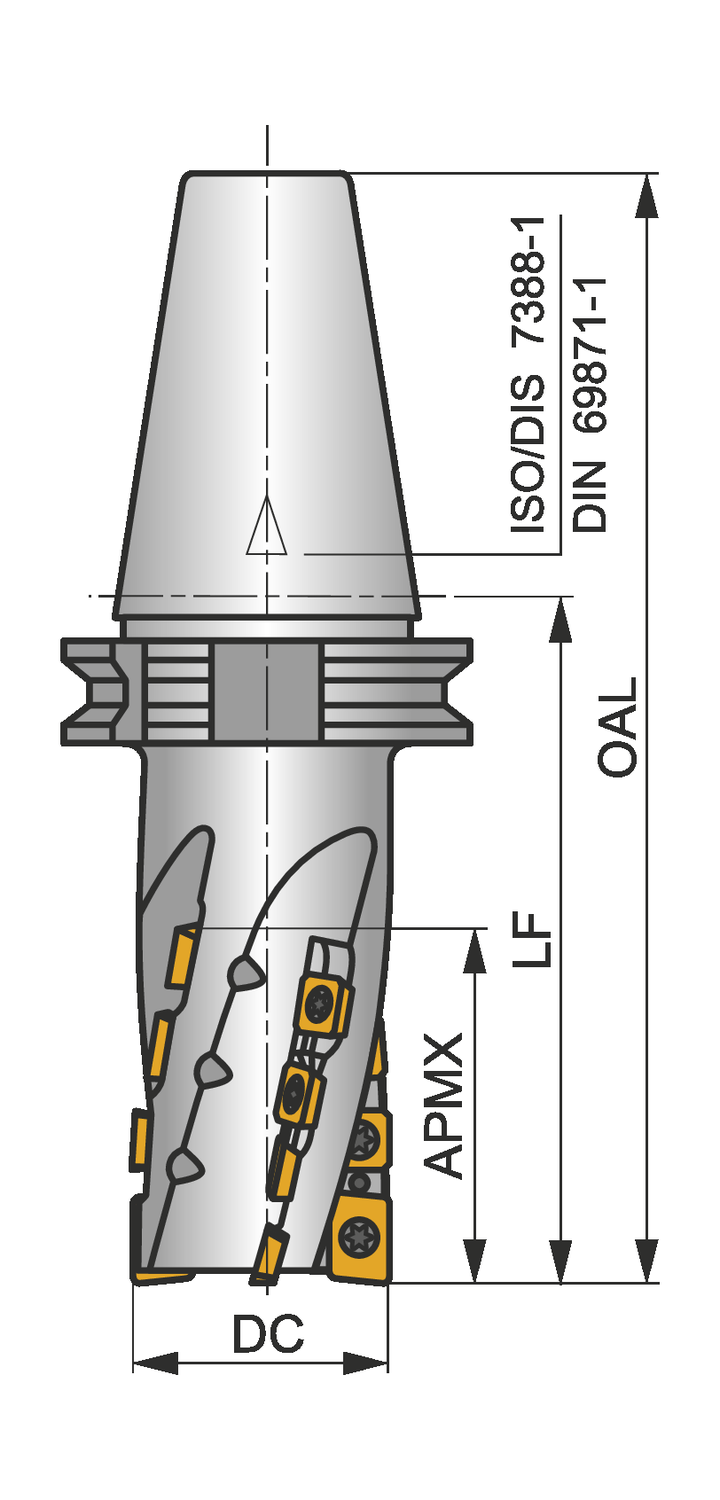

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Overall Length — in (OAL)10.118"
Overall Length — mm (OAL)257.0 mm
Functional Length — mm (LF)155.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignJ(T)-SSAP
ShankArbre DIN 69871-1
Direction of ToolGauche
Reference Numbers
EDP Number6757753
EAN3603602931092
File Type Download
80J6R155H50-SSAP95-A — 3D Model STP Download
80J6R155H50-SSAP95-A — Line Drawing PDF Download
