50J4R128H50-SSAP55+21

50J4R128H50-SSAP55+21

UGC DOR6757756
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,245.00 CAD - $2,245.00 CAD
$2,245.00 CAD
$2,245.00 CAD - $2,245.00 CAD
$2,245.00 CAD

Vendu en lots de : 1

Fraise à épaulement à longue portée et à tête interchangeable, avec géométrie positive/négative utilisant 2 plaquettes simple face APE. 1504.. et 16 SPE. 1204.., diamètre de coupe de 50 mm avec un angle d'attaque de 90° et un cône SK 50 selon ISO/DIS 7388-1, longueur fonctionnelle de 76 mm et longueur totale de 230 mm pour le surfaçage en profondeur et le fraisage de rainures profondes avec une profondeur de coupe maximale de 76 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50J4R128H50-SSAP55+21
Product Number6757756
Product FamilyJ(T)-SSAP
Insert Geometry
Depth of Cut Max — mm (APMX)76.0 mm

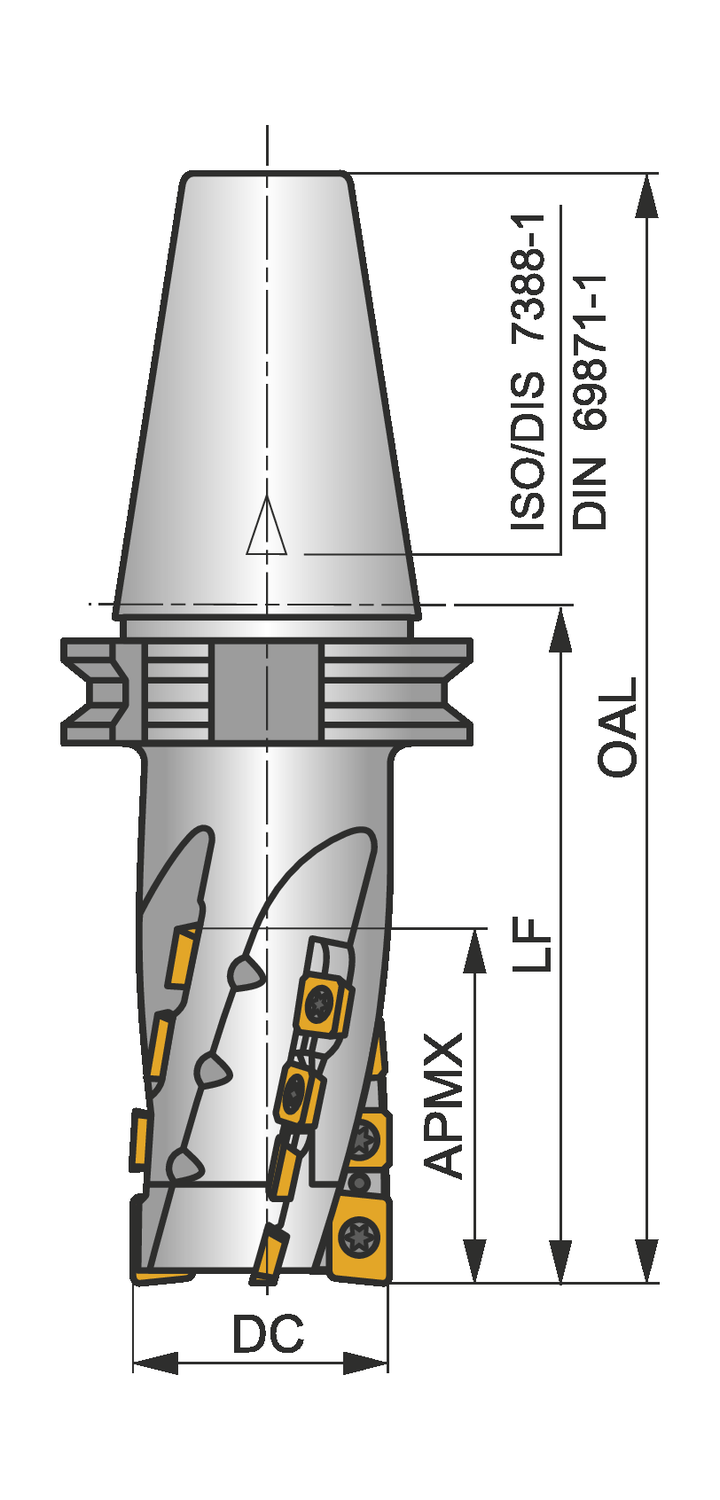

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Overall Length — in (OAL)9.055"
Overall Length — mm (OAL)230.0 mm
Functional Length — mm (LF)128.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SSAP
ShankArbre DIN 69871-1
Direction of ToolD'accord
Reference Numbers
EDP Number6757756
EAN3603602931122
File Type Download
50J4R128H50-SSAP55+21 — Line Drawing PDF Download
