63J4R150H50-SSAP74+21

63J4R150H50-SSAP74+21

UGC DOR6757757
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,521.00 CAD - $2,521.00 CAD
$2,521.00 CAD
$2,521.00 CAD - $2,521.00 CAD
$2,521.00 CAD

Vendu en lots de : 1

Fraise à épaulement à queue avec tête amovible et géométrie positive/négative qui utilise des plaquettes simple face 2x APE. 1504.. et 2x SPE. 1204.., diamètre de coupe 63mm avec angle d'attaque de 90° et cône SK 50 selon ISO/DIS 7388-1, longueur fonctionnelle 95mm et longueur totale 252mm pour le surfaçage-dressage et le fraisage de rainures profondes avec une profondeur de coupe maximale de 95mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63J4R150H50-SSAP74+21
Product Number6757757
Product FamilyJ(T)-SSAP
Insert Geometry
Depth of Cut Max — mm (APMX)95.0 mm

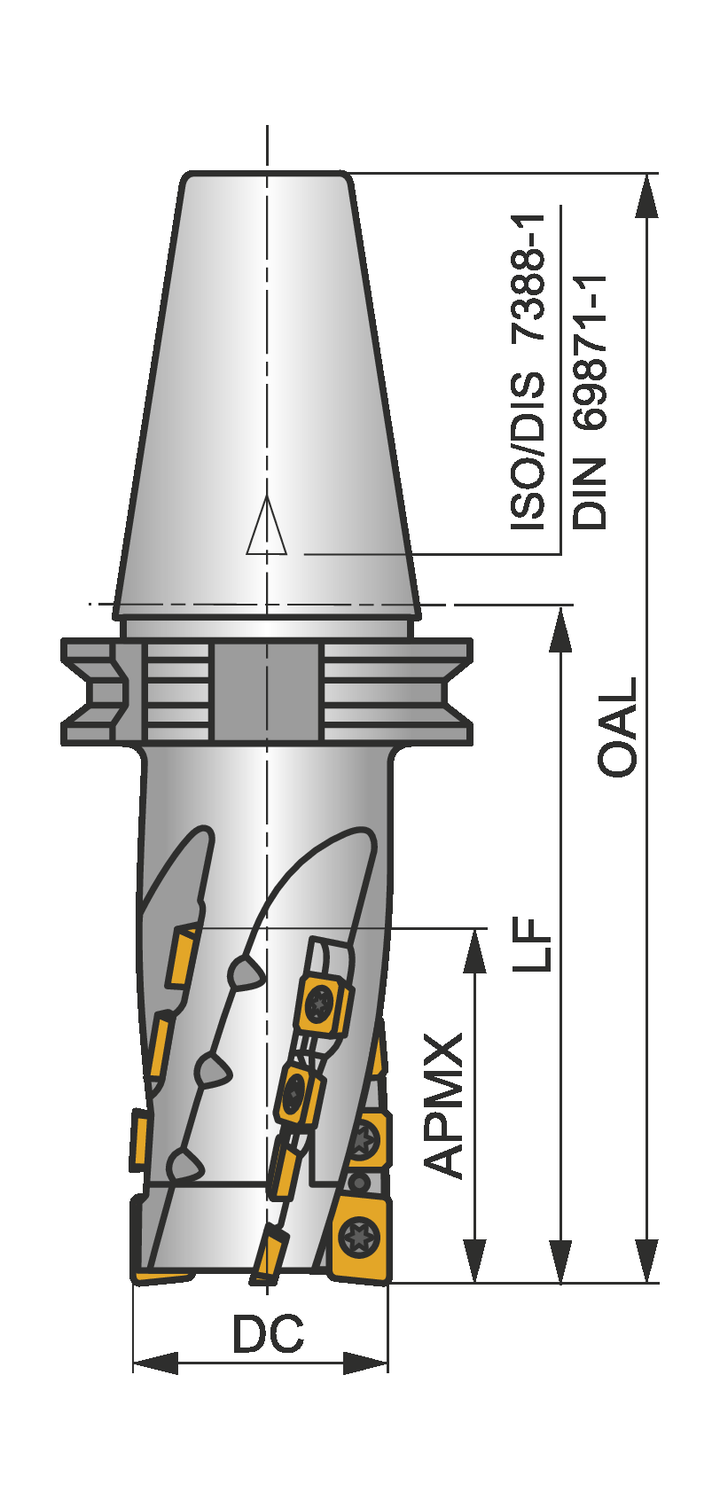

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)9.921"
Overall Length — mm (OAL)252.0 mm
Functional Length — mm (LF)150.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SSAP
ShankArbre DIN 69871-1
Direction of ToolGauche
Reference Numbers
EDP Number6757757
EAN3603602931139
File Type Download
63J4R150H50-SSAP74+21 — Line Drawing PDF Download
