16N2R027A16-SSD09
16N2R027A16-SSD09
16N2R027A16-SSD09

16N2R027A16-SSD09

UGC DOR6757771
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$393.00 CAD - $393.00 CAD
$393.00 CAD
$393.00 CAD - $393.00 CAD
$393.00 CAD

Vendu en lots de : 1

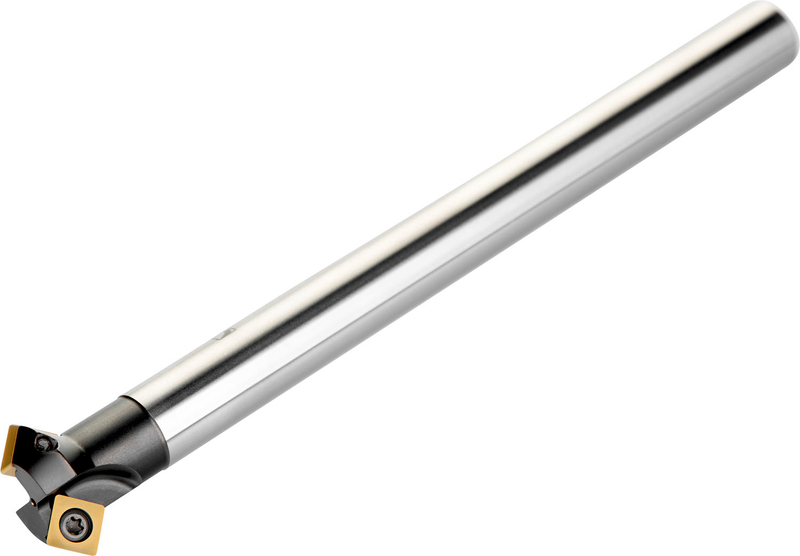

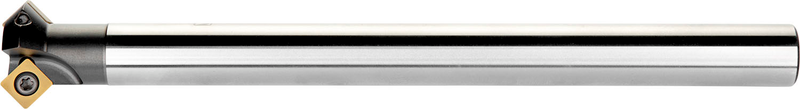

Fraise à chanfreiner à double géométrie négative qui utilise 2 plaquettes simples SDEW 0903.. ou SDEX 0903.., diamètre de coupe de 16 à 28 mm maximum avec un angle d'attaque de 45° et une queue cylindrique de 16 mm selon DIN 1835A, longueur totale de 200 mm pour le chanfreinage avec une profondeur de coupe maximale de 8,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16N2R027A16-SSD09
Product Number6757771
Product FamilySSD09
Insert Geometry
Depth of Cut Max — mm (APMX)4.5 mm

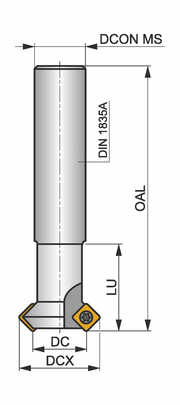

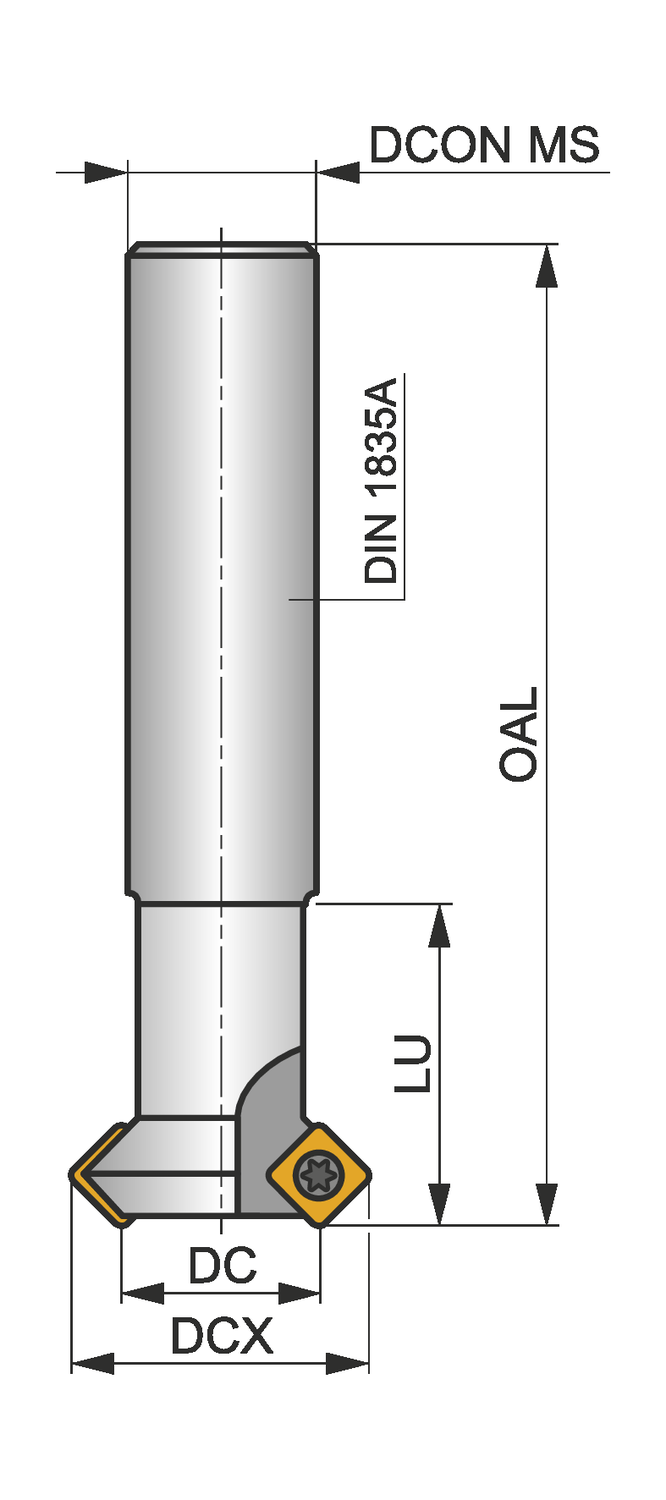

Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — mm (LU)27.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSSD09
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Reference Numbers
EDP Number6757771
EAN3603602931276
File Type Download
16N2R027A16-SSD09 — 3D Model STP Download
16N2R027A16-SSD09 — 2D Model DXF Download
16N2R027A16-SSD09 — Line Drawing PDF Download
