63J4R150H50-SSAP95-A

63J4R150H50-SSAP95-A

UGC DOR6757790
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,118.00 CAD - $2,118.00 CAD
$2,118.00 CAD
$2,118.00 CAD - $2,118.00 CAD
$2,118.00 CAD

Vendu en lots de : 1

Fraise à épaulement à queue allongée avec géométrie positive/négative qui utilise 2 plaquettes APE. 1504... et 20 plaquettes SPE. 1204... à simple face, diamètre de coupe 63 mm avec angle d'attaque de 90° et cône SK 50 selon ISO/DIS 7388-1, longueur fonctionnelle 95 mm et longueur totale 252 mm pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 95 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63J4R150H50-SSAP95-A
Product Number6757790
Product FamilyJ(T)-SSAP
Insert Geometry
Depth of Cut Max — mm (APMX)95.0 mm

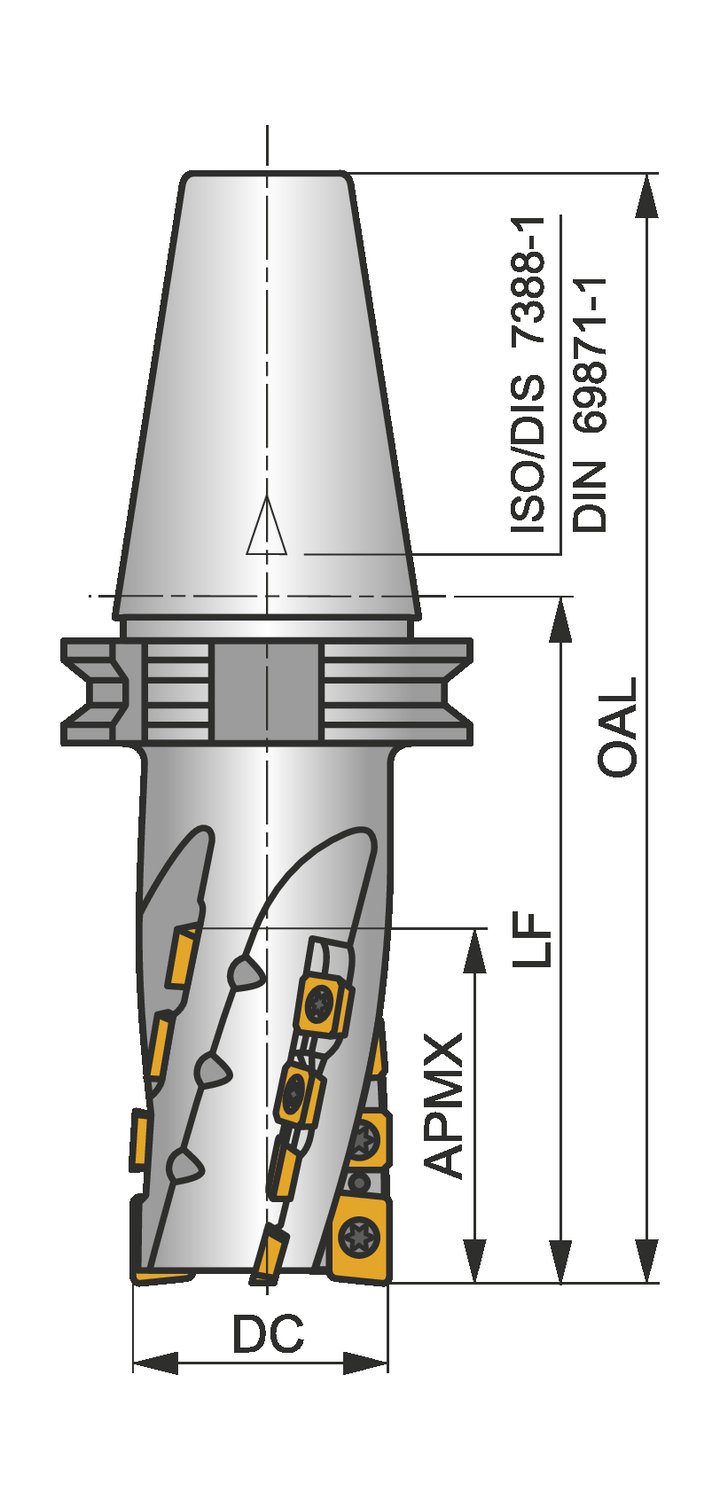

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)9.921"
Overall Length — mm (OAL)252.0 mm
Functional Length — mm (LF)150.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SSAP
ShankArbre DIN 69871-1
Direction of ToolD'accord
Reference Numbers
EDP Number6757790
EAN3603602931467
File Type Download
63J4R150H50-SSAP95-A — 3D Model STP Download
63J4R150H50-SSAP95-A — Line Drawing PDF Download
