63J4R146X50-SSAP95-A
63J4R146X50-SSAP95-A
63J4R146X50-SSAP95-A

63J4R146X50-SSAP95-A

UGC DOR6757815
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,118.00 CAD - $2,118.00 CAD
$2,118.00 CAD
$2,118.00 CAD - $2,118.00 CAD
$2,118.00 CAD

Vendu en lots de : 1

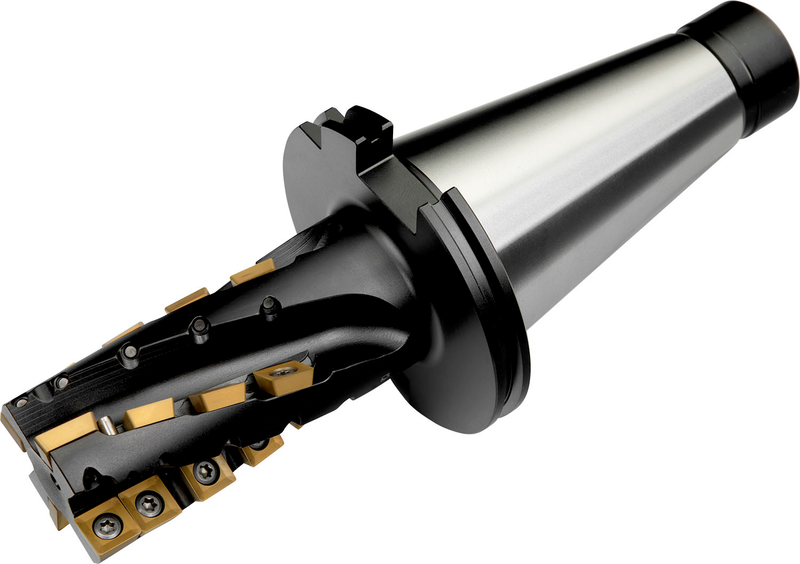

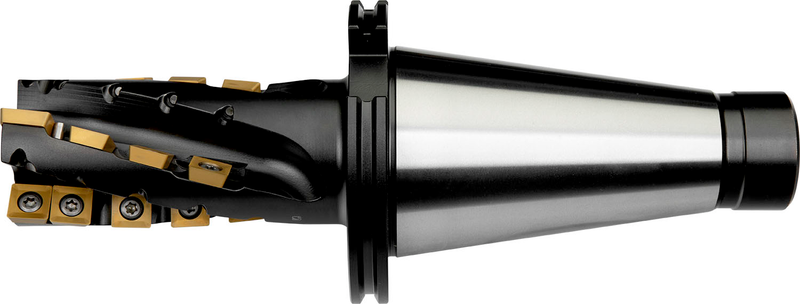

Fraise à épaule avec queue étendue à géométrie positive/négative qui utilise 2 plaquettes APE. 1504.. et 20 plaquettes SPE. 1204.. unilatérales, diamètre de coupe de 63 mm avec un angle d'attaque de 90° et un cône BT 50 selon JIS B 6339, une longueur fonctionnelle de 95 mm et une longueur totale de 273 mm pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 95 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63J4R146X50-SSAP95-A
Product Number6757815
Product FamilyJ(T)-SSAP
Insert Geometry
Depth of Cut Max — mm (APMX)95.0 mm

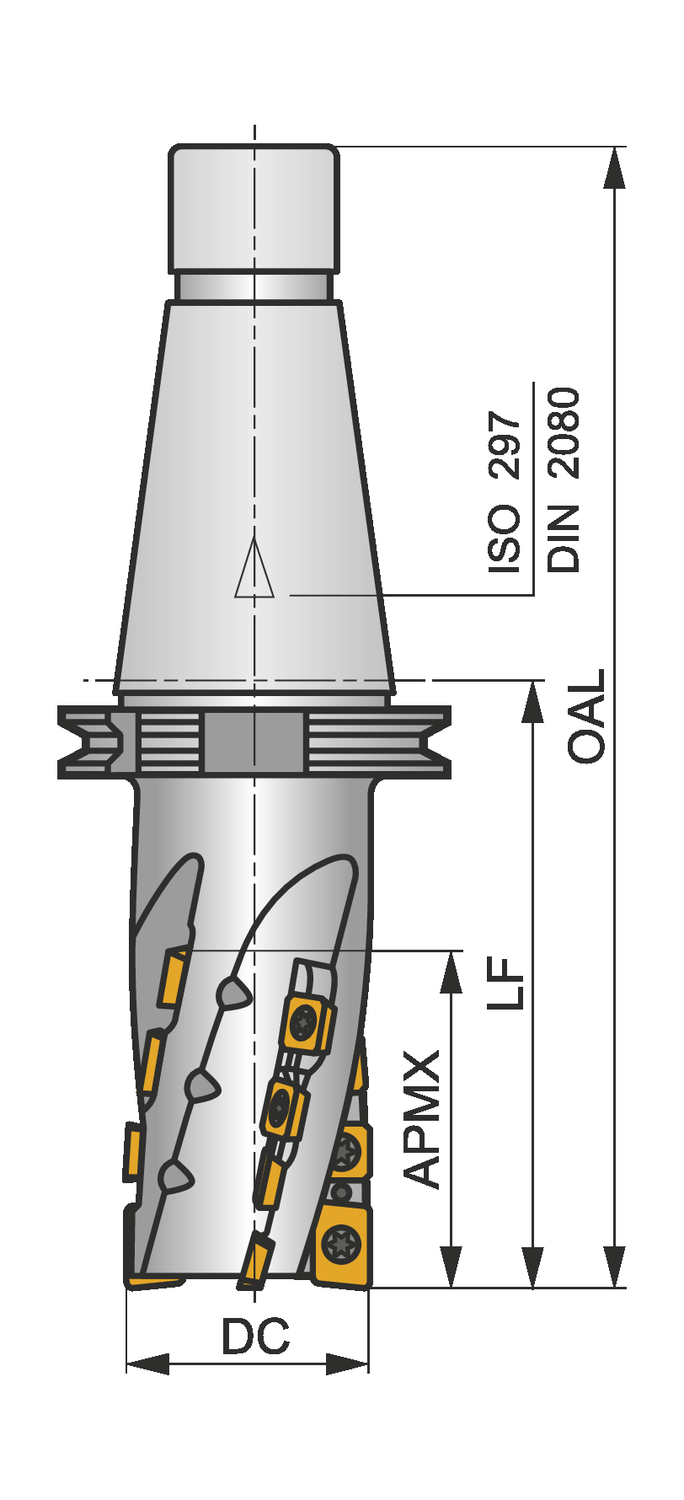

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)10.748"
Overall Length — mm (OAL)273.0 mm
Functional Length — mm (LF)146.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-PSAC
ShankCône DIN 2080-1
Direction of ToolD'accord
Reference Numbers
EDP Number6757815
EAN3603602931719
File Type Download
63J4R146X50-SSAP95-A — 3D Model STP Download
63J4R146X50-SSAP95-A — Line Drawing PDF Download
