63J4R146X50-SSAP74+21
63J4R146X50-SSAP74+21
63J4R146X50-SSAP74+21

63J4R146X50-SSAP74+21

UGC DOR6757818
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,521.00 CAD - $2,521.00 CAD
$2,521.00 CAD
$2,521.00 CAD - $2,521.00 CAD
$2,521.00 CAD

Vendu en lots de : 1

Fraise à épaulement à queue étendue et tête interchangeable, avec une géométrie positive/négative qui utilise 2 plaquettes simple face APE. 1504.. et 20 SPE. 1204.., d'un diamètre de coupe de 63 mm avec un angle d'attaque de 90° et une queue conique BT 50 selon JIS B 6339, d'une longueur utile de 95 mm et d'une longueur totale de 273 mm pour le surfaçage profond et le fraisage de rainures profondes avec une profondeur de coupe maximale de 95 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63J4R146X50-SSAP74+21
Product Number6757818
Product FamilyJ(T)-SSAP
Insert Geometry
Depth of Cut Max — mm (APMX)95.0 mm
Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Overall Length — in (OAL)10.748"
Overall Length — mm (OAL)273.0 mm
Functional Length — mm (LF)146.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SSAP
ShankArbre DIN 2080-1
Direction of ToolD'accord
Reference Numbers
EDP Number6757818
EAN3603602931740
File Type Download

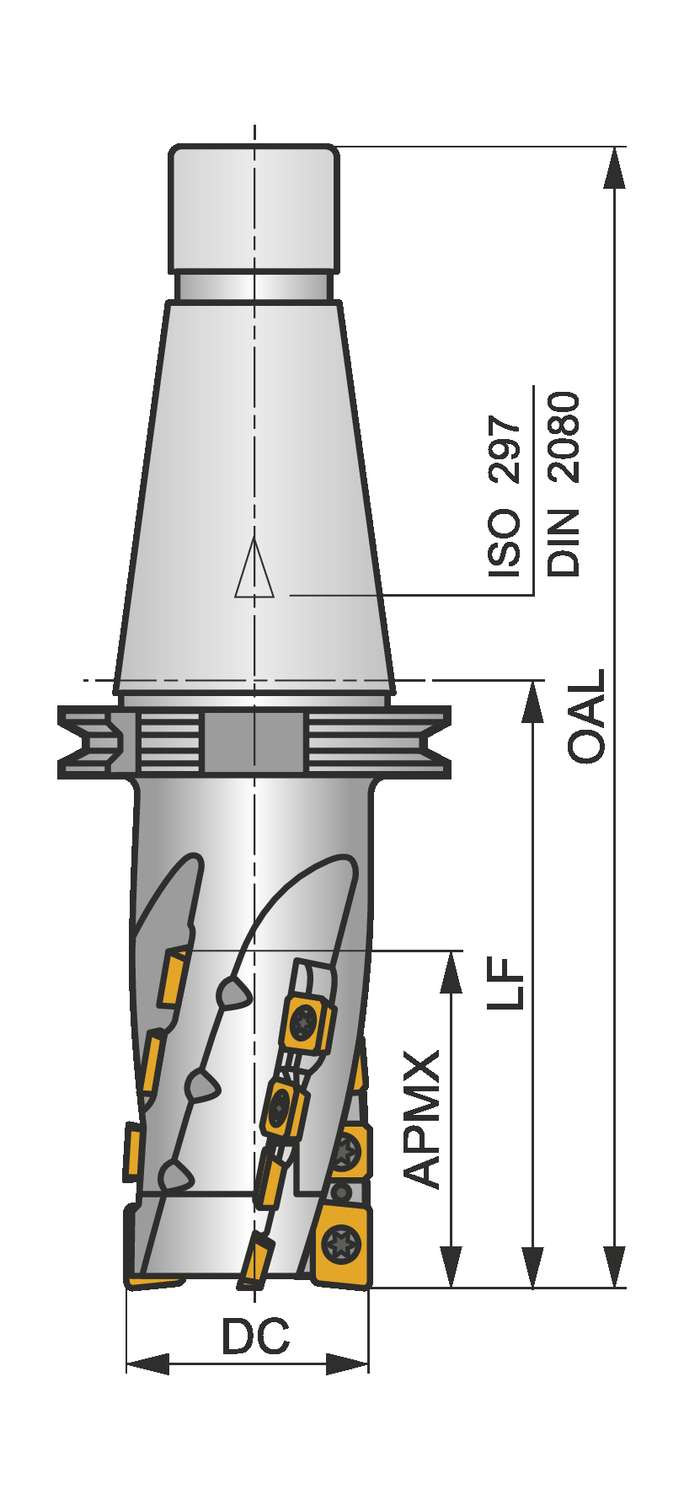

63J4R146X50-SSAP74+21 — Line Drawing PDF Download
