25N3R043E03-SSD09-A
25N3R043E03-SSD09-A
25N3R043E03-SSD09-A

25N3R043E03-SSD09-A

UGC DOR6757829
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$451.00 CAD - $451.00 CAD
$451.00 CAD
$451.00 CAD - $451.00 CAD
$451.00 CAD

Vendu en lots de : 1

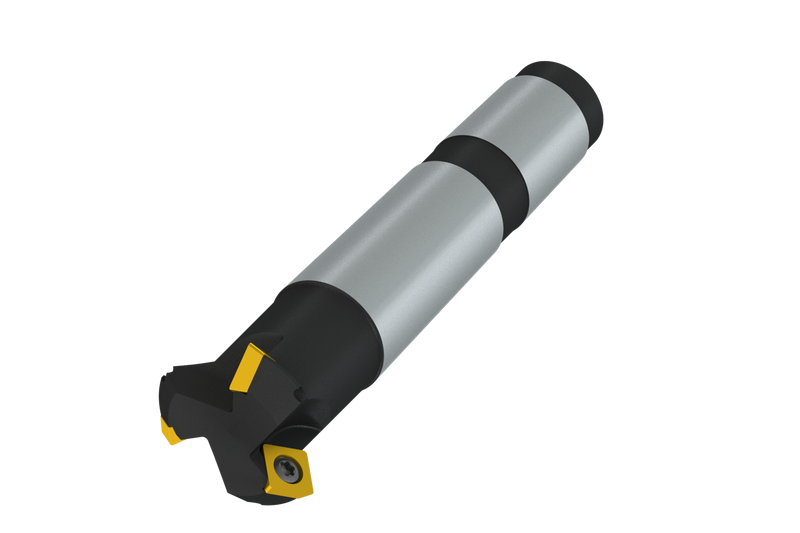

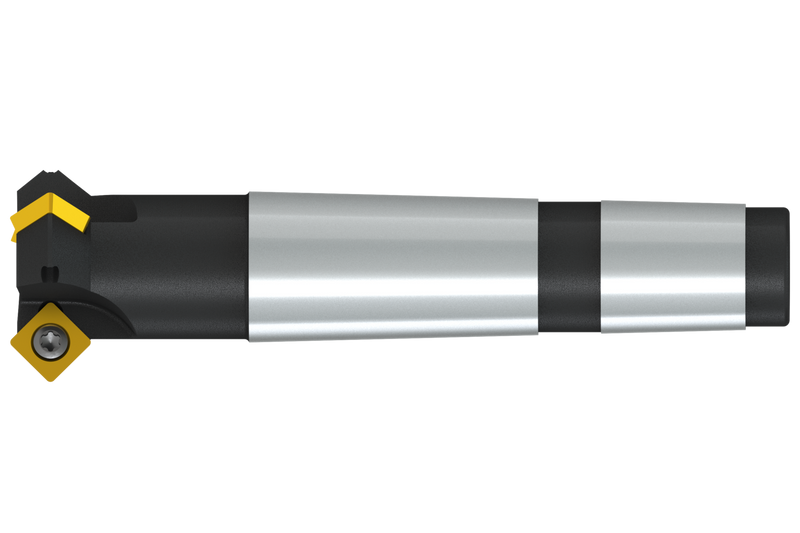

Fraise à chanfreiner avec une double géométrie négative qui utilise 3 inserts SDEW 0903... ou SDEX 0903... simple face, diamètre de coupe de 25 à 37 mm maximum avec un angle d'attaque de 45° et une queue de cône morse MT 3 selon DIN 228-1A, longueur totale de 124 mm pour le chanfreinage avec une profondeur de coupe maximale de 8,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25N3R043E03-SSD09-A
Product Number6757829
Product FamilySSD09
Insert Geometry
Depth of Cut Max — mm (APMX)4.5 mm

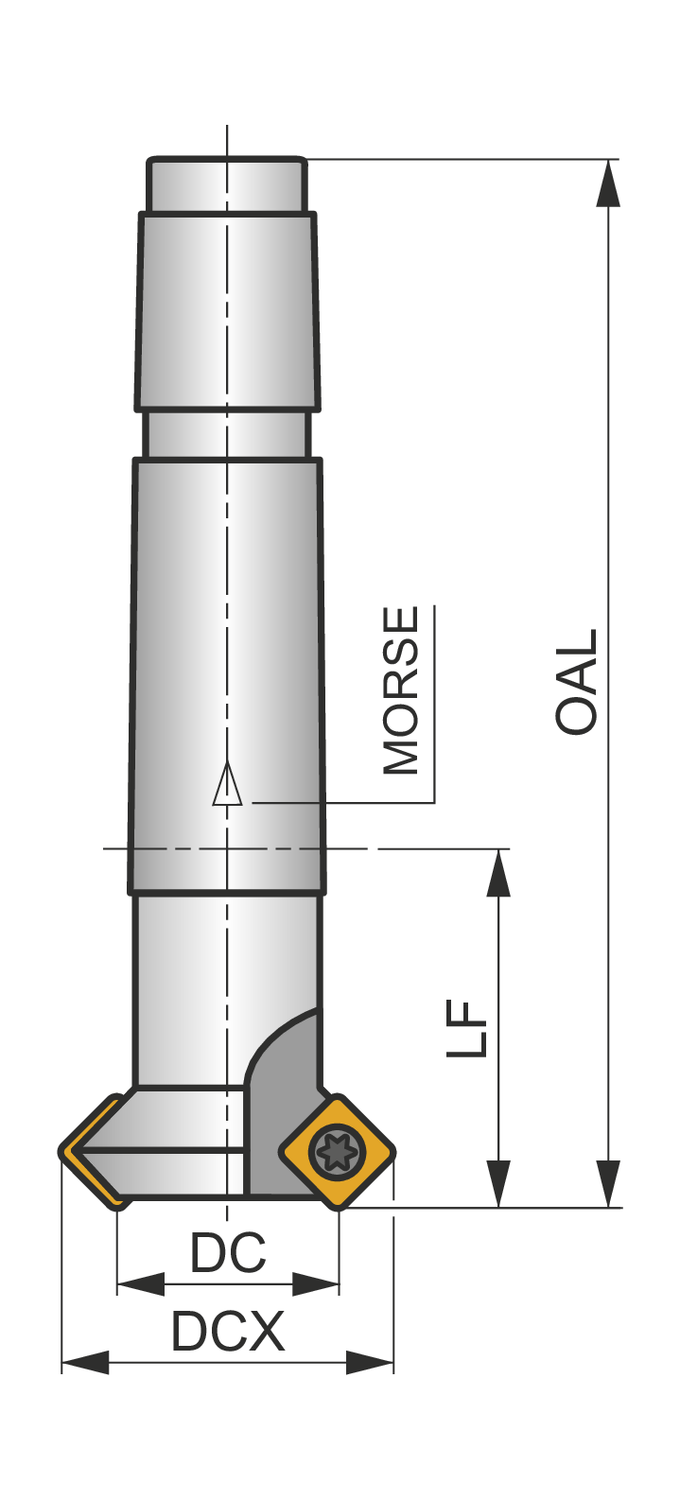

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)4.882"
Overall Length — mm (OAL)124.0 mm
Functional Length — mm (LF)43.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSSD09
ShankCône Morse DIN 228-1
Direction of ToolD'accord
Reference Numbers
EDP Number6757829
EAN3603602931856
File Type Download
25N3R043E03-SSD09-A — 3D Model STP Download
25N3R043E03-SSD09-A — 2D Model DXF Download
25N3R043E03-SSD09-A — Line Drawing PDF Download
