PSSNR 5050 T 2509
PSSNR 5050 T 2509
PSSNR 5050 T 2509

PSSNR 5050 T 2509

UGC DOR6757888
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$445.00 CAD - $445.00 CAD
$445.00 CAD
$445.00 CAD - $445.00 CAD
$445.00 CAD

Vendu en lots de : 1

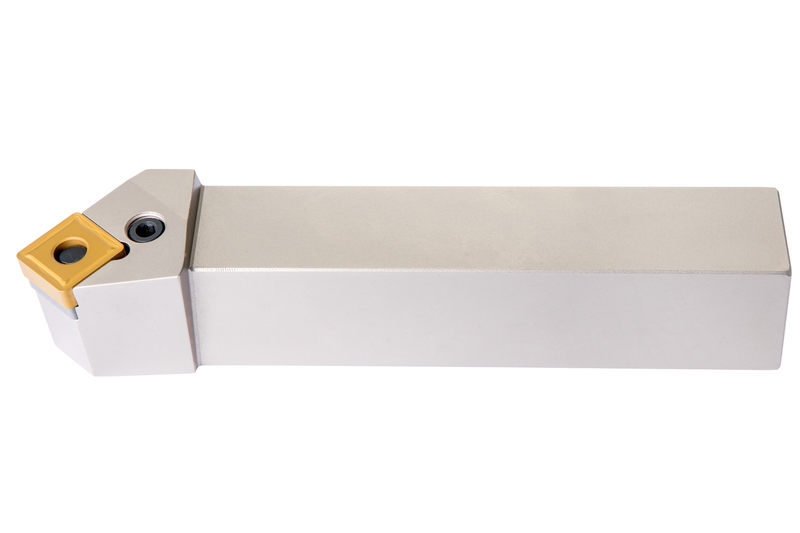

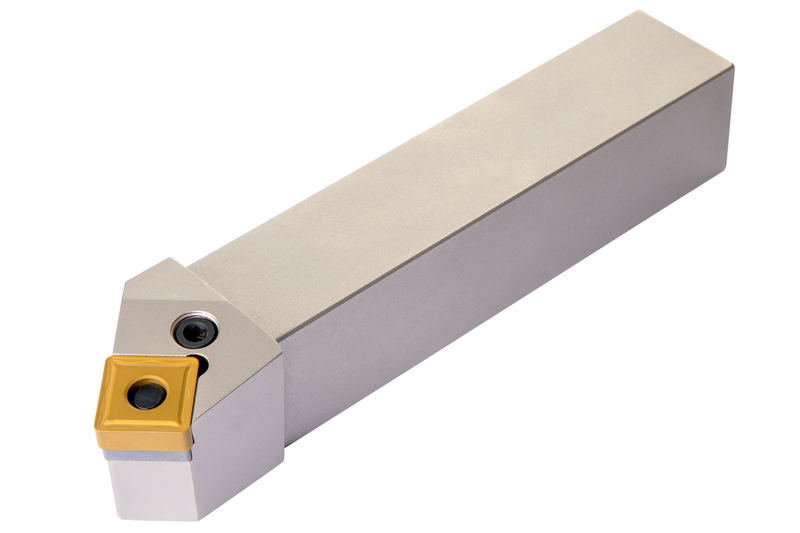

Porte-outil à levier pour insert carré négatif avec un diamètre de cercle inscrit de 25,4 mm, épaisseur de 9,52 mm (désignation ISO SN.. 2509..), coupe latérale à droite à 45° avec corps déporté, hauteur d'outil de 50 mm x largeur de 50 mm x longueur de 300 mm pour chanfreinage, tournage conique, copiage unidirectionnel et multidirectionnel, dressage sans épaulement et chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSSNR 5050 T 2509
Product Number6757888
Product FamilyPSSN(RL) EXT

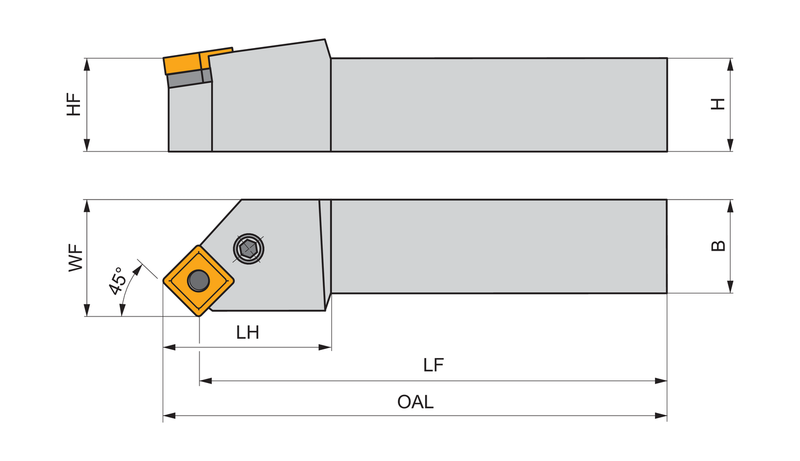

Dimensions
Overall Length — in (OAL)12.441"
Overall Length — mm (OAL)316.0 mm
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Shank Height — mm (H)1.969 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757888
EAN3603602932440
File Type Download
PSSNR 5050 T 2509 — 3D Model STP Download
PSSNR 5050 T 2509 — 2D Model DXF Download
PSSNR 5050 T 2509 — Line Drawing PDF Download
