PSSNL 5050 T 2509
PSSNL 5050 T 2509
PSSNL 5050 T 2509

PSSNL 5050 T 2509

UGC DOR6757889
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$445.00 CAD - $445.00 CAD
$445.00 CAD
$445.00 CAD - $445.00 CAD
$445.00 CAD

Vendu en lots de : 1

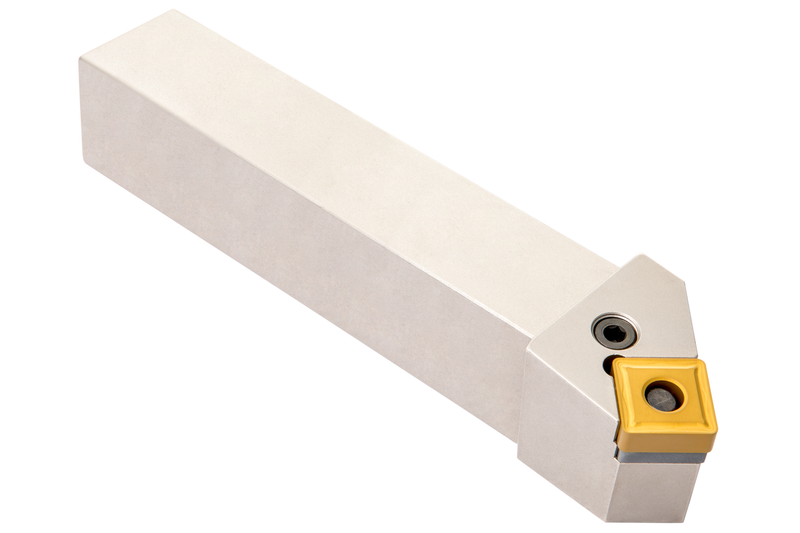

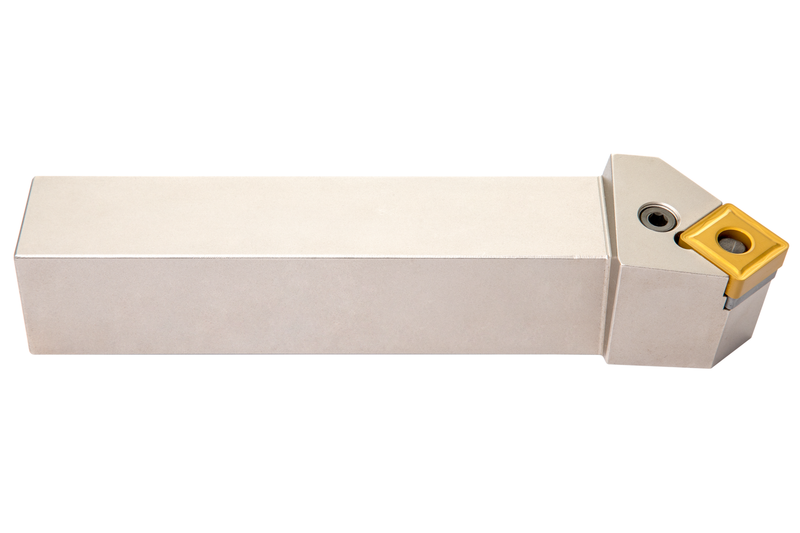

Outil de tournage à levier pour plaquette négative carrée avec un diamètre de cercle inscrit de 25,4 mm, épaisseur de 9,52 mm (désignation ISO SN.. 2509.. ), coupe latérale à gauche à 45° avec corps déporté, hauteur d'outil de 50 mm x largeur de 50 mm x longueur de 300 mm pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel, le dressage sans épaulement et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSSNL 5050 T 2509
Product Number6757889
Product FamilyPSSN(RL) EXT

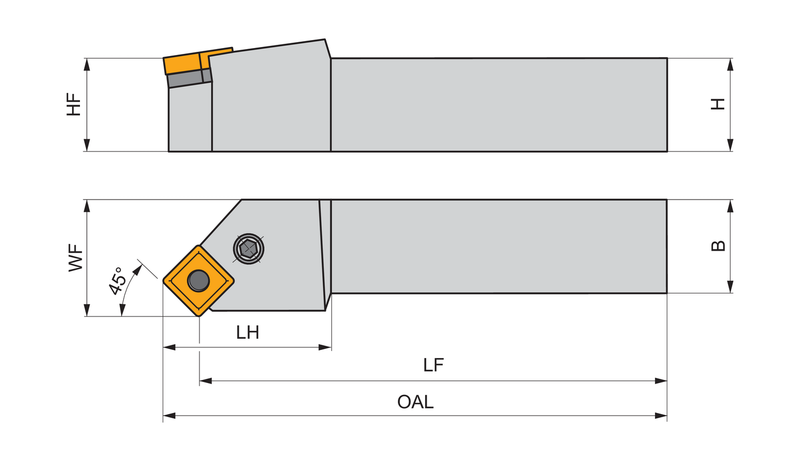

Dimensions
Overall Length — in (OAL)12.441"
Overall Length — mm (OAL)316.0 mm
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Shank Height — mm (H)1.969 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757889
EAN3603602932457
File Type Download
PSSNL 5050 T 2509 — 3D Model STP Download
PSSNL 5050 T 2509 — 2D Model DXF Download
PSSNL 5050 T 2509 — Line Drawing PDF Download
