XLCFN 2601 J 1,60
XLCFN 2601 J 1,60
XLCFN 2601 J 1,60

XLCFN 2601 J 1,60

UGC DOR6757901
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$140.00 CAD - $140.00 CAD
$140.00 CAD
$140.00 CAD - $140.00 CAD
$140.00 CAD

Vendu en lots de : 1

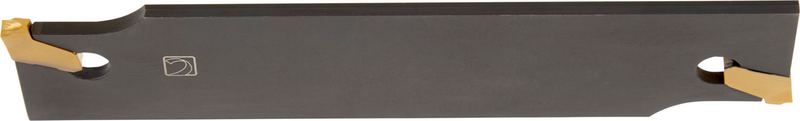

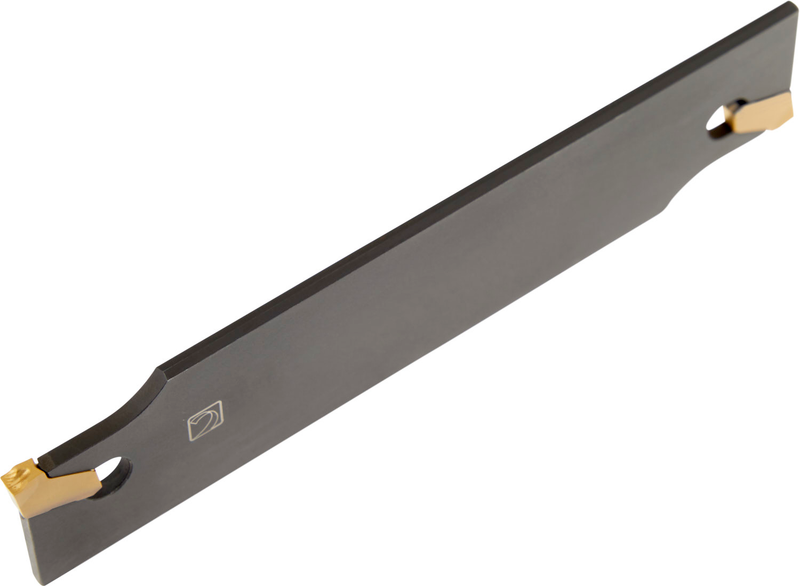

Lame d'outil à tronçonner et à gorge à serrage rapide pour plaquette à une arête de coupe de 1,5-1,6mm (désignation LFMX 1.5-. / LFMX 1.6-. ), assemblage de type outil avec 26-DU.. pour une profondeur de gorge maximale de 15mm, hauteur de lame d'outil de 26mm et longueur de 110mm pour le rainurage radial profond, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XLCFN 2601 J 1,60
Product Number6757901
Product FamilyXLCFN B
Insert Geometry
Depth of Cut Max — in (APMX)0.591"
Dimensions
Functional Length — in (LF)4.331"
Functional Length — mm (LF)110.0 mm
Shank Height — mm (H)1.024 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6757901
EAN3603602932570
File Type Download

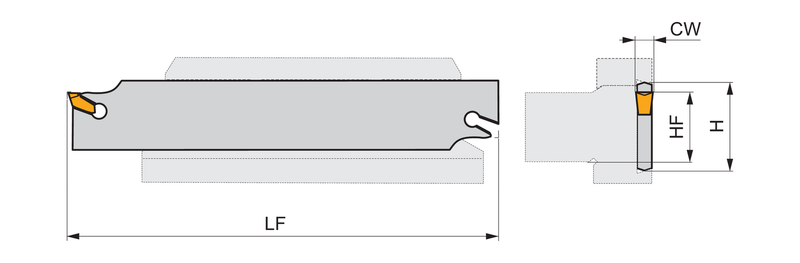

XLCFN 2601 J 1,60 — Line Drawing PDF Download
