PDNNR 3225 P 15
PDNNR 3225 P 15
PDNNR 3225 P 15

PDNNR 3225 P 15

UGC DOR6757903
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

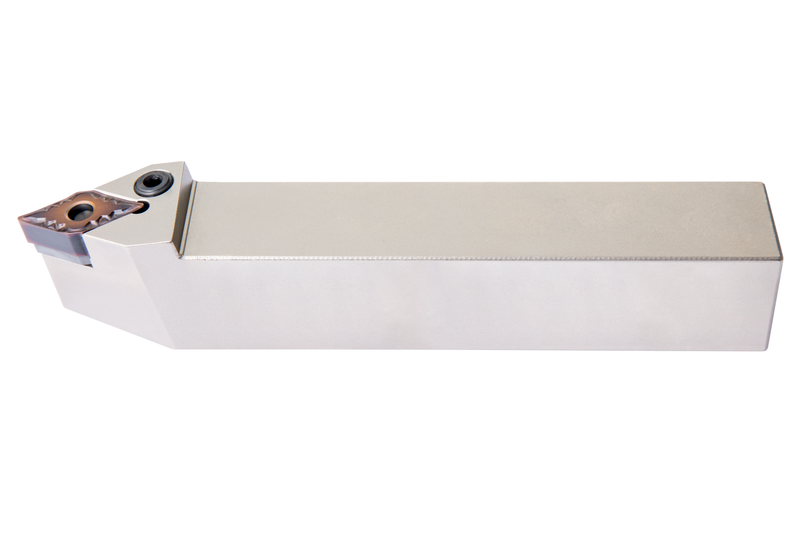

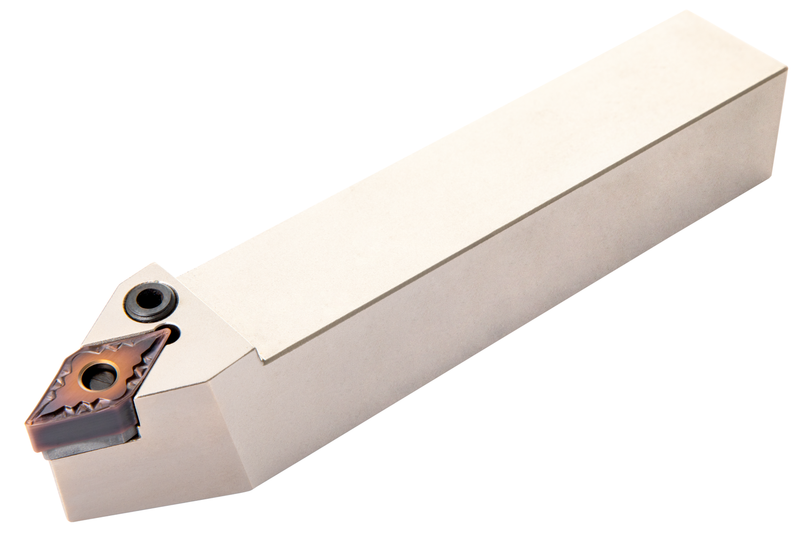

Outil de tournage à levier pour plaquette négative en forme de losange à 55° avec un diamètre de cercle inscrit de 12,7 mm, 6,35 mm d'épaisseur (désignation ISO DN.. 1506.. ), coupe latérale à droite de 62°30' avec queue droite, hauteur de l'outil 32 mm x largeur 25 mm x longueur 170 mm pour le tournage de copiage unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDNNR 3225 P 15
Product Number6757903
Product FamilyPDNN(RL) EXT

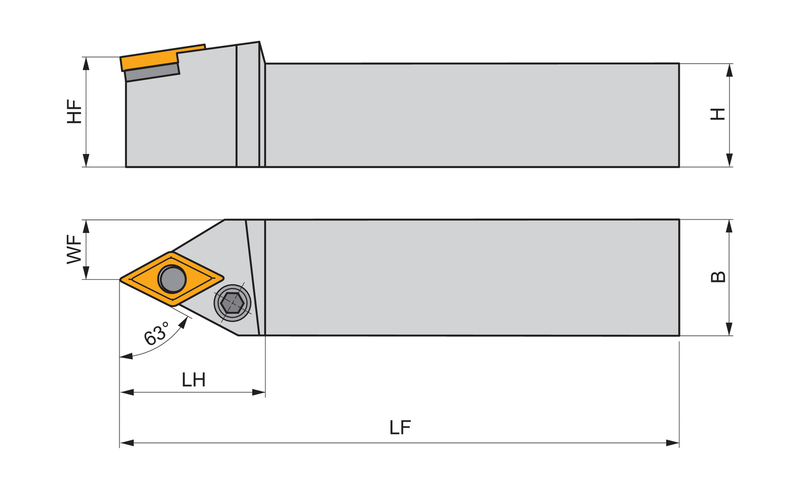

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757903
EAN3603602932594
File Type Download
PDNNR 3225 P 15 — 3D Model STP Download
PDNNR 3225 P 15 — 2D Model DXF Download
PDNNR 3225 P 15 — Line Drawing PDF Download
