PRDCN 4040 S 20
PRDCN 4040 S 20
PRDCN 4040 S 20

PRDCN 4040 S 20

UGC DOR6757911
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

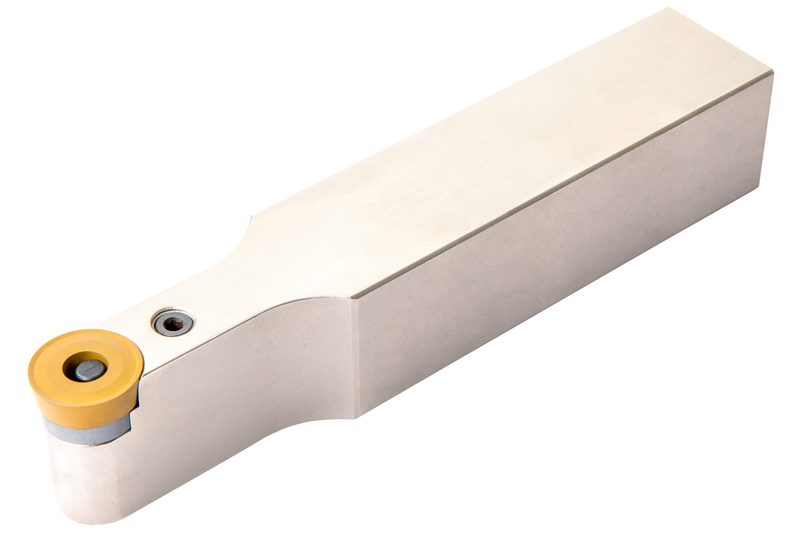

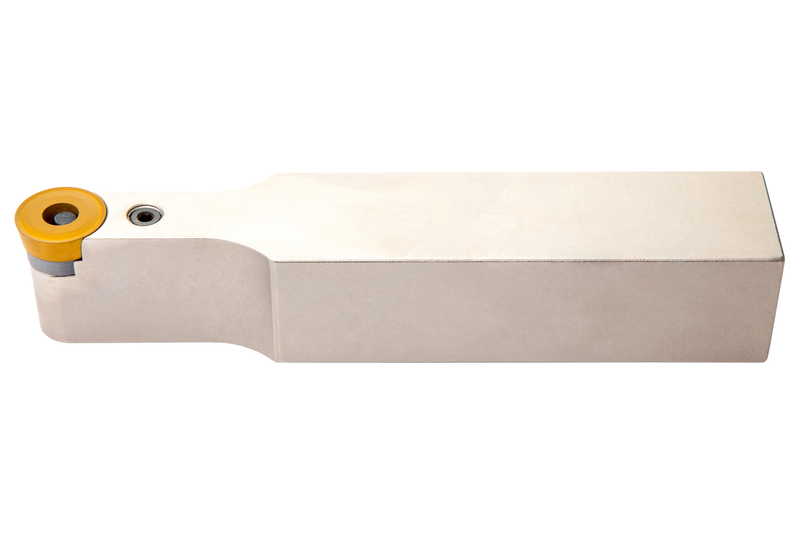

Outil de tournage à levier pour le maintien d'un insert positif rond d'un diamètre de 20 mm, d'une épaisseur de 6,35 mm (désignation ISO RCMX 2006MO), main neutre et coupe frontale avec une queue droite, hauteur d'outil de 40 mm x largeur de 40 mm x longueur de 250 mm pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PRDCN 4040 S 20
Product Number6757911
Product FamilyPRDCN EXT
Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Shank Height — mm (H)1.575 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757911
EAN3603602932679
File Type Download
PRDCN 4040 S 20 — 3D Model STP Download
PRDCN 4040 S 20 — 2D Model DXF Download

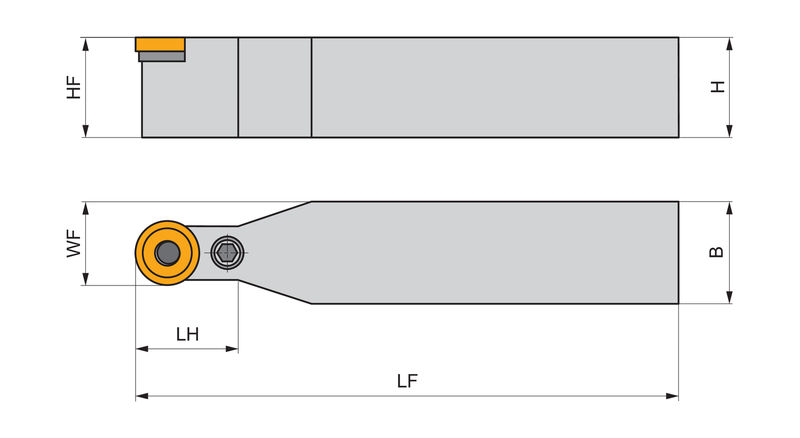

PRDCN 4040 S 20 — Line Drawing PDF Download
