DDJNL 3225 P 15
DDJNL 3225 P 15

DDJNL 3225 P 15

UGC DOR6757939
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

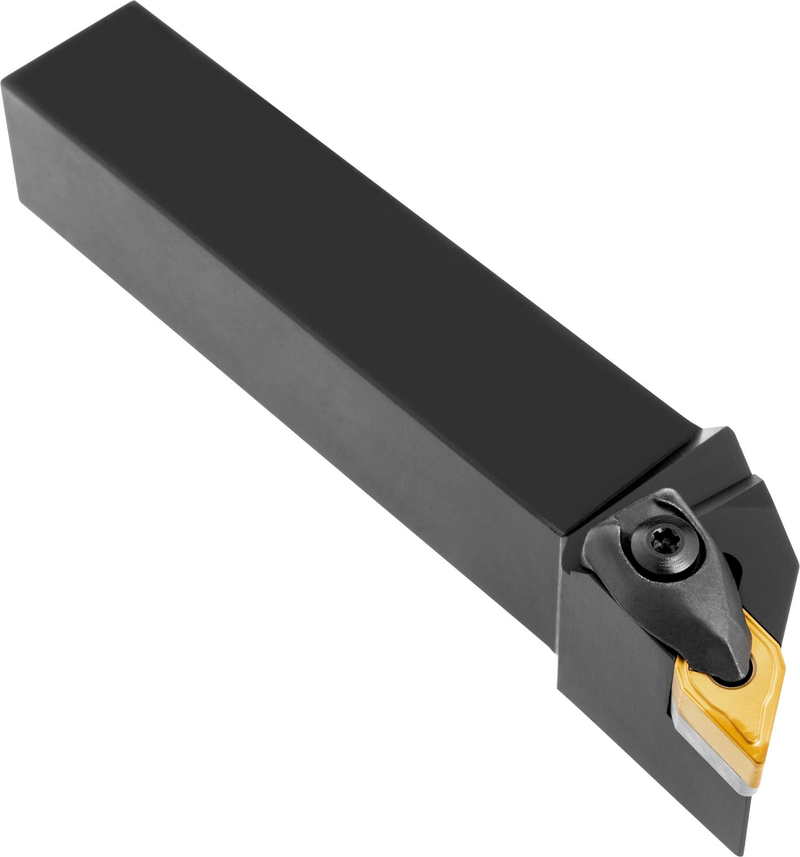

Outil de chariotage à double serrage pour plaquette négative en losange 55° avec un diamètre de cercle inscrit de 12,7 mm, 6,35 mm d'épaisseur (désignation ISO DN.. 1506..), coupe à gauche 93° avec un corps déporté, hauteur d'outil 32 mm x largeur 25 mm x longueur 170 mm pour chariotage conique, chariotage de reproduction unidirectionnel et multidirectionnel, et chariotage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DDJNL 3225 P 15
Product Number6757939
Product FamilyDDJN(RL) EXT

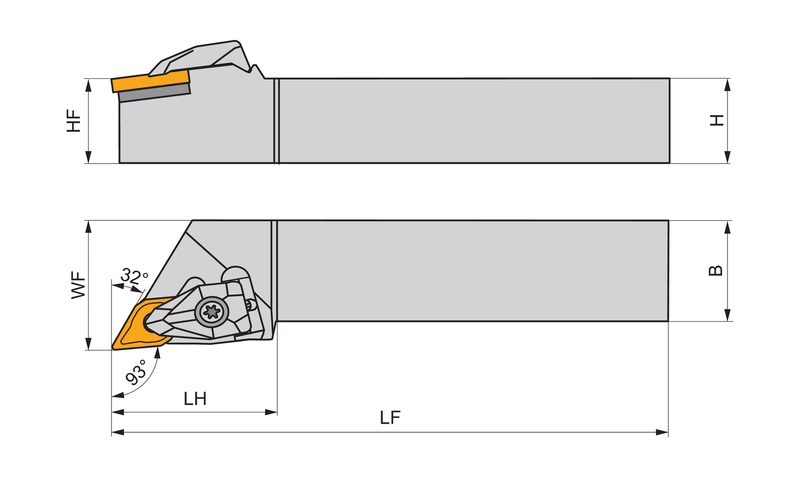

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757939
EAN3603602932952
File Type Download
DDJNL 3225 P 15 — 3D Model STP Download
DDJNL 3225 P 15 — Line Drawing PDF Download
