DSBNR 3225 P 15
DSBNR 3225 P 15

DSBNR 3225 P 15

UGC DOR6757942
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

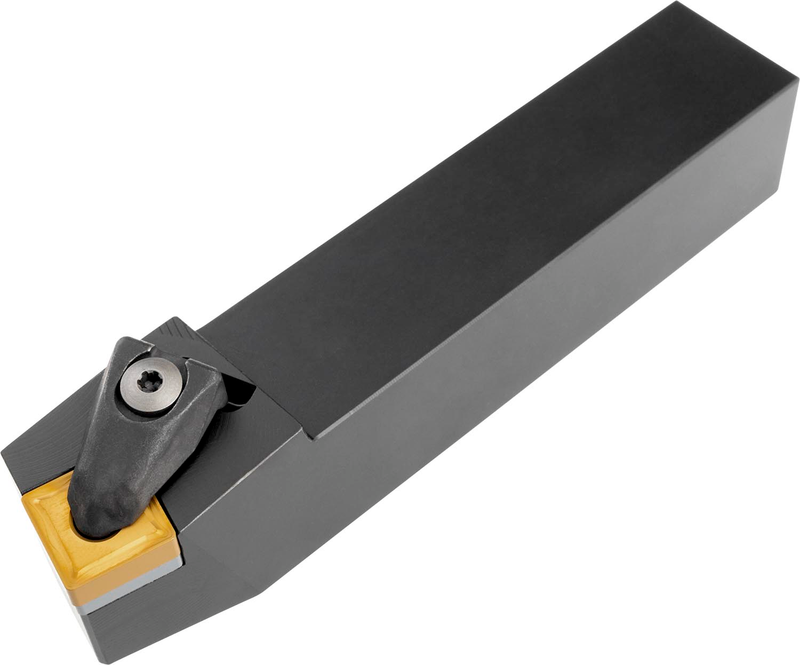

Outil de tournage à double bridage pour plaquette carrée négative avec un diamètre de cercle inscrit de 15,875mm, épaisseur de 6,35mm (désignation ISO SN.. 1506.. ), coupe latérale à droite de 75° avec queue droite, hauteur d'outil de 32mm x largeur de 25mm x longueur de 170mm pour le tournage conique et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSBNR 3225 P 15
Product Number6757942
Product FamilyDSBN(RL) EXT
Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757942
EAN3603602932983
File Type Download
DSBNR 3225 P 15 — 3D Model STP Download

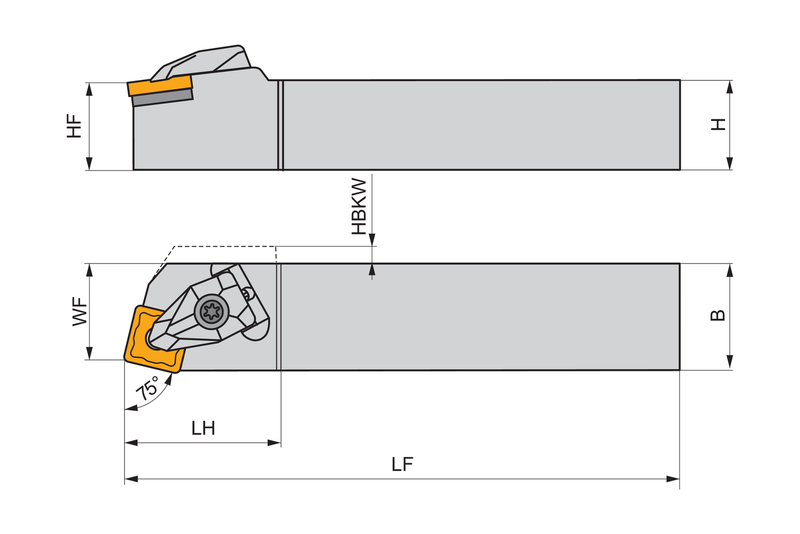

DSBNR 3225 P 15 — Line Drawing PDF Download
