DTGNR 2020 K 16
DTGNR 2020 K 16
DTGNR 2020 K 16

DTGNR 2020 K 16

UGC DOR6757948
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.00 CAD - $156.00 CAD
$156.00 CAD
$156.00 CAD - $156.00 CAD
$156.00 CAD

Vendu en lots de : 1

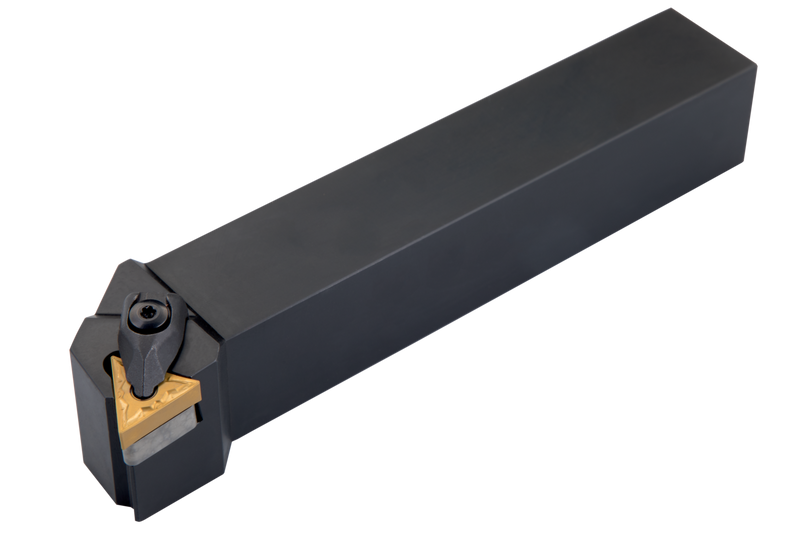

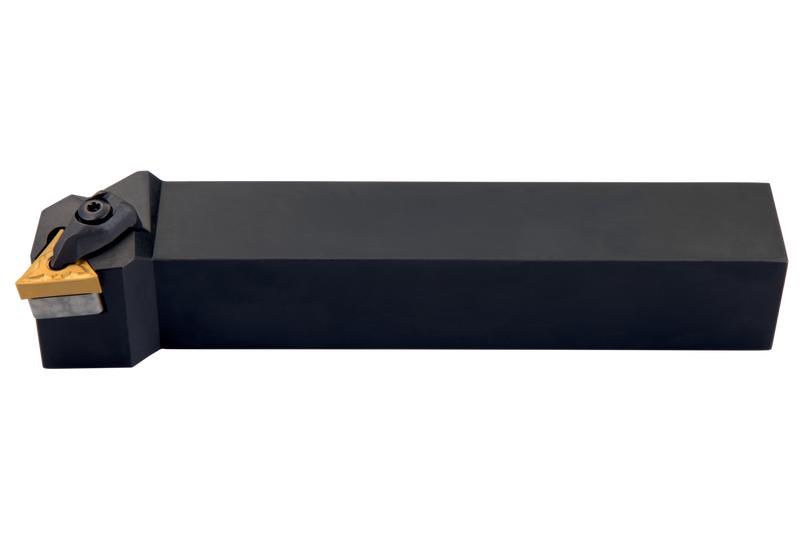

Outil de tournage à double bridage pour plaquette négative triangulaire avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 4,76 mm (désignation ISO TN.. 1604..), coupe à droite à 90° avec un corps déporté, hauteur d'outil de 20 mm x largeur de 20 mm x longueur de 125 mm pour le tournage conique et le chariotage avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DTGNR 2020 K 16
Product Number6757948
Product FamilyDTGN(RL) EXT

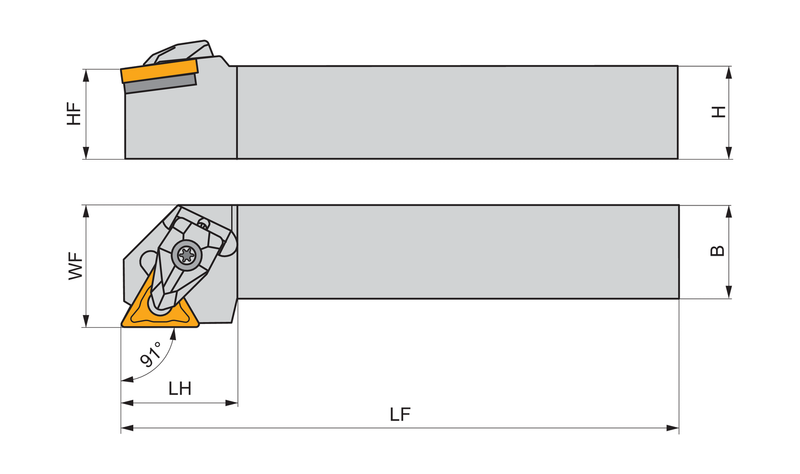

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757948
EAN3603602933041
File Type Download
DTGNR 2020 K 16 — 3D Model STP Download
DTGNR 2020 K 16 — Line Drawing PDF Download
