DTGNL 2020 K 16
DTGNL 2020 K 16

DTGNL 2020 K 16

UGC DOR6757949
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.00 CAD - $156.00 CAD
$156.00 CAD
$156.00 CAD - $156.00 CAD
$156.00 CAD

Vendu en lots de : 1

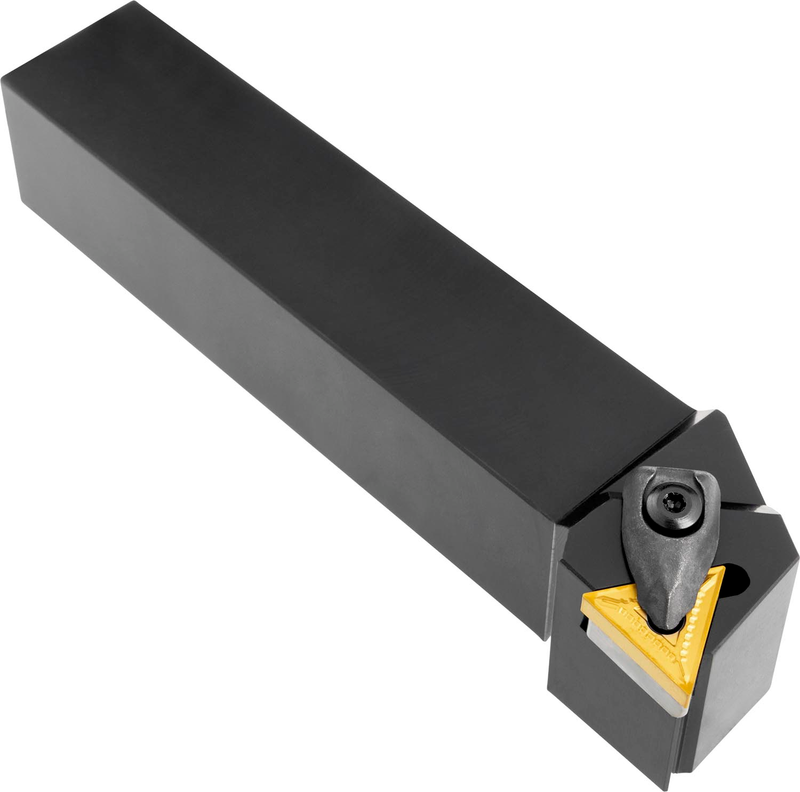

Outil de chariotage à double serrage pour plaquette négative triangulaire avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO TN.. 1604.. ), coupe à gauche 90° avec queue déportée, hauteur d'outil de 20mm x largeur de 20mm x longueur de 125mm pour le tournage conique et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DTGNL 2020 K 16
Product Number6757949
Product FamilyDTGN(RL) EXT

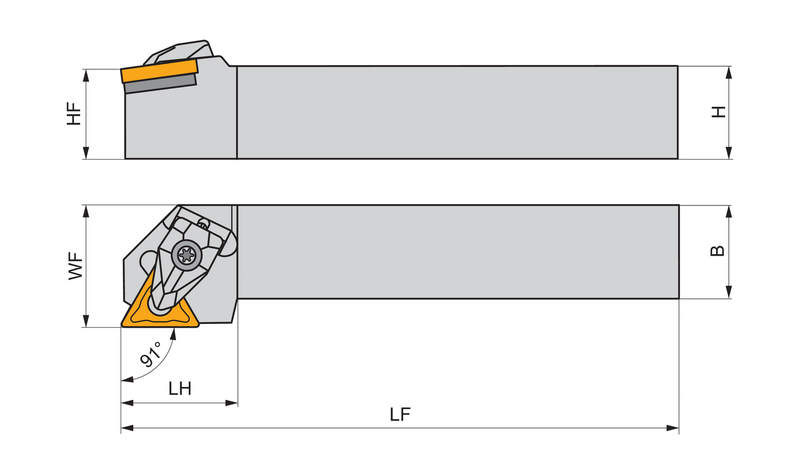

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757949
EAN3603602933058
File Type Download
DTGNL 2020 K 16 — 3D Model STP Download
DTGNL 2020 K 16 — Line Drawing PDF Download
