DTGNR 2525 M 16
DTGNR 2525 M 16
DTGNR 2525 M 16

DTGNR 2525 M 16

UGC DOR6757950
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

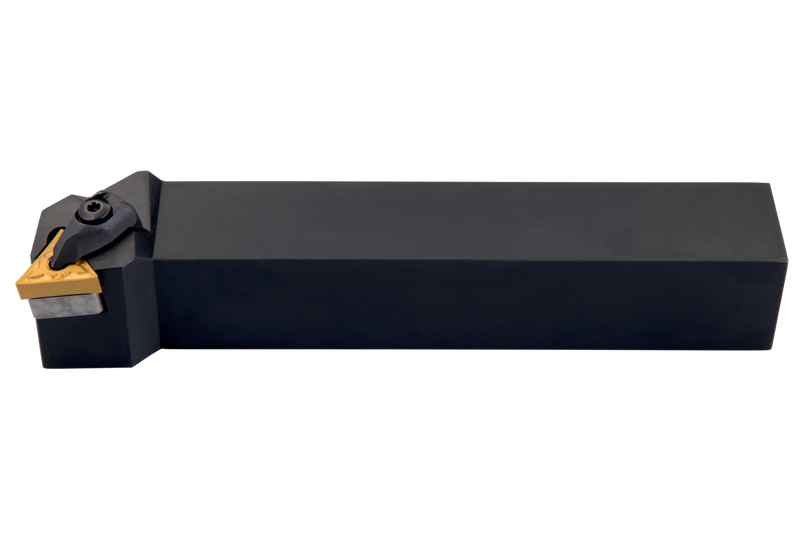

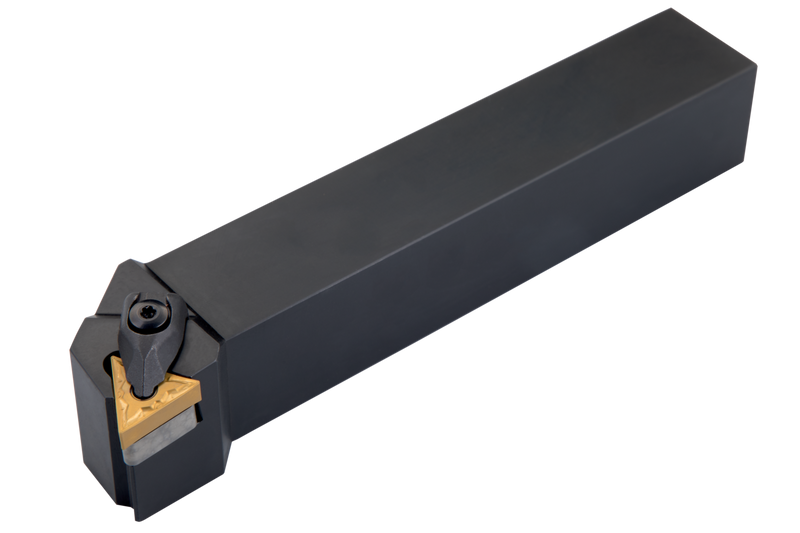

Outil de chariotage à double serrage pour plaquette négative triangulaire avec un diamètre de cercle inscrit de 9,525mm, 4,76mm d'épaisseur (désignation ISO TN.. 1604.. ), coupe à droite à 90° avec un corps déporté, hauteur d'outil de 25mm x largeur de 25mm x 150mm de long pour le chariotage conique et le chariotage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DTGNR 2525 M 16
Product Number6757950
Product FamilyDTGN(RL) EXT

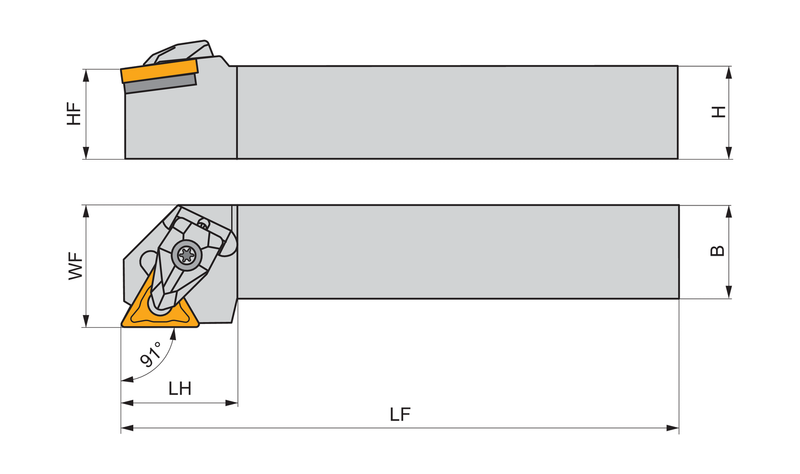

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757950
EAN3603602933065
File Type Download
DTGNR 2525 M 16 — 3D Model STP Download
DTGNR 2525 M 16 — Line Drawing PDF Download
