DTGNL 2525 M 16
DTGNL 2525 M 16

DTGNL 2525 M 16

UGC DOR6757951
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

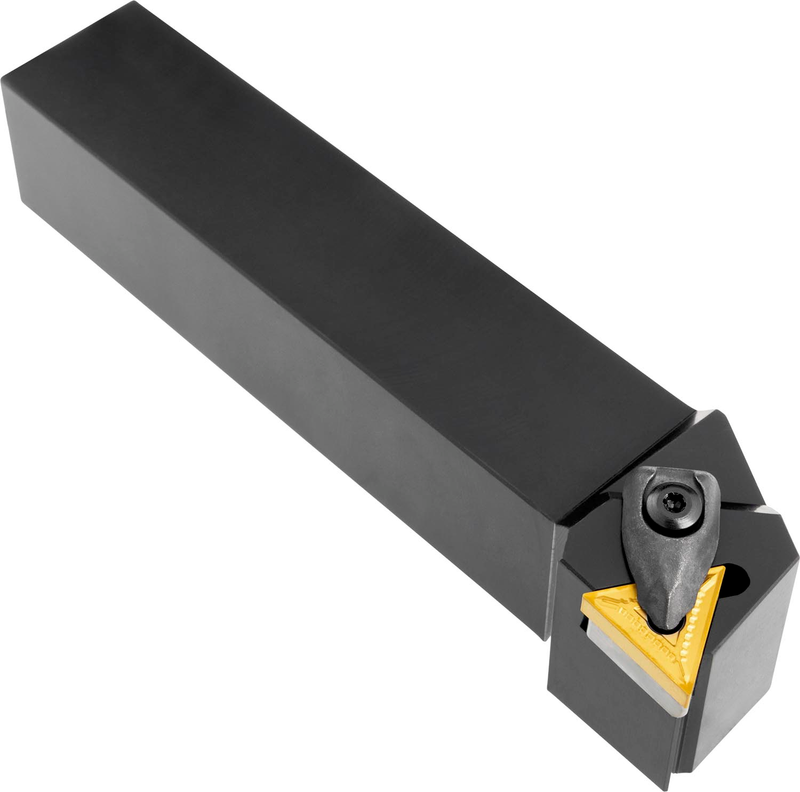

Outil de chariotage à double serrage pour plaquette négative triangulaire de diamètre de cercle inscrit 9,525 mm, épaisseur 4,76 mm (désignation ISO TN.. 1604..), coupe à gauche à 90° avec queue déportée, hauteur d'outil 25 mm x largeur 25 mm x longueur 150 mm pour le chariotage conique et le chariotage longitudinal avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DTGNL 2525 M 16
Product Number6757951
Product FamilyDTGN(RL) EXT

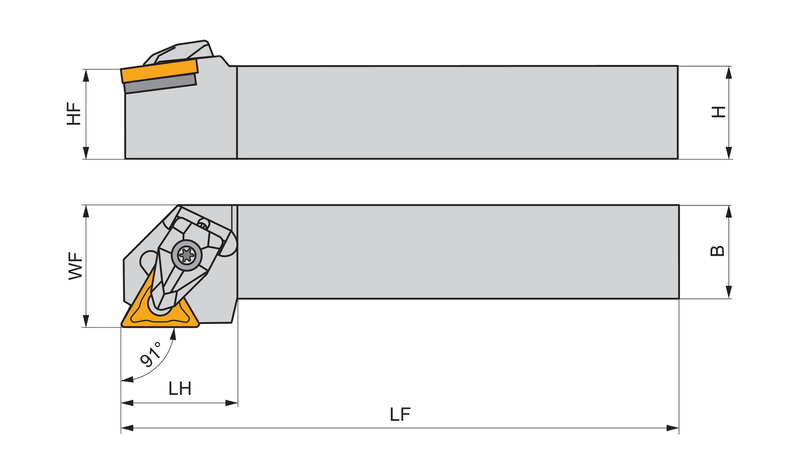

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757951
EAN3603602933072
File Type Download
DTGNL 2525 M 16 — 3D Model STP Download
DTGNL 2525 M 16 — Line Drawing PDF Download
