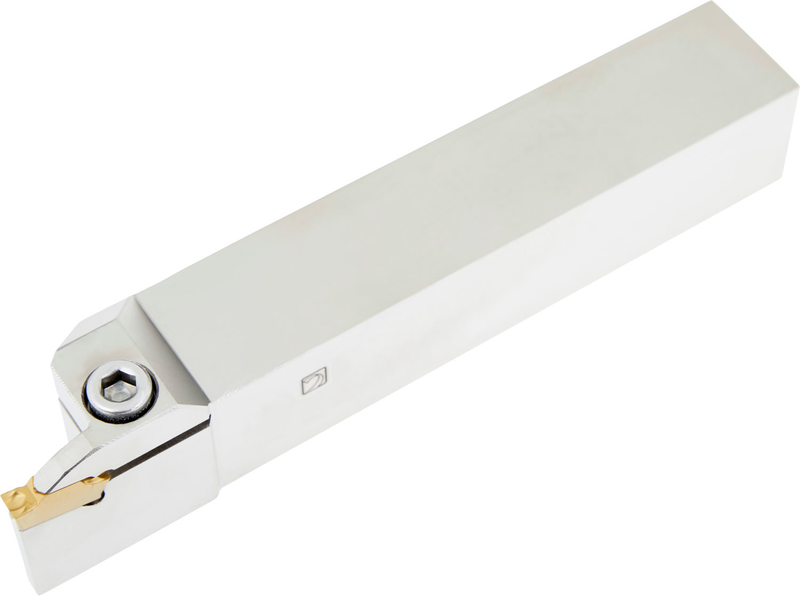

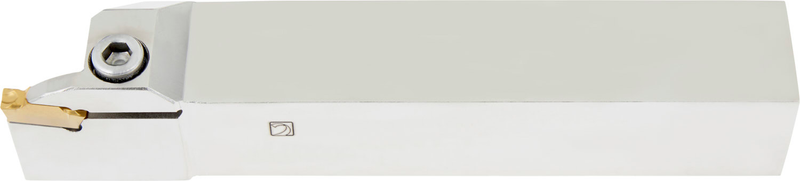

GFIR 2525 M 03
GFIR 2525 M 03
GFIR 2525 M 03

GFIR 2525 M 03

UGC DOR6757967
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$240.00 CAD - $240.00 CAD
$240.00 CAD
$240.00 CAD - $240.00 CAD
$240.00 CAD

Vendu en lots de : 1

Outil de gorge à bride supérieure pour plaquette double ou simple de 16,4 mm de long et de 3 mm de largeur de coupe (désignation LCM. 0316.. ), droitier avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximal de 18 mm, hauteur de queue 25 mm, largeur 25 mm et longueur d'outil 150 mm pour le chariotage en copiage multi-directionnel, le rainurage radial peu profond et profond, le tournage de gorge radiale, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GFIR 2525 M 03
Product Number6757967
Product FamilyDDFT(SF) EXT
Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)0.984 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757967
EAN3603602933232
File Type Download

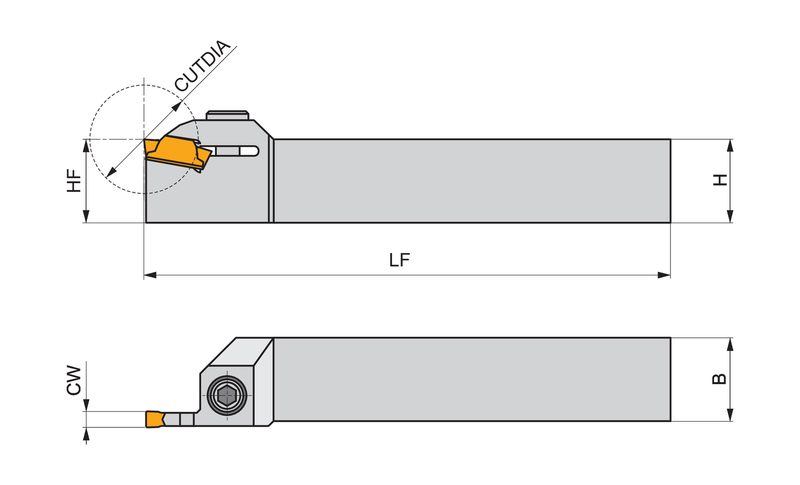

GFIR 2525 M 03 — Line Drawing PDF Download
