GFIR 2020 K 04
GFIR 2020 K 04
GFIR 2020 K 04

GFIR 2020 K 04

UGC DOR6757971
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$224.00 CAD - $224.00 CAD
$224.00 CAD
$224.00 CAD - $224.00 CAD
$224.00 CAD

Vendu en lots de : 1

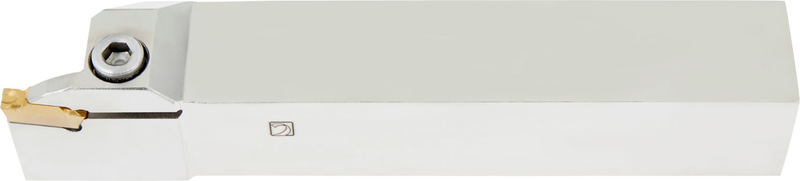

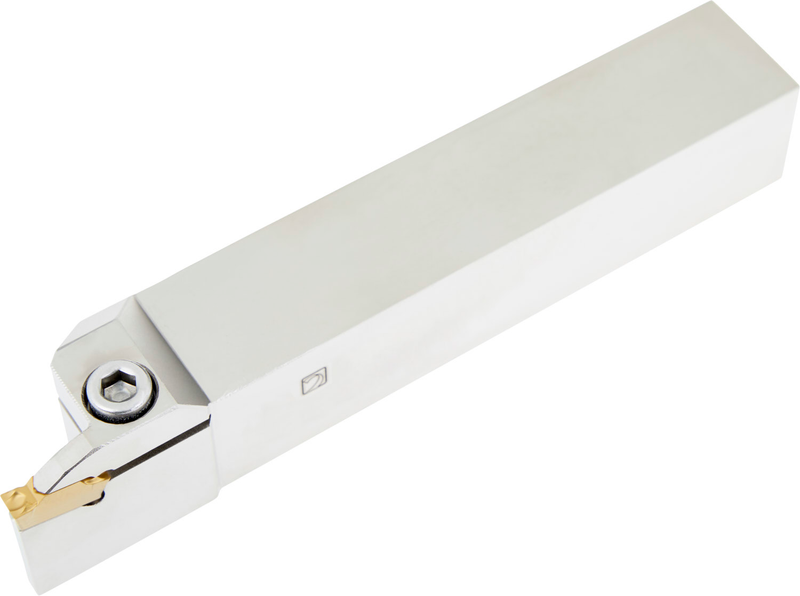

Outil de rainurage à bride supérieure pour plaquette double ou simple face de 16,4mm de long et 4mm de largeur de coupe (désignation LCM. 0416.. ), droitier avec plaquette parallèle à la queue pour un diamètre de tronçonnage maximum de 24mm, hauteur de la queue 20mm, largeur 20mm et longueur de l'outil 125mm pour le tournage de reproduction multidirectionnel, le rainurage radial peu profond et profond, le tournage de rainures radiales, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GFIR 2020 K 04
Product Number6757971
Product FamilyGFI(RL) EXT

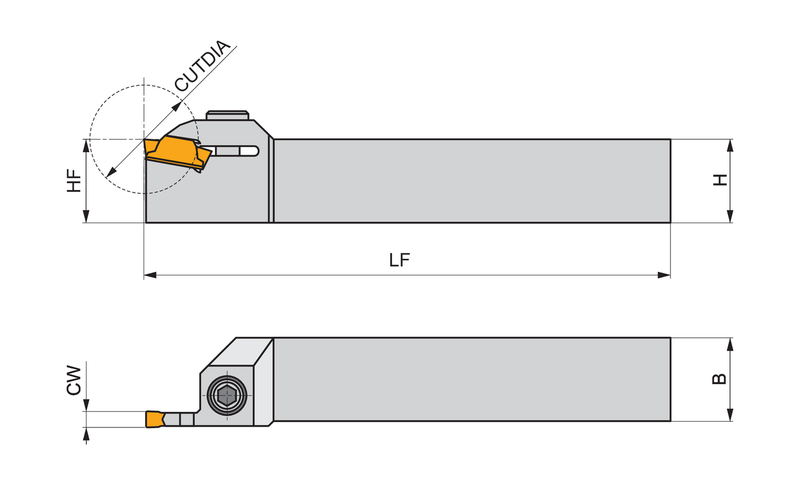

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757971
EAN3603602933270
File Type Download
GFIR 2020 K 04 — Line Drawing PDF Download
