80A05R-S90VC22C
80A05R-S90VC22C
80A05R-S90VC22C

80A05R-S90VC22C

UGC DOR6757988
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,156.00 CAD - $1,156.00 CAD
$1,156.00 CAD
$1,156.00 CAD - $1,156.00 CAD
$1,156.00 CAD

Vendu en lots de : 1

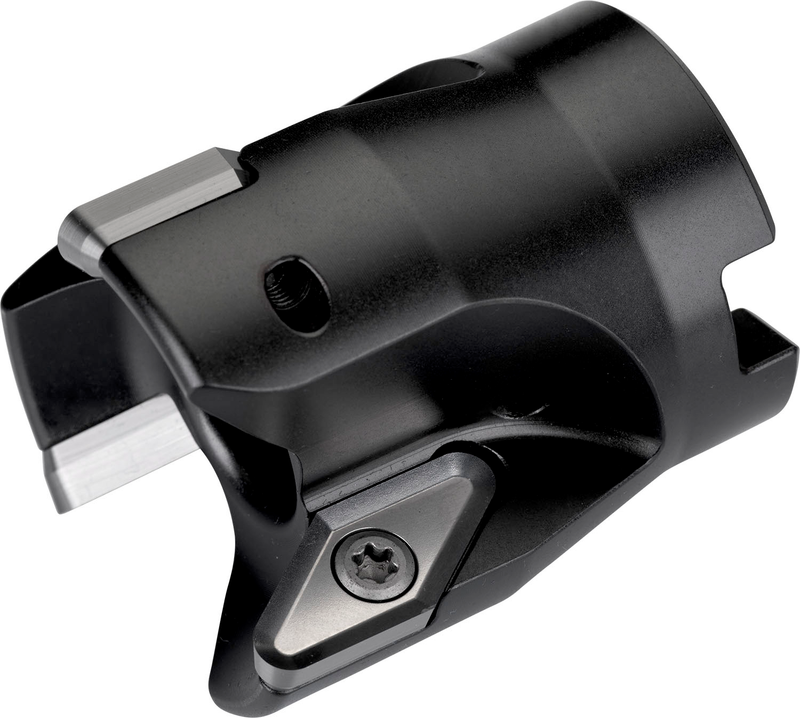

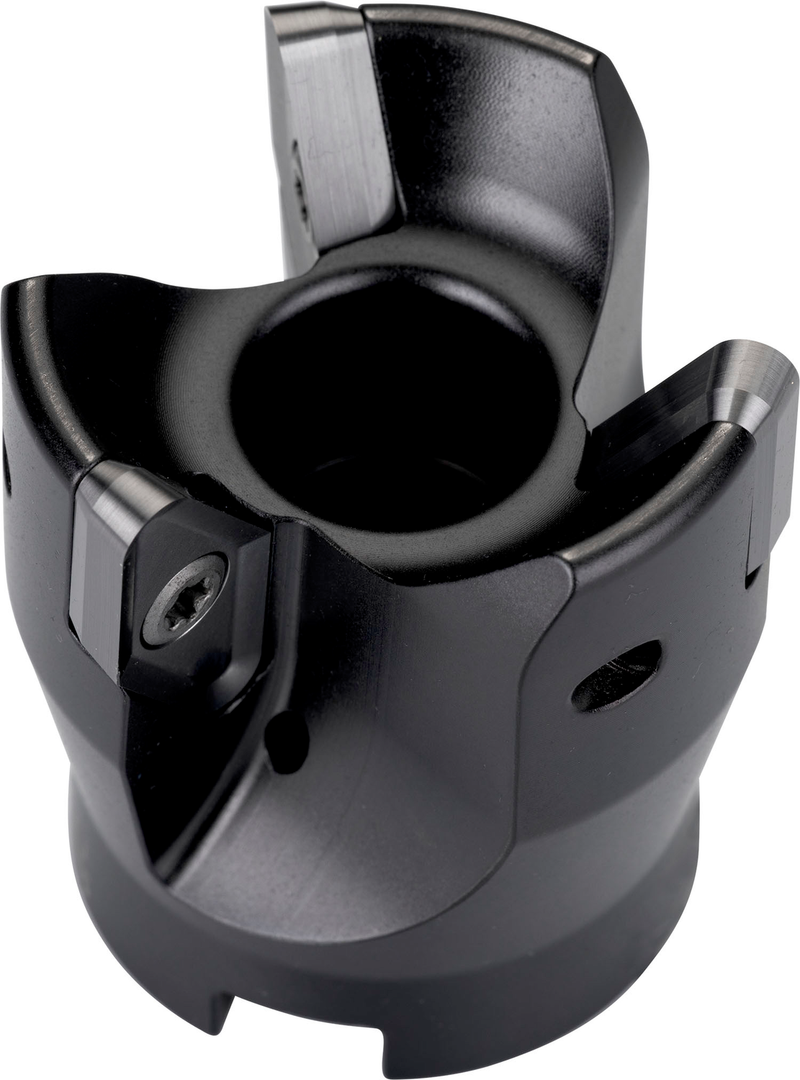

Fraise en bout à double géométrie positive utilisant 5 plaquettes simple-face VCGT 220530F-FA, diamètre de coupe 80 mm avec angle d'attaque de 90° et alésage de connexion de 27 mm selon DIN 8030-A, longueur de dépassement de 56 mm, arrosage central pour le fraisage hélicoïdal et le fraisage en plongée progressive avec une profondeur de coupe maximale de 3,0 (16,0) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A05R-S90VC22C
Product Number6757988
Product FamilySVC22C
Insert Geometry
Depth of Cut Max — mm (APMX)16.0 mm

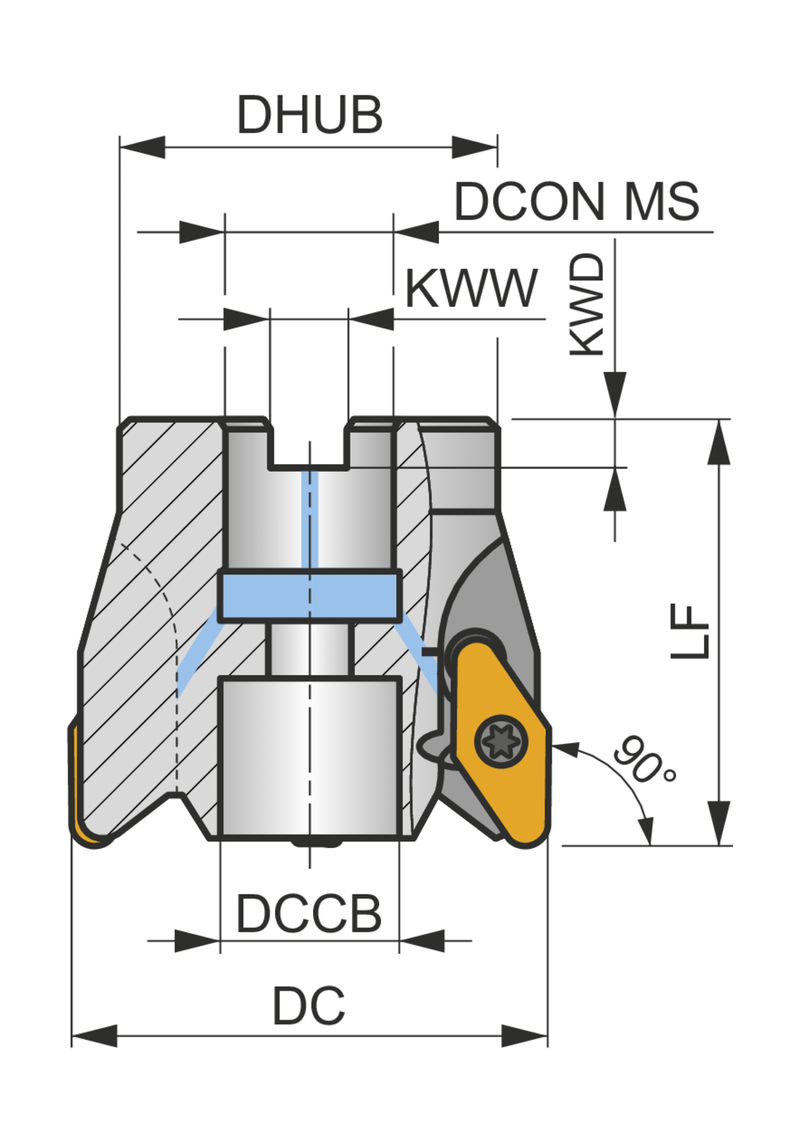

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)56.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSVC22C
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6757988
EAN3603602933447
File Type Download
80A05R-S90VC22C — 3D Model STP Download
80A05R-S90VC22C — Line Drawing PDF Download
