32A2R045A25-SVC22C
32A2R045A25-SVC22C
32A2R045A25-SVC22C

32A2R045A25-SVC22C

UGC DOR6757989
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$758.00 CAD - $758.00 CAD
$758.00 CAD
$758.00 CAD - $758.00 CAD
$758.00 CAD

Vendu en lots de : 1

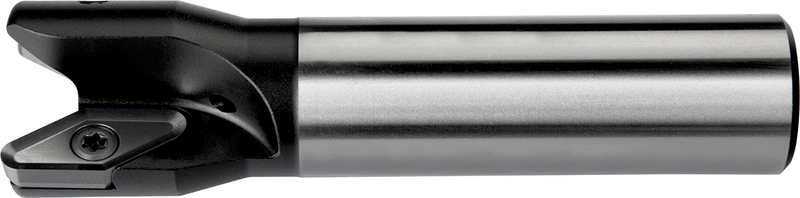

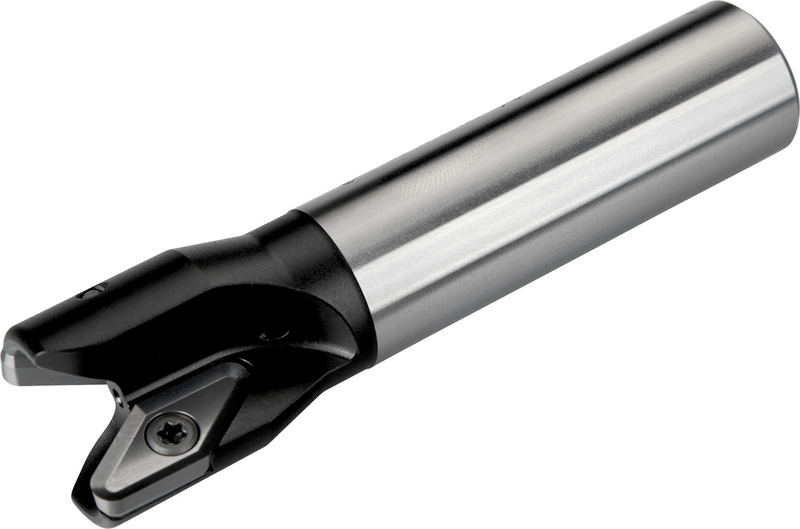

Fraise en bout à double géométrie positive utilisant 2 plaquettes unilatérales VCGT 220530F-FA, diamètre de coupe 32 mm avec un angle d'attaque de 90° et une queue cylindrique de 25 mm selon DIN 1835A, longueur totale de 120 mm, arrosage par l'intérieur pour le fraisage hélicoïdal et le fraisage en plongée progressive avec une profondeur de coupe maximale de 3,0 (16,0) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A2R045A25-SVC22C
Product Number6757989
Product FamilySVC22C
Insert Geometry
Depth of Cut Max — mm (APMX)16.0 mm

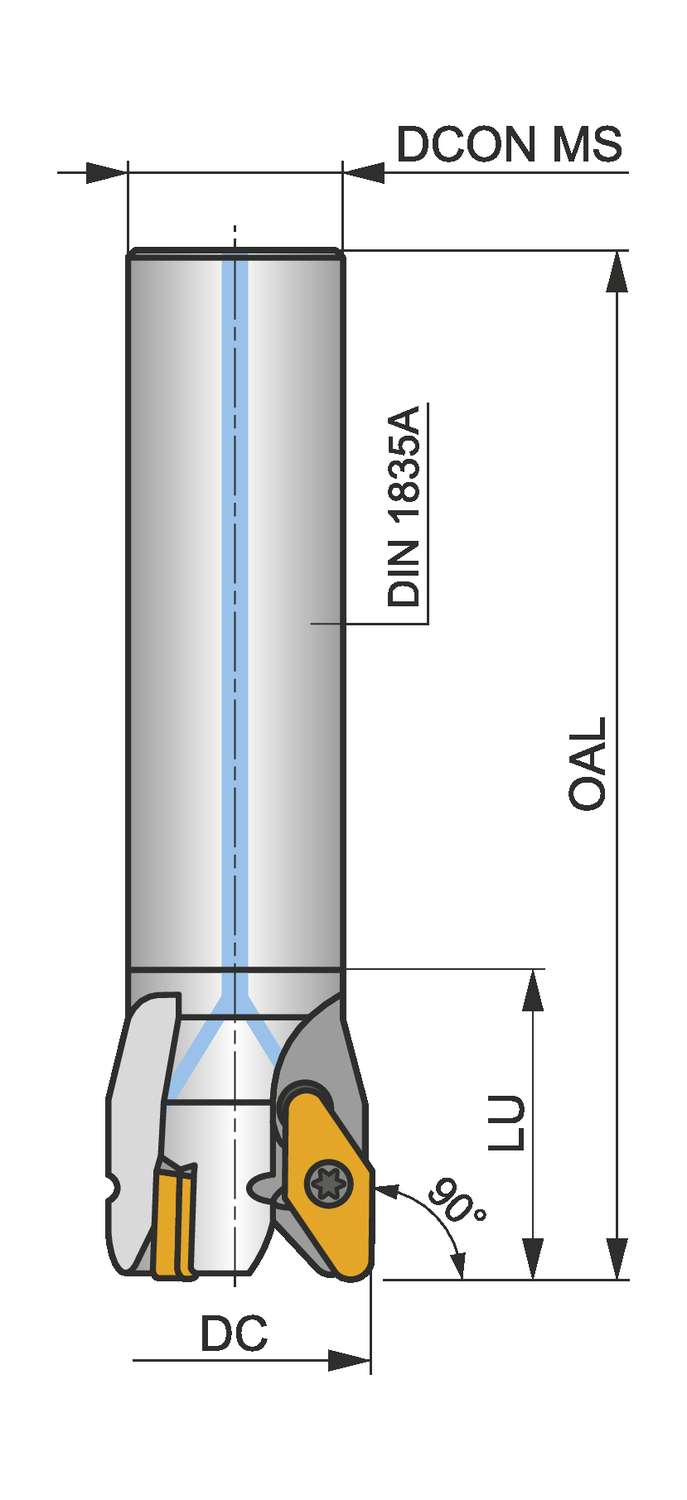

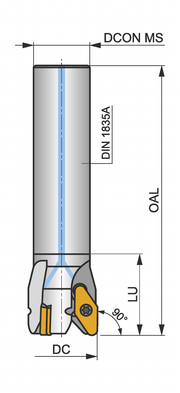

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)4.724"
Overall Length — mm (OAL)120.0 mm
Usable Length — mm (LU)45.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSVC22C
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6757989
EAN3603602933454
File Type Download
32A2R045A25-SVC22C — 3D Model STP Download
32A2R045A25-SVC22C — Line Drawing PDF Download
