A25T-DCLNR 09
A25T-DCLNR 09

A25T-DCLNR 09

UGC DOR6758095
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$429.00 CAD - $429.00 CAD
$429.00 CAD
$429.00 CAD - $429.00 CAD
$429.00 CAD

Vendu en lots de : 1

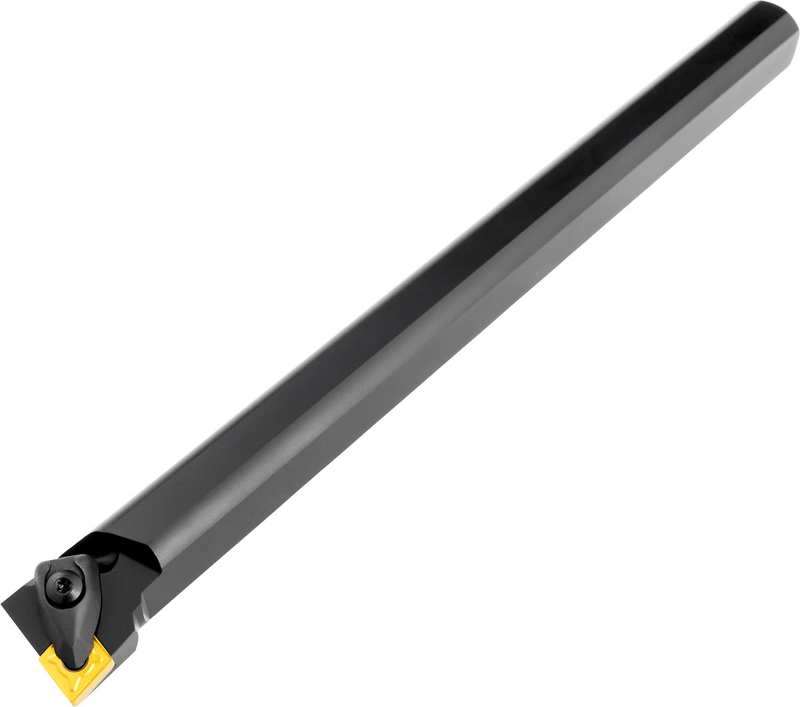

Barre d'alésage à double serrage pour plaquette négative en losange à 80° avec un diamètre de cercle inscrit de 9,525 mm, épaisseur de 3,18 mm (désignation ISO CN.. 0903.. ), coupe latérale et frontale à 95° à droite avec queue déportée, acier avec trou d'arrosage, 25 mm de diamètre x 300 mm de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A25T-DCLNR 09
Product Number6758095
Product FamilyDCLN(RL) INT

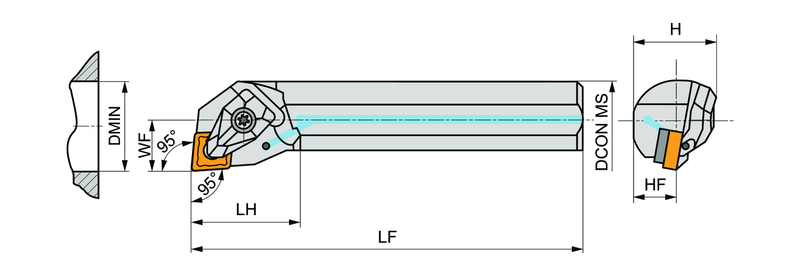

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.26"
Tool Information
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6758095
EAN3603602934413
File Type Download
A25T-DCLNR 09 — 3D Model STP Download
A25T-DCLNR 09 — Line Drawing PDF Download
