A16Q-GGER 0313
A16Q-GGER 0313
A16Q-GGER 0313

A16Q-GGER 0313

UGC DOR6758153
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$329.00 CAD - $329.00 CAD
$329.00 CAD
$329.00 CAD - $329.00 CAD
$329.00 CAD

Vendu en lots de : 1

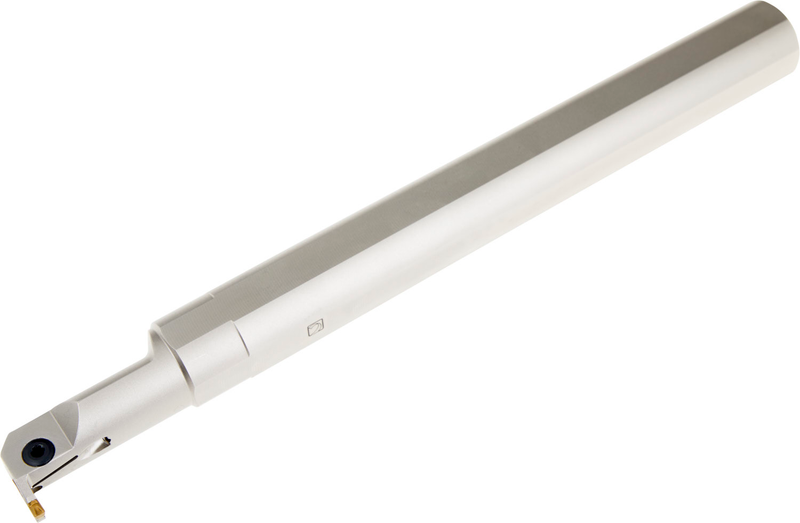

Barre de tronçonnage supérieure pour insert double ou simple de 12,6 mm de long avec largeur de coupe de 3 mm (désignation LCM. 0313.. ), à droite avec insert perpendiculaire à la queue pour une profondeur de tronçonnage maximale de 3 mm, diamètre de queue de 16 mm et longueur d'outil de 180 mm pour le tronçonnage et le tournage interne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16Q-GGER 0313
Product Number6758153
Product FamilyGG.(DRL) INT
Insert Geometry
Depth of Cut Max — in (APMX)0.1181"

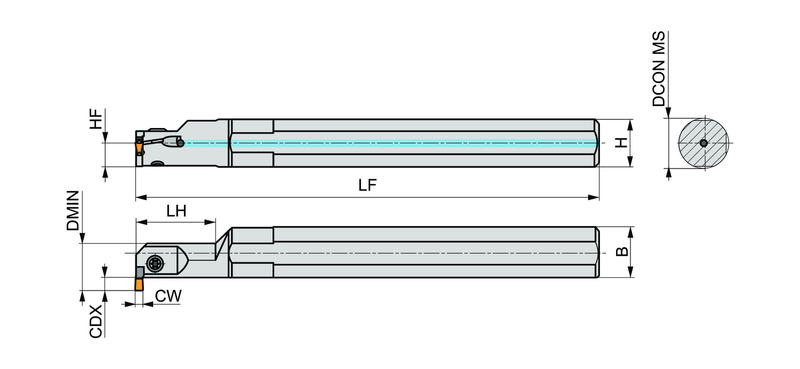

Dimensions
Functional Length — in (LF)7.087"
Functional Length — mm (LF)180.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.591 mm
Min. Bore Dia. — in (DMIN)0.63"
Tool Information
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6758153
EAN3603602934994
File Type Download
A16Q-GGER 0313 — Line Drawing PDF Download
